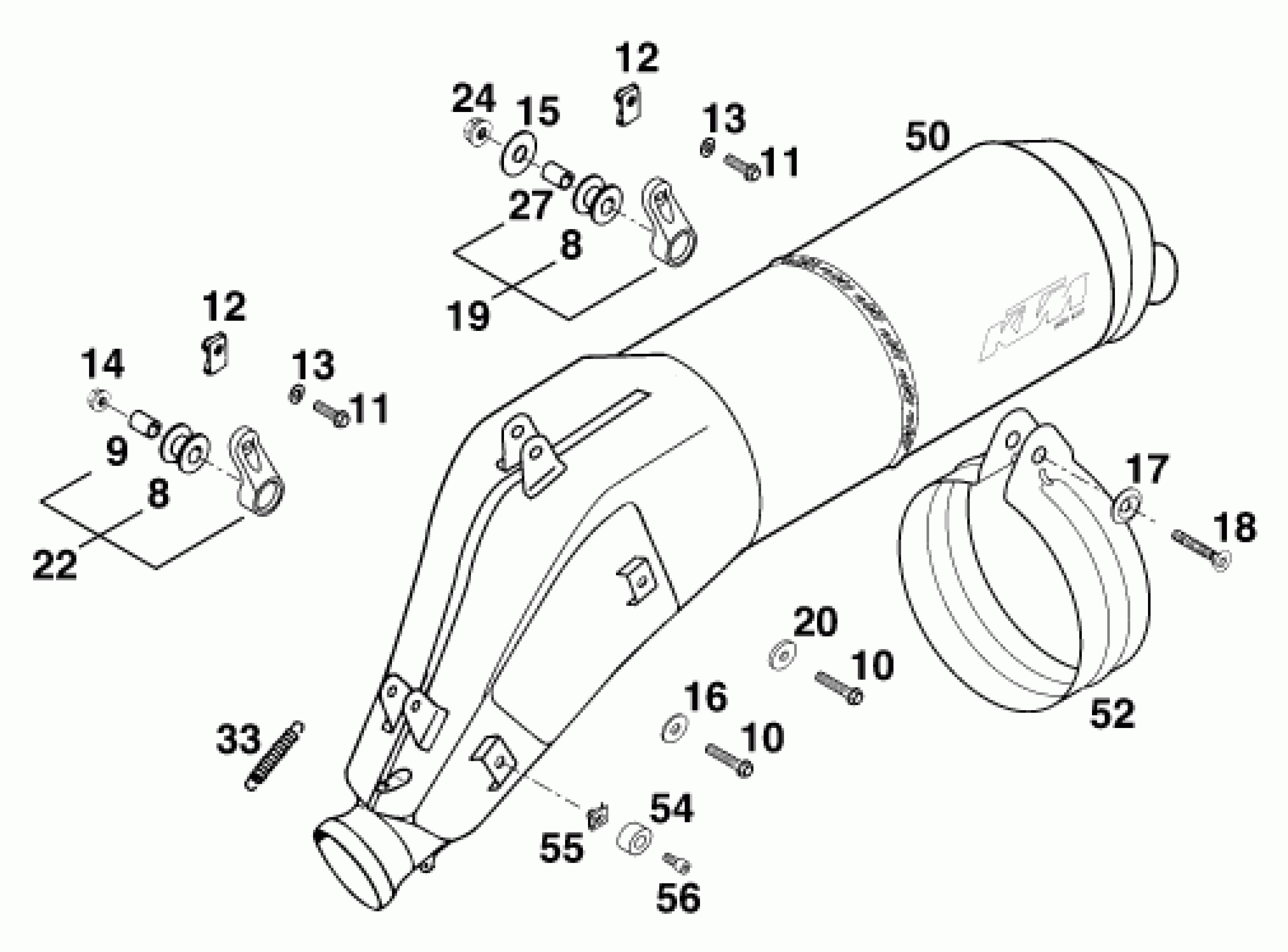

KTM 620 EGS-E 37KW 20LT ROT <1997> MAIN SILENCER Diagram

#

Description
Price

8

damp. component silicone grey

54305068100

$8.31

9

BUSHING 7X12X15,4

54305069000

$4.11

10

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

11

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

12

clip nut M6

54603048100

$4.11

13

spring washer DIN 137 B - 6

0137060003

$2.05

14

SELF LOCKING NUT M6

56509064000

Unavailable

15

WASHER DIN9021-A 8,4

0021080003

$1.49

16

Washer DIN9021-A 6.4

0021060003

$2.05

17

SPECIAL WASHER ALU 8 X 24 MM

58303061000

$5.23

18

FLAT HEAD SCREW DIN7991-M 8X35

0991080353

$2.61

19

SILENCER BRACKET CPL. SHORT

58305165144

$22.90

20

STEEL WASHER 6,4X17X3

50232050001

$5.23

22

SILENCER BRACKET CPL. SHORT'96

58305165244

$23.81

24

54310086000

Unavailable

27

Spacer bushing 8.4X12X16

56505069000

$4.11

33

TENSION SPRING L=55MM

51005063000

$5.98

50

SILENCER ''KTM HGS KAT'' '97

58305083000

Unavailable

52

RETAINING CLAMP F. SILENCER'96

58305161100

Unavailable

54

RUBBERBUFFER 8X17X10 SILENC'97

58405098000

$3.08

55

RANGE CHANGE MET. NUT M5 15460

54603048400

$3.08

56

AH SCREW DIN0912-M 5X12

0912050123

$2.05
