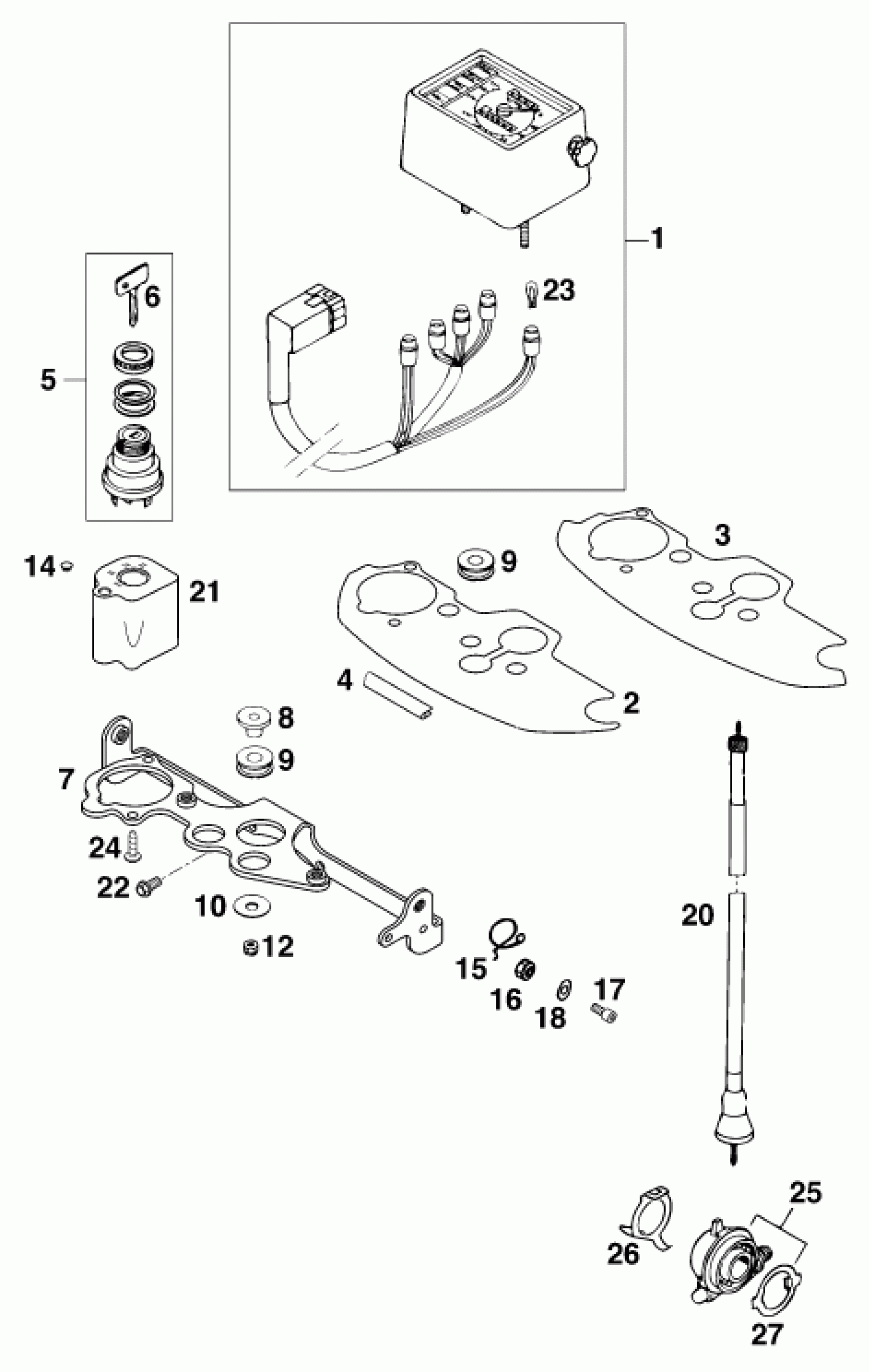

KTM 620 EGS-E 37KW 20LT ROT <1997 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

1

SPEEDOMETER NIPPON SEIKI KMH

51114065000

Unavailable

2

COVER FOR CONSOLE '97

58411084000

Unavailable

4

EDGE PROTECTOR PER METER

58312085100

Unavailable

5

IGNITION LOCK 7-P CEV

44611466000

Unavailable

6

KEY BLANK BLACK ''T'' GR

40011166200

Unavailable

7

MASK BRACKET '97

58411003000

Unavailable

8

BUSHING

54635036000

$1.49

9

RUBBER SLEEVE D=12MM

41001052000

$4.11

10

Washer DIN9021-A 6.4

0021060003

$2.05

12

Self lock. nut DIN985-M6-A2

0985060003

$2.05

14

PLUG

36111021000

$1.49

15

GUIDE FOR BRAKE HOSE

58011008000

$3.88

16

Self locking nut DIN 985 M5

0985050003

$2.05

17

AH SCREW DIN0912-M 5X12

0912050123

$2.05

18

WASHER DIN0125-A 5,3

0125050003

$1.49

20

SPEEDOM.CABLE M12/M12 980MM

56511188500

$35.60

21

HOUSING FOR IGNITION LOCK '97

58411066050

Unavailable

22

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

23

BULB 12V 1,2W (W2X4,6D)

49111425000

Unavailable

24

SPECIAL SCREW Z 6,0X20

0016060203

$1.49

25

SPEEDOMETER DRIVE 748217(3,0)

58111052100

$39.50

26

BRACKET FOR SPEEDOMETER DRIVE

58111052150

$4.97

27

DRIVING DOG F.SPEEDOM.DRIVE'92

58111053100

$6.00
