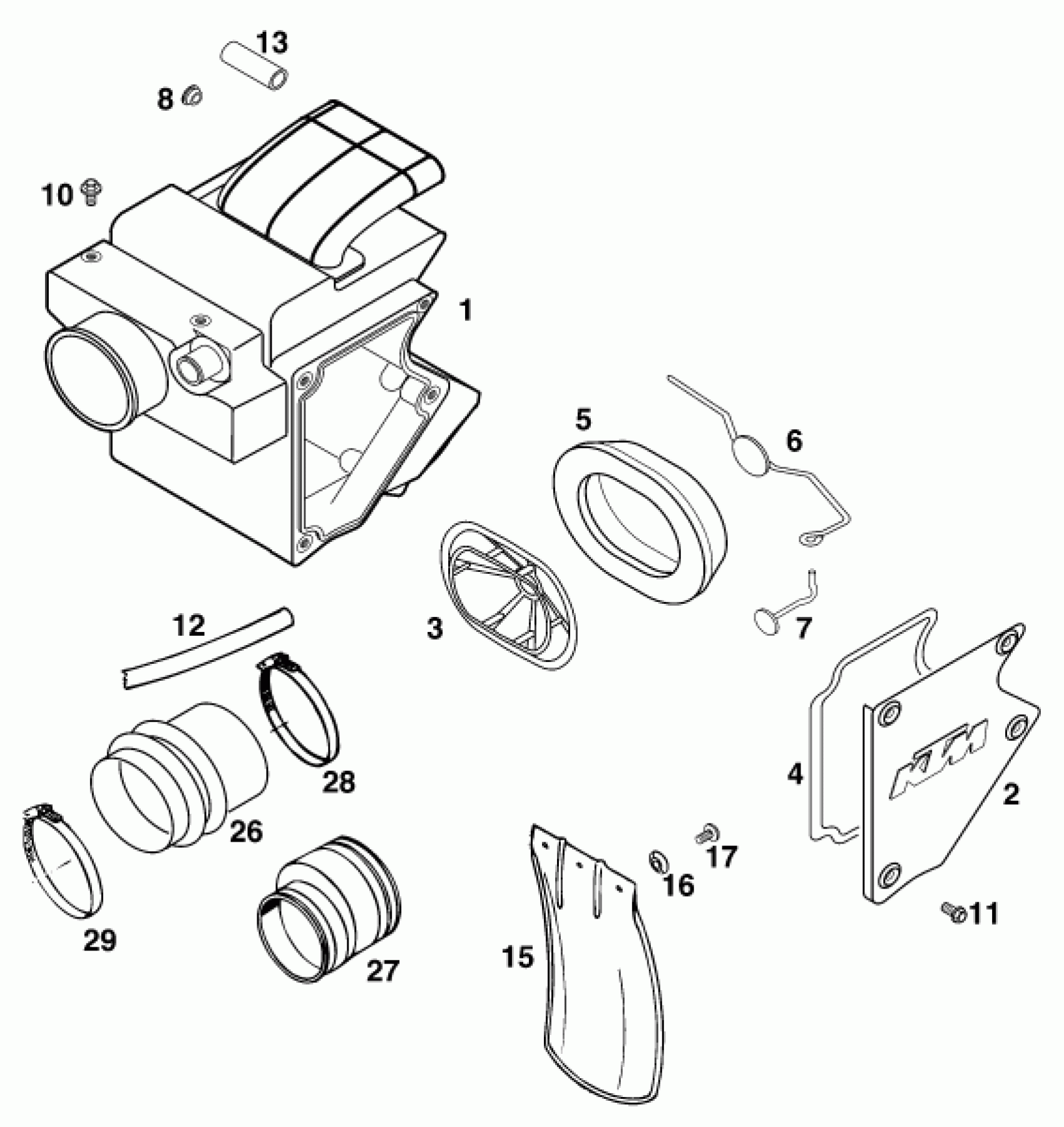

KTM 620 EGS-E 37KW 20LT ROT <1997> AIR FILTER Diagram

#

Description
Price

1

FILTER BOX

58406001100

Unavailable

2

FILTER BOX COVER EGS-E '97

58406003000

$7.21

3

FILTER CARRIER '97

58406016000

$13.64

4

GASKET FOR FILTER BOX COVER

58406090000

$12.52

5

FILTERELEMENT E-STARTER '

58406015000

Unavailable

6

HOLDING HANGER FOR FILTER '

58406017000

Unavailable

7

HOOK F.HOLDING HANG.FILTER '97

58406017050

$7.38

8

PLUG

36111021000

$1.49

10

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

11

HH COLLAR SCREW M 5X12 WS=8

0015050123

$3.08

12

HOSE 10X14 PER METER

57005020001

Unavailable

13

HOSE 10X14 PER METER

57005020001

Unavailable

15

SPLASH PROTECT.FOR FILTER BOX

54606010000

$18.25

16

BUCKET

72210079000

$3.00

17

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

26

AIR FILTER BOOT 540/620/640

58006026500

$14.95

27

AIR FILTER BOOT 400/640 LC4'97

58406026000

$17.94

28

HOSE CLAMP 60-80MM

55006028000

$4.11

29

HOSE CLAMP 50-70MM

51006027000

$6.07
