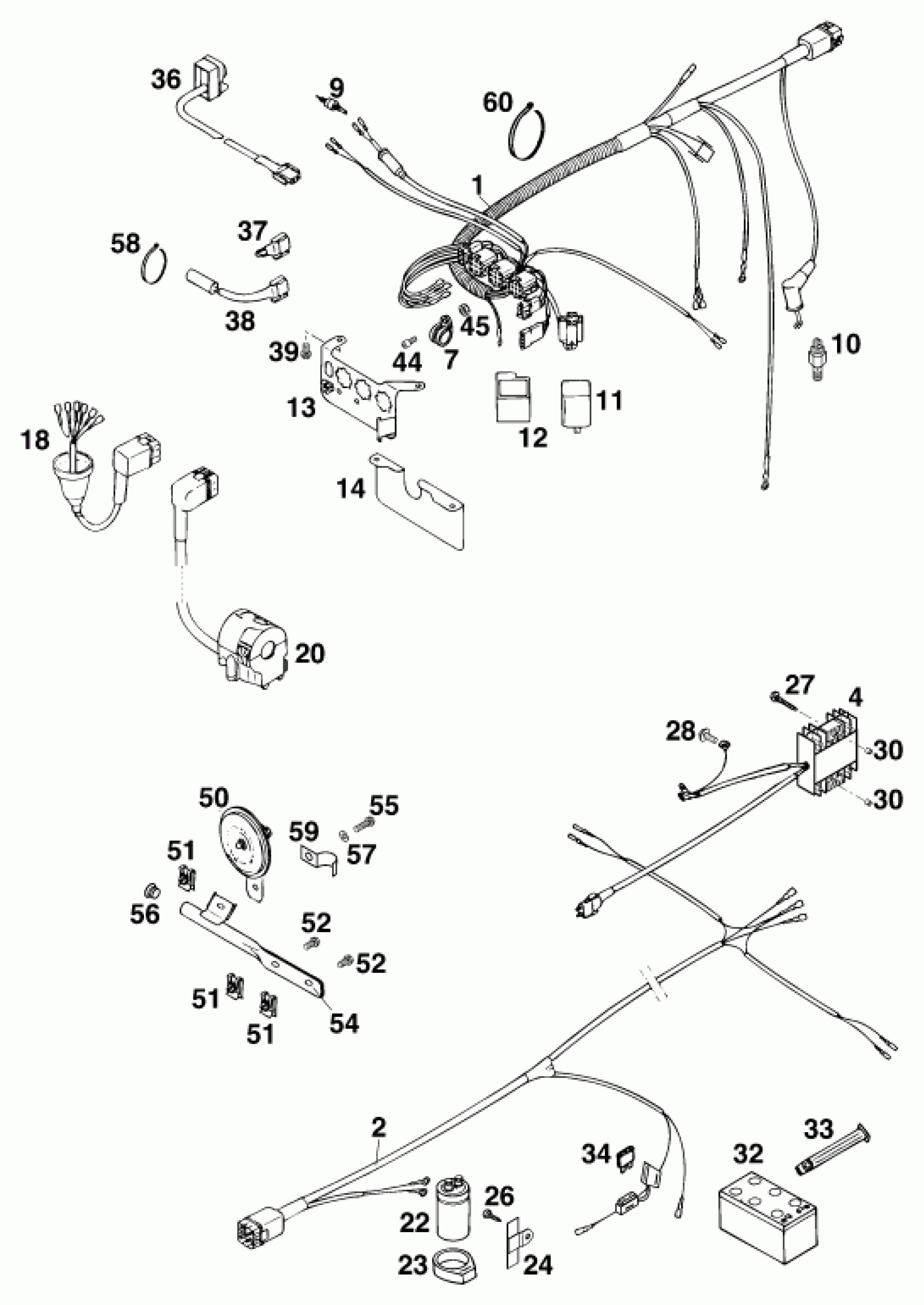

KTM 620 EGS 37KW 20LT ROT <1997> WIRING HARNESS Diagram

#

Description
Price

0

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

1

WIRING HARNESS EGS '97

58311475300

Unavailable

2

* WIRING HARNESS REAR '93

58311476000

Unavailable

4

VOLT. REGULATOR SHINDENGEN 12V

58311034200

$116.44

7

CLAMP RSGU 15/12

49007439000

$5.23

9

FRONT BRAKE LIGHT SWITCH

51011050000

$19.91

10

REAR BRAKE LIGHT SWITCH '

50311051000

Unavailable

11

FLASHER UNIT HELLA BRK '96

44611207100

$50.22

12

* FLASHER LIGHT BRACKET

54511046000

Unavailable

13

CONNECTOR SUPPORT '93

58311083000

Unavailable

14

COVER CONNECTOR SUPPORT '93

58311083051

Unavailable

18

* WIRING HARNESS-IGNITION LOCK

58311077000

Unavailable

20

LIGHT SWITCH KPL. CEV '94

58311570000

Unavailable

22

CONDENSATOR 25V, 10.000 MF

49111435100

$57.59

23

CAPACITOR BRACKET

54511048000

$4.33

24

BRACKET FOR CAPACITOR

54611448000

Unavailable

26

SHEET MET.SCR.DIN7981- 5,5x19

0981550193

$1.49

27

SHEET MET.SCR.DIN7981- 5,5X39

0981550393

$1.49

28

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

30

BUSHING 6,5 X 12 X 9

56535035000

Unavailable

32

BATTERY 12V 1,2AH

54511008000

Unavailable

33

RUBBER BAND

54611186000

$5.23

34

FUSE 10 A

58011109010

$2.05

36

SHORT CIRCUIT SWITCH 550MM '94

58311071100

$30.67

37

* DIODE CONNECTOR '93

58311090000

Unavailable

38

* DIODE WITH CONNECTOR '93

58311030000

Unavailable

39

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

44

AH SCREW DIN0912-M 5X12

0912050123

$2.05

45

Self locking nut DIN 985 M5

0985050003

$2.05

50

DC HORN 12V NIKKO

54511060100

Unavailable

51

clip nut M6

54603048100

$4.11

52

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

54

BRACKET FOR HORN '93

58307021000

$12.42

55

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

56

Plug SFL16

50210086000

$3.08

57

WASHER DIN0125-A 6,4

0125060003

$1.49

58

* CABLE TIE 200 X 5MM T50 R/SF

44011276200

Unavailable

59

CLAMP FOR WIRING HARNESS

50211096000

Unavailable

60

Cable tie 200/4.6mm black

44011076200

Unavailable
