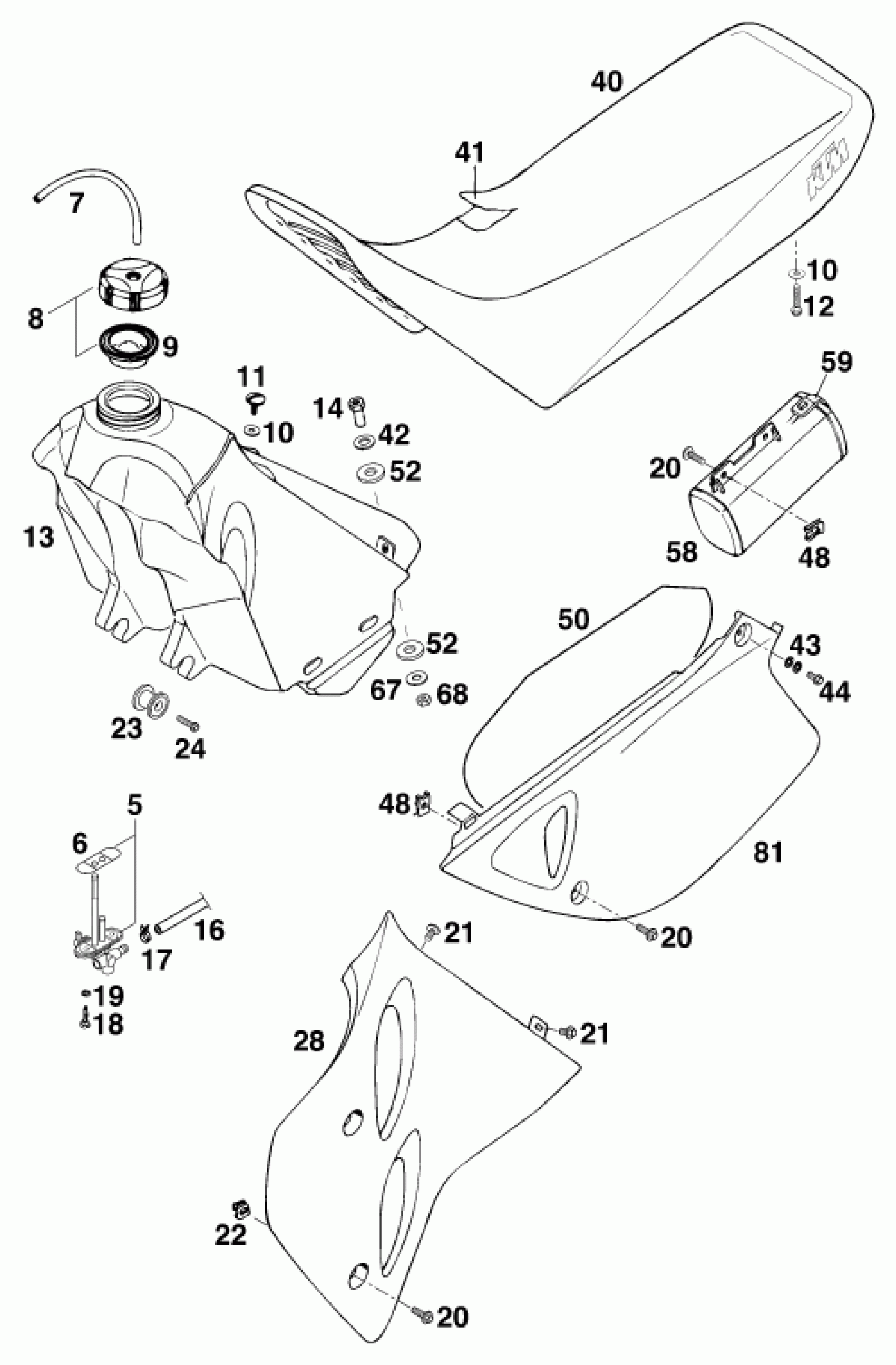

KTM 620 EGS 37KW 20LT ROT <1997 TANK, SEAT Diagram

#

Description
Price

0

* SIDE COVER WHITE R/S '93

58308042000

Unavailable

8

TANK CAP CPL. LARGE

56007008144

$30.72

9

GASKET FOR TANK CAP

56007009100

$6.38

10

WASHER DIN0125-A 6,4

0125060003

$1.49

11

OVAL HEAD SCREW M6X15

58007044000

$4.35

12

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

13

* FUEL TANK 11,3 LITER '97

58307013400

Unavailable

14

SPECIAL NUT M8

58307014000

$6.26

23

TANK BUSHING CPL. 12 X 34 X 25

58307113250

$10.20

24

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

40

SEAT BLACK/RED WIDE '96

58307040900

Unavailable

41

% SEAT COVER BLACK/RED

58307040950

Unavailable

42

WASHER 10,5 X 25 X 1,5

58307019000

$2.05

43

Pair of washers M6 NORDLOCK

50233041000

$4.11

44

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

48

clip nut M6

54603048100

$4.11

50

HEAT PROTECTOR

58308041050

$12.86

52

INSOLATE WASHER 12X28X3

51005067100

$2.05

58

TOOL BOX CPL. '92

58012058000

$35.48

59

RUBBER FOR TOOL BOX '92

58012058050

$6.98

67

WASHER DIN9021-A 8,4

0021080003

$1.49

68

Hexagon nut DIN934 M8

0934080003

$2.05

81

* SIDE COVER WHITE L/S '93

58308041000

Unavailable
