TANK, SEAT

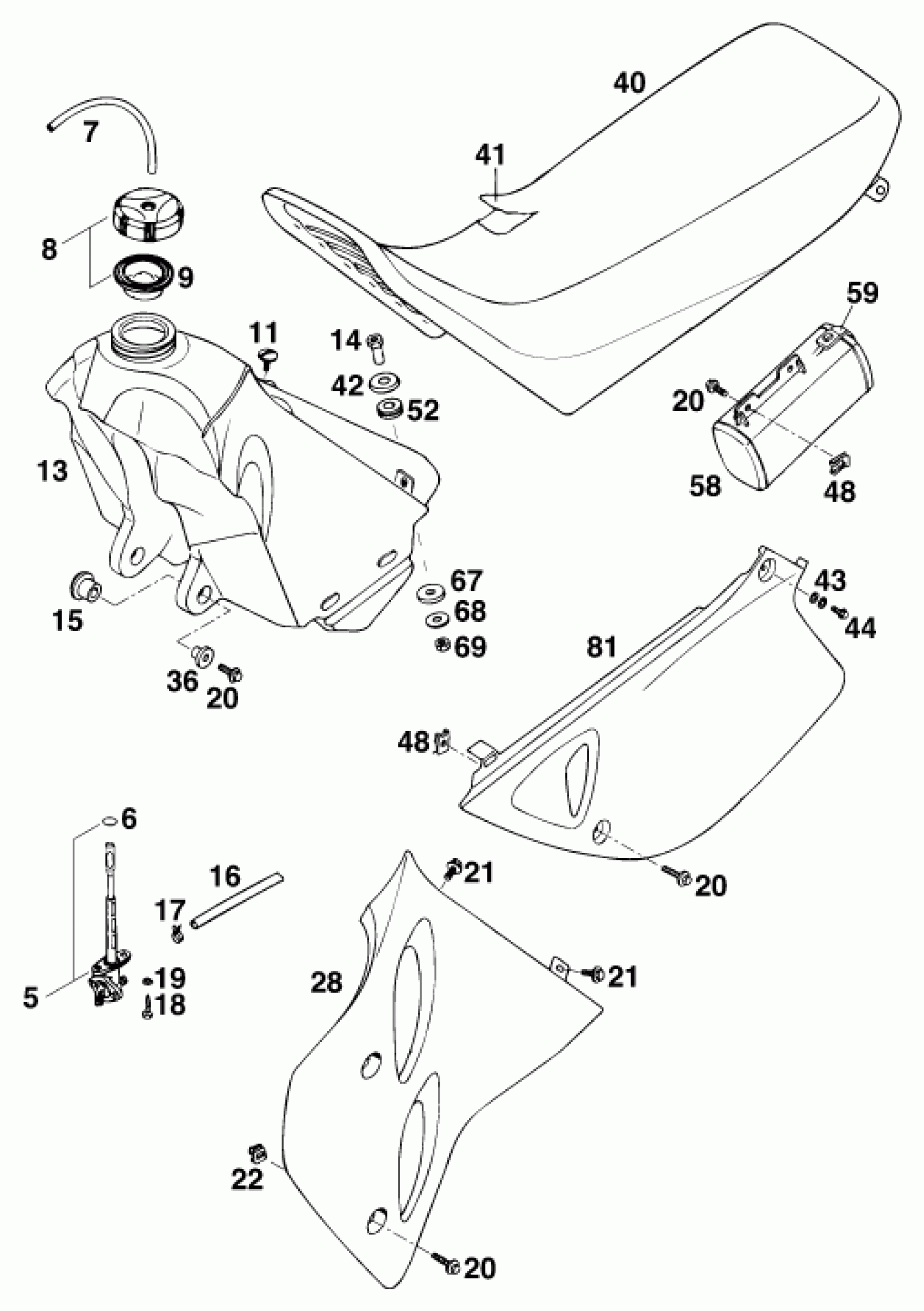

KTM 620 E-XC DAKAR 20KW/20lt <1995 TANK, SEAT Diagram
#
0
* SIDE COVER WHITE R/S '93
58308042000
Unavailable
0
SPOILER WHITE R/S '93
58335029000
Unavailable
5
FUEL COCK CPL. OFF-ON-RES
58307105200
$44.68
6
O-RING 11X1,8 NBR 70
55007006200
$2.05
7
PVC-HOSE 6X9 MM PER METER
31007107001
Unavailable
8
TANK CAP CPL. LARGE
56007008144
$30.72
9
GASKET FOR TANK CAP
56007009100
$6.38
11
OVAL HEAD SCREW M6X17
54507011000
$4.22
13
% FUEL TANK 11,3LT. LC4'93
58307013000
Unavailable
14
SPECIAL NUT M8
58307014000
$6.26
15
rubber bushing
56401040000
$5.23
16
FUEL HOSE VITON 7X2MM
58007016001
Unavailable
17
YDNAC-CLAMP 10107 10MM
58007117000
$3.08
18
HH S.MET.SCREW DIN7676- 5,5X
0676550223
$2.05
19
TOOTH LOCK WASH. DIN6797-J 5,3
0797050003
$1.49
20
HH COLLAR SCREW M 6X20 WS=8
0014060203
$2.05
21
HH COLLAR SCREW M 6X10 WS=8
0014060103
$3.08
22
SNAP-NUT HOLDER M6 KP142
50235033300
$4.11
28
SPOILER WHITE L/S '93
58335028000
Unavailable
36
BUSHING
54635036000
$1.49
40
SEAT SX,SC CPL. EXC'95
58307040300
Unavailable
40
SEAT WIDE EGS '95
58307140200
$187.52
40
SEAT WIDE EGS '95
58307140300
Unavailable
40
SEAT NARROW EGS '95
58307240200
Unavailable
41
SEAT COVER SX,SC,EXC
58307040350
$64.16
41
% SEAT COVER WIDE EGS
58307140250
Unavailable
41
SEAT COVER WIDE EGS
58307140350
Unavailable
41
* SEAT COVER NARROW EGS
58307240250
Unavailable
42
WASHER 10,5 X 25 X 1,5
58307019000
$2.05
43
Pair of washers M6 NORDLOCK
50233041000
$4.11
44
HH COLLAR SCREW M 6X12 WS=8
0015060123
$3.08
48
clip nut M6
54603048100
$4.11
52
RUBBER SLEEVE D=12MM
41001052000
$4.11
58
TOOL BOX CPL. '92
58012058000
$35.48
59
RUBBER FOR TOOL BOX '92
58012058050
$6.98
67
INSOLATE WASHER 8,5X28X3
51005067000
Unavailable
68
WASHER DIN9021-A 8,4
0021080003
$1.49
69
Hexagon nut DIN934 M8
0934080003
$2.05
81
* SIDE COVER WHITE L/S '93
58308041000
Unavailable
