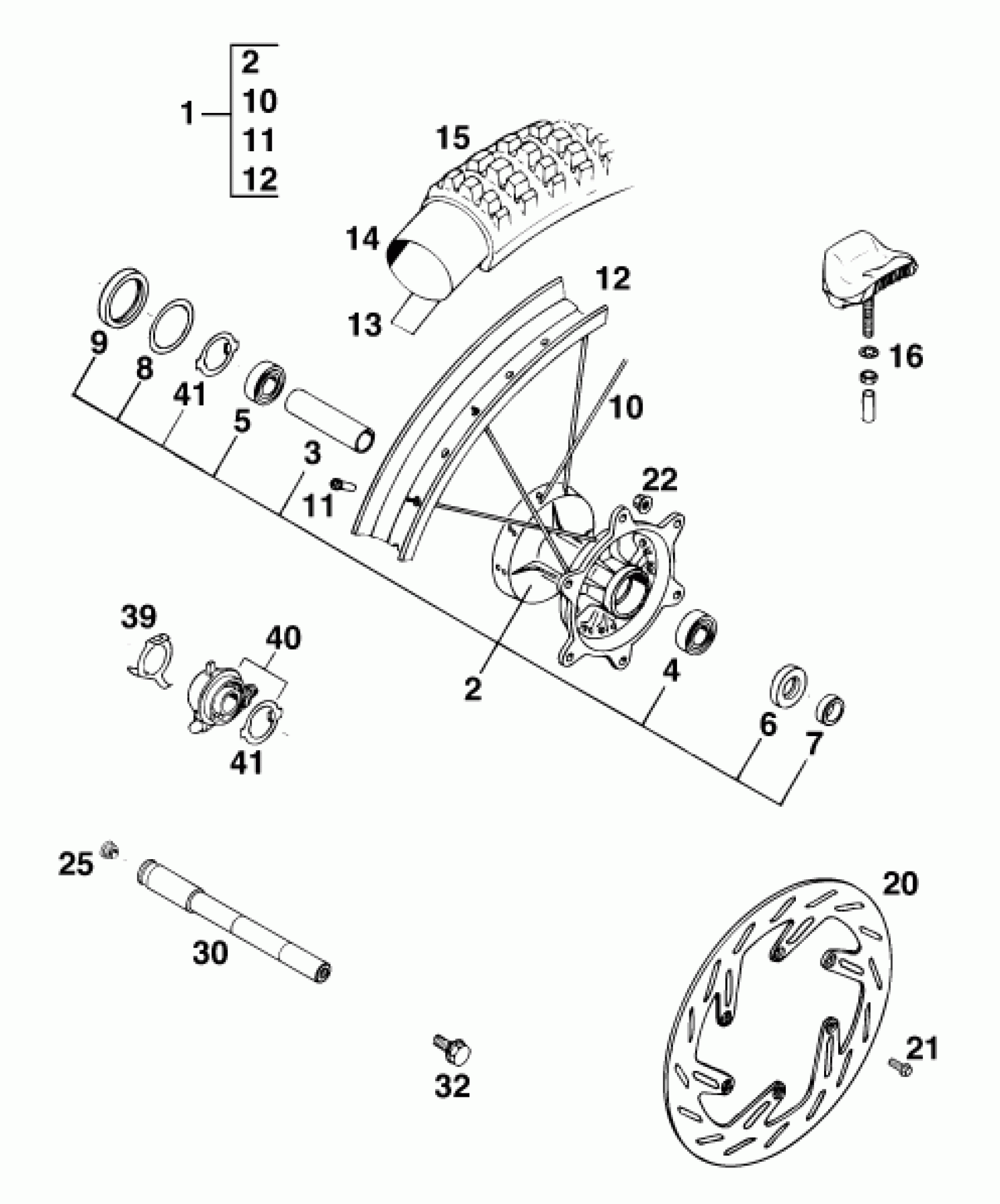

KTM 620 E-XC DAKAR 20KW/20lt <1995> FRONT WHEEL Diagram

#

Description
Price

1

FRONT WHEEL 1,6X21''EXCEL SX'9

54609001544

$456.37

2

FRONT WHEEL HUB SILVER SX'94

56509010944

Unavailable

3

BUSHING SPACER TUBE 17,5X22X82

56509011400

$17.26

4

GR.BALL BEAR. 6003-2RSH/C3HMTF

0625060037

$30.19

6

SHAFT SEAL RING 25X35X7 BSL

0760253571

Unavailable

7

SPACER RING 17X25X7,5

54609051000

Unavailable

8

SPACER BUSHING 17X25X15

54609051100

$6.55

10

SPOKE M5X234,5 MM 165 DEGREE

54609071100

Unavailable

11

STEEL NIPPLE M5

56509072000

Unavailable

12

FRONT RIM 1,6X21'' EXCEL AL4

54609070100

$250.66

13

RIM BAND 21''

51009073000

Unavailable

15

* TYRE 80/100-21" 51M D 701

54609074300

Unavailable

16

RIM LOCK VM1 (1,60'')

51009100100

$17.57

20

FRONT BRAKE DISK D=260MM

56509060700

$223.83

21

AH SCREW DIN6912 M6x16

0912060166

$2.05

22

SELF LOCKING NUT M6

56509064000

Unavailable

25

PLUG SFL13

55009086000

$2.05

30

WHEEL SPINDLE WP L=213MM

58009081600

$72.85

32

HH COLLAR SCREW M10X20 WS=17

49032011000

$5.88
