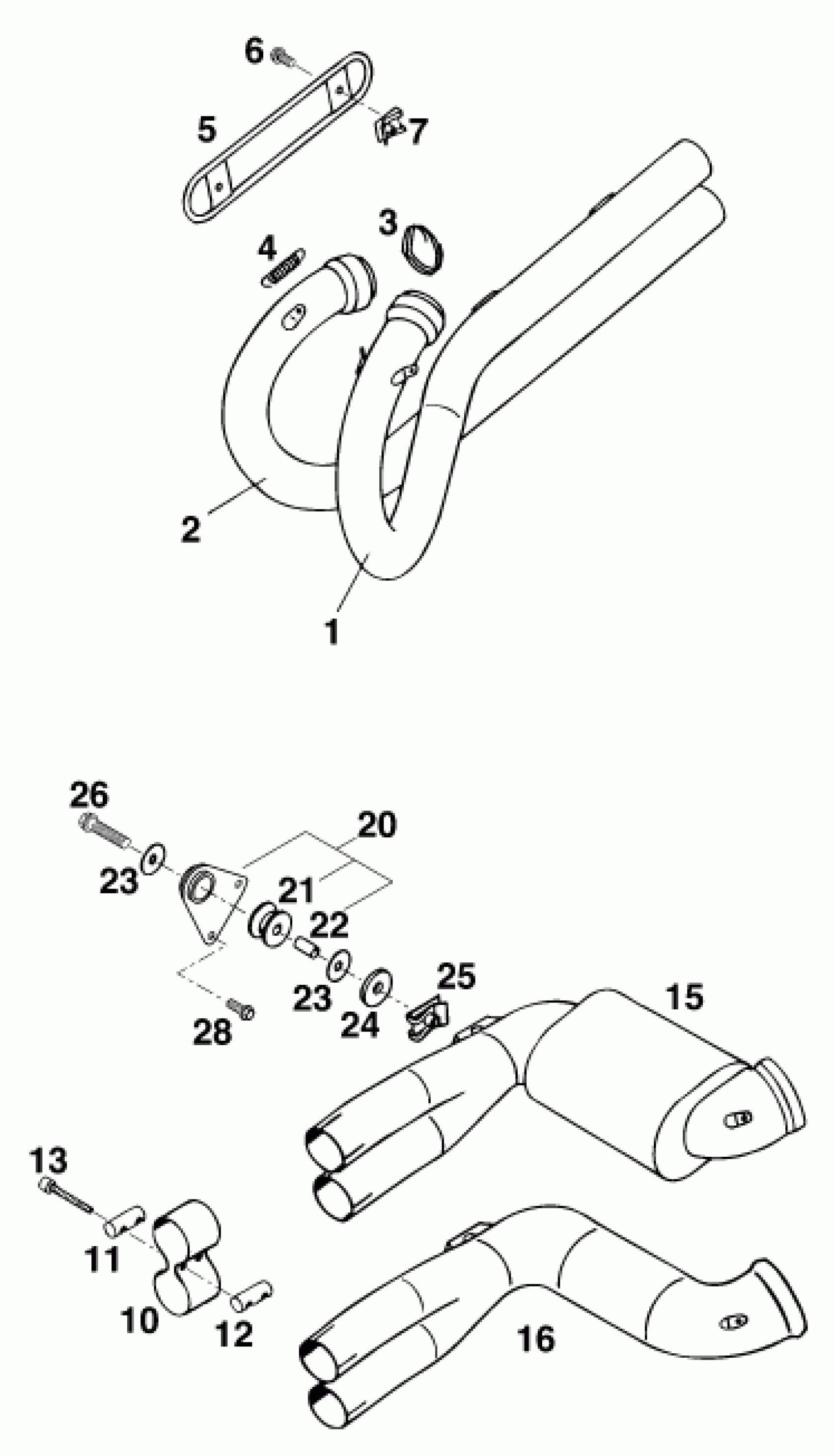

KTM 620 E-XC 20KW/20lt '94 <1994 EXHAUST SYSTEM Diagram

#

Description
Price

1

EXHAUST PIPE L/S "575" LC4'93

57505051000

Unavailable

1

EXHAUST PIPE L/S "KTM *575L"

57505051100

Unavailable

1

EXHAUST PIPE L/S "583" LC4'93

58305051000

Unavailable

1

EXHAUST PIPE L/S WHITE LC4'94

58305051100

Unavailable

2

EXHAUST PIPE R/S "575" LC4'93

57505151000

Unavailable

2

EXHAUST PIPE R/S "KTM 575 R"

57505151100

Unavailable

2

EXHAUST PIPE R/S "583" LC4'93

58305151000

Unavailable

2

EXHAUST PIPE R/S "KTM 583 R"

58305151100

Unavailable

4

RETURN SPRING L=38 MM

54309036000

$5.23

5

HEAT PROTECTOR BLACK LC4'93

58305050000

Unavailable

5

HEAT PROTECTOR CHROME WHITE'94

58305050100

Unavailable

6

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

7

clip nut M6

54603048100

$4.11

10

PIPES CLAMP BLACK

58005151054

Unavailable

10

* CLAMP WH CHROMIUM-PLATED'94

58005151154

Unavailable

11

HH SCREW DIN0933-M 6X35

0933060353

$1.49

12

WASHER DIN0125-A 6,4

0125060003

$1.49

13

SELF LOCKING NUT M 6 COPPER

51010086000

$1.57

15

PRESILENCER 4STR. LC4'93

58305075000

Unavailable

16

* PRESILENCER TUBE WHITE '94

58305175000

Unavailable

16

PRESILENCER TUBE BLACK

58305175100

Unavailable

20

EXHAUST BRACKET CPL SILICON

56505065144

$31.87

21

RUBBER BLACK F.DAMPING BRACKET

54305068000

$5.92

21

damp. component silicone grey

54305068100

$8.31

22

Spacer bushing 8.4X12X16

56505069000

$4.11

25

HH SCREW DIN931 M8x30

0931080303

Unavailable

26

HH SCREW DIN931 M8x35

0931080353

Unavailable

27

washer DIN 125 A -8.4

0125080003

$1.49

28

TOOTHLOCK WASHER DIN6797-J 8,4

0797080003

$1.49

29

WASHER DIN9021-A 8,4

0021080003

$1.49

30

INSOLATE WASHER 8,5X28X3

51005067000

$2.05

31

RANGE CHANGE METAL NUT M8

54603048000

$4.11

32

54310086000

Unavailable
