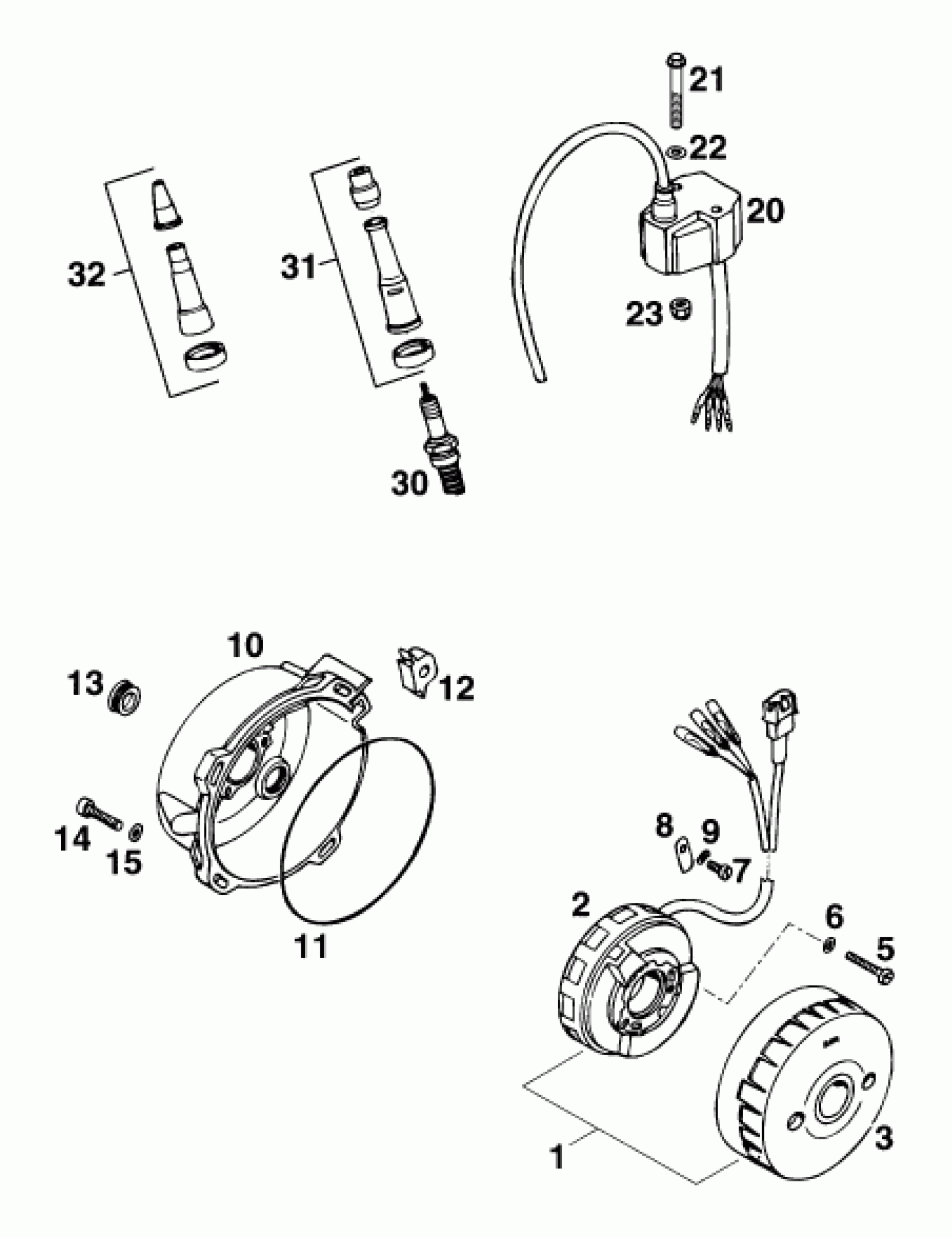

KTM 620 DUKE 37KW '94 <1994> IGNITION SYSTEM Diagram

#

Description

Price

1

IGNITION SEM K11/60G-08 LEFT

58031002100

Unavailable

2

STATOR LOOSE ''13''

58031002050

$350.30

3

ROTOR LOOSE

58031002051

$147.81

5

*CYLINDER SCREW DIN0084-M 5X30

0084050303

Unavailable

6

WASHER DIN0125-A 5,3

0125050003

$1.49

7

SPECIAL SCREW DIN7500-M 5X 8

0500050083

Unavailable

8

RETAINING PLATE

50031003000

$2.61

9

* SPRING WASHER DIN0137-B 5

0137050003

Unavailable

10

IGNITION COVER BLACK

58030002200

$164.32

11

O-RING 126,72X1,78 B70

0770020490

$4.11

12

RUBBER SLEEVE

58031004000

$4.81

13

PLUG M18X1,5

58030002050

$6.96

14

AH SCREW DIN0912-M 6X25

0912060253

$2.05

15

WASHER DIN0125-A 6,4

0125060003

$1.49

20

* IGNITION COIL TM 14-05

58031006000

Unavailable

21

HH SCREW DIN931 M6x45

0931060453

$1.49

22

WASHER DIN0125-A 6,4

0125060003

$1.49

23

Self lock. nut DIN985-M6-A2

0985060003

$2.05

30

SPARK PLUG NGK D8EA

58031093005

$8.50

32

* SPARK PLUG CONNEC.103000 MER

58031410044

Unavailable
