Description

Price

1

ENGINE CASE CPL.W.BEARINGS '97

58530000144

Unavailable

2

CYLINDER 102MM 660 LC4'95

58530005000

Unavailable

2

% CYLINDER 101MM 640 LC4'

58530005100

Unavailable

3

58536020000

Unavailable

3

CYLINDERH.CPL."6D"A=84,8MM '95

58536020100

Unavailable

3

* CYLINDERH.CPL."6D28"620/640L

58536120000

Unavailable

4

CRANKSHAFT CPL. 640/660 LC4'95

58530018000

Unavailable

5

58530007000

Unavailable

6

CONNECTING ROD REPAIR SET LC

58530015044

Unavailable

8

SILICON GASKET THREE-BOND

309098

$28.88

9

LOCTITE 243 BLUE 5 ML

6899785

$28.04

12

CYLINDER HEAD GASKET 102,3MM

58530036000

$61.61

13

DOWEL 9,8 X 7 X 10

49030090000

$2.05

15

PISTONRINGSET 102MM CPL. '96

58530031044

Unavailable

16

PISTON PIN 22 X 13,5 X 63,5

58030833000

Unavailable

17

CIRCLIP C 22 X 1,2

58030874000

Unavailable

18

STUD DIN0835-M10X50

0835100503

$3.84

20

GASKET SET 620/640/660 '97

58530199000

Unavailable

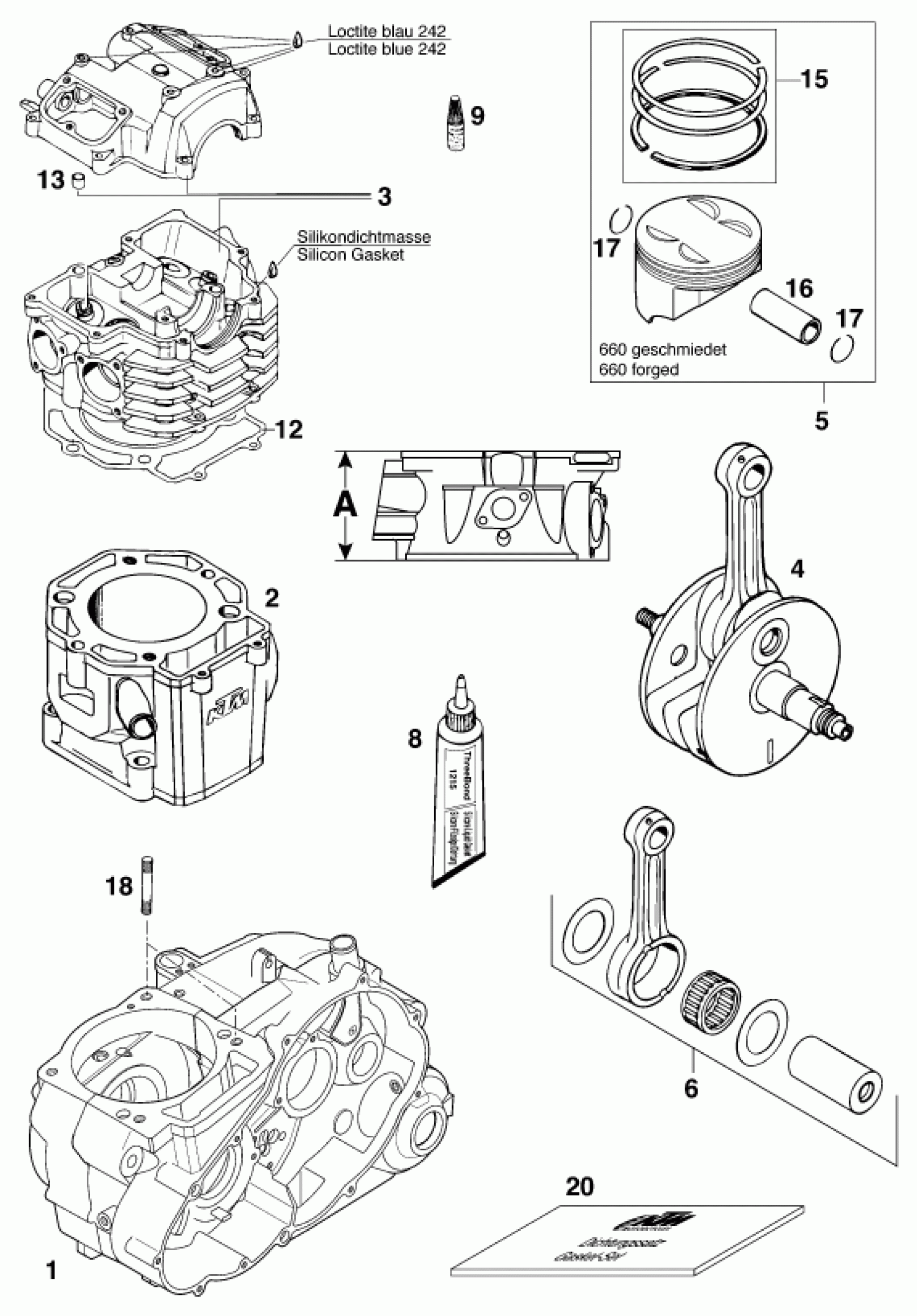

KTM 620 COMPETITION LIMITED 20kW <1997 Other Diagram

ENGINE CASE CPL.W.BEARINGS '97

CYLINDER 102MM 660 LC4'95

% CYLINDER 101MM 640 LC4'

CYLINDERH.CPL."6D"A=84,8MM '95

* CYLINDERH.CPL."6D28"620/640L

CRANKSHAFT CPL. 640/660 LC4'95

CONNECTING ROD REPAIR SET LC

SILICON GASKET THREE-BOND

LOCTITE 243 BLUE 5 ML

CYLINDER HEAD GASKET 102,3MM

DOWEL 9,8 X 7 X 10

PISTONRINGSET 102MM CPL. '96

PISTON PIN 22 X 13,5 X 63,5

CIRCLIP C 22 X 1,2

STUD DIN0835-M10X50

GASKET SET 620/640/660 '97
