Partiron

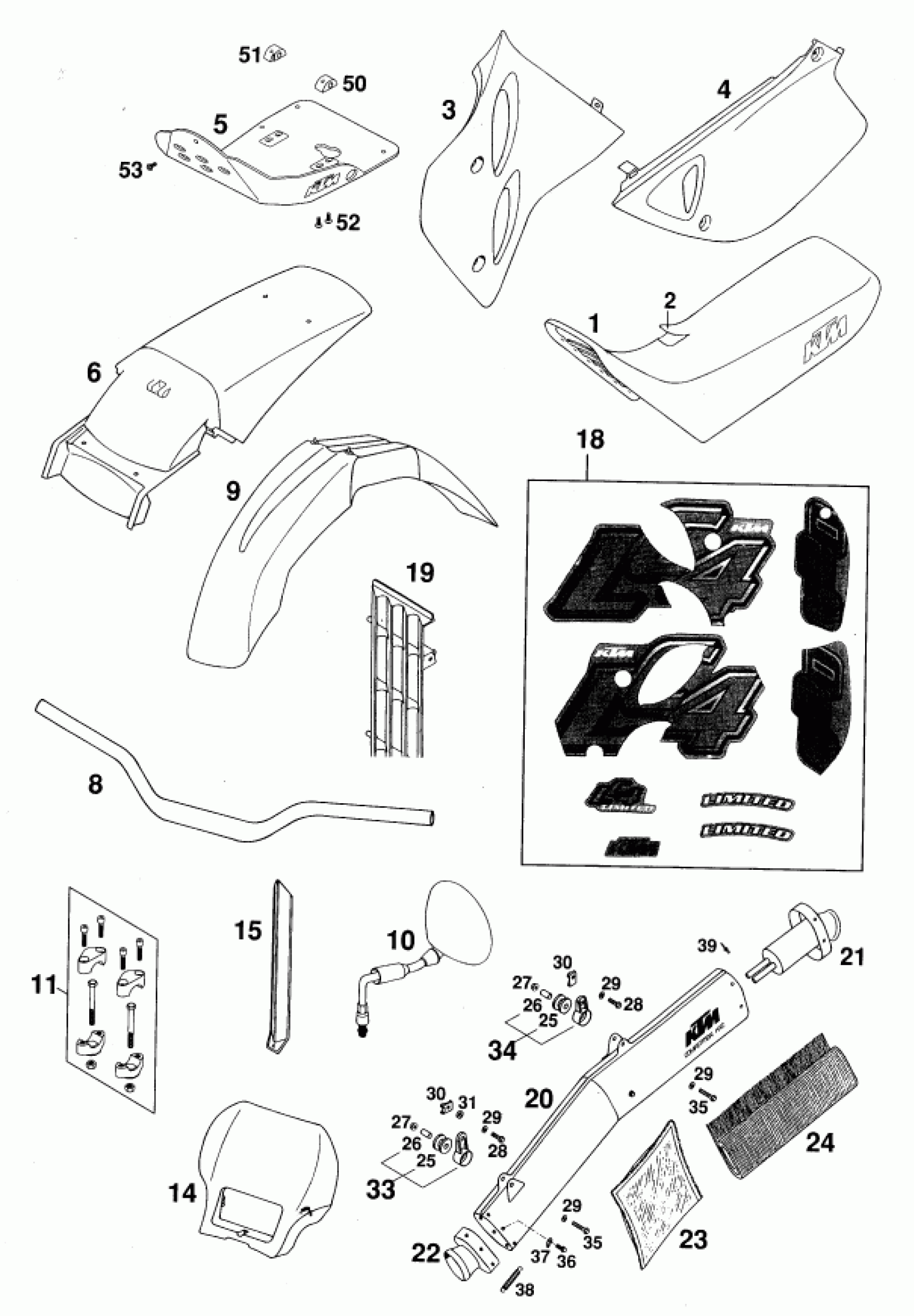

KTM 620 COMPETITION LIMITED 20kW <1997> NEW PARTS Diagram

#

Description
Price

0

* STUFFING YARN LOOSE PER

58005079055

Unavailable

0

RADIATOR PROTECTOR R/S BLACK

58035134000

$11.53

0

SIDE COVER ORANGE R/S '97

5830804200004

$56.67

0

* REAR MIRROR R/S '95

58312140100

Unavailable

0

SPOILER CARBON R/S '97

5833502900099

Unavailable

1

SEAT 620 LIMITED EDITION '97

58307240800

Unavailable

2

SEAT COVER LIMITED EDITION '97

58307240850

Unavailable

3

SPOILER CARBON L/S '97

5833502800099

Unavailable

4

SIDE COVER ORANGE L/S '98

5830804100004

$32.05

5

AP-ANLAGE KPL. HUSABERG

58412099000

Unavailable

6

FENDER REAR ORANGE '97

5830801320004

Unavailable

8

ALU-HANDLEBAR SX,SC,ADVENT.'97

58302001300

Unavailable

9

FRONT FENDER CARBON '97

5020841000099

Unavailable

10

REAR MIRROR L/S '95

58312040100

$55.06

11

SUPPORTKIT F.HANDL.DUKE,ADV'97

58402001050

Unavailable

14

HEAD LIGHT MASK CARBON '97

5021140100099

Unavailable

15

FORK GUARD L/S-R/S CARBON '97

5650109100099

Unavailable

18

DECAL SET CPL. LIMITED 97

58307099600

Unavailable

19

RADIATOR PROTECTOR L/S BLACK

58035034000

$11.78

20

SILENCER "KTM HXC" '93

58305179000

Unavailable

21

SILE. CAP D=2X9MM PAINTED'97

58305179180

$84.43

22

CONNECTING CAP HXC SILENCER

58305079090

Unavailable

23

STUFFING YARN LOOSE 300 GRAMM

58005079056

$97.80

24

STUFFING YARN 190 GRAMM

58005078108

Unavailable

25

damp. component silicone grey

54305068100

$8.31

26

BUSHING 7X12X15,4

54305069000

$4.11

27

SELF LOCKING NUT M6

56509064000

Unavailable

28

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

29

SPRING WASHER DIN0137-B 6

0137060000

Unavailable

30

clip nut M6

54603048100

$4.11

31

STEEL WASHER 6,4X17X3

50232050001

$5.23

33

SIL. BRACKET CPL. LONG SILICON

54305065244

$21.41

34

SIL. BRACKET CPL.SHORT SILICON

54305065344

$21.42

35

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

36

SPECIAL SCREW M 5,0X10

0009050103

$2.05

37

RETAINING PLATE

51005074000

$3.08

38

TENSION SPRING L=55MM

51005063000

$5.98

39

DUMMY RIVET 4,8X 7,5 NIRO

0011480752

Unavailable

50

58003012100

Unavailable

51

ENGINE PROTECTOR BRACKET '97

58003012200

$20.47

52

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

53

HH COLLAR SCREW M 6X13 WS=8

0014060133

$3.08
