WATER PUMP 600 XCR SP 0965677 and EUROPEAN 600 XCR SP E965677 (4932063206D003)

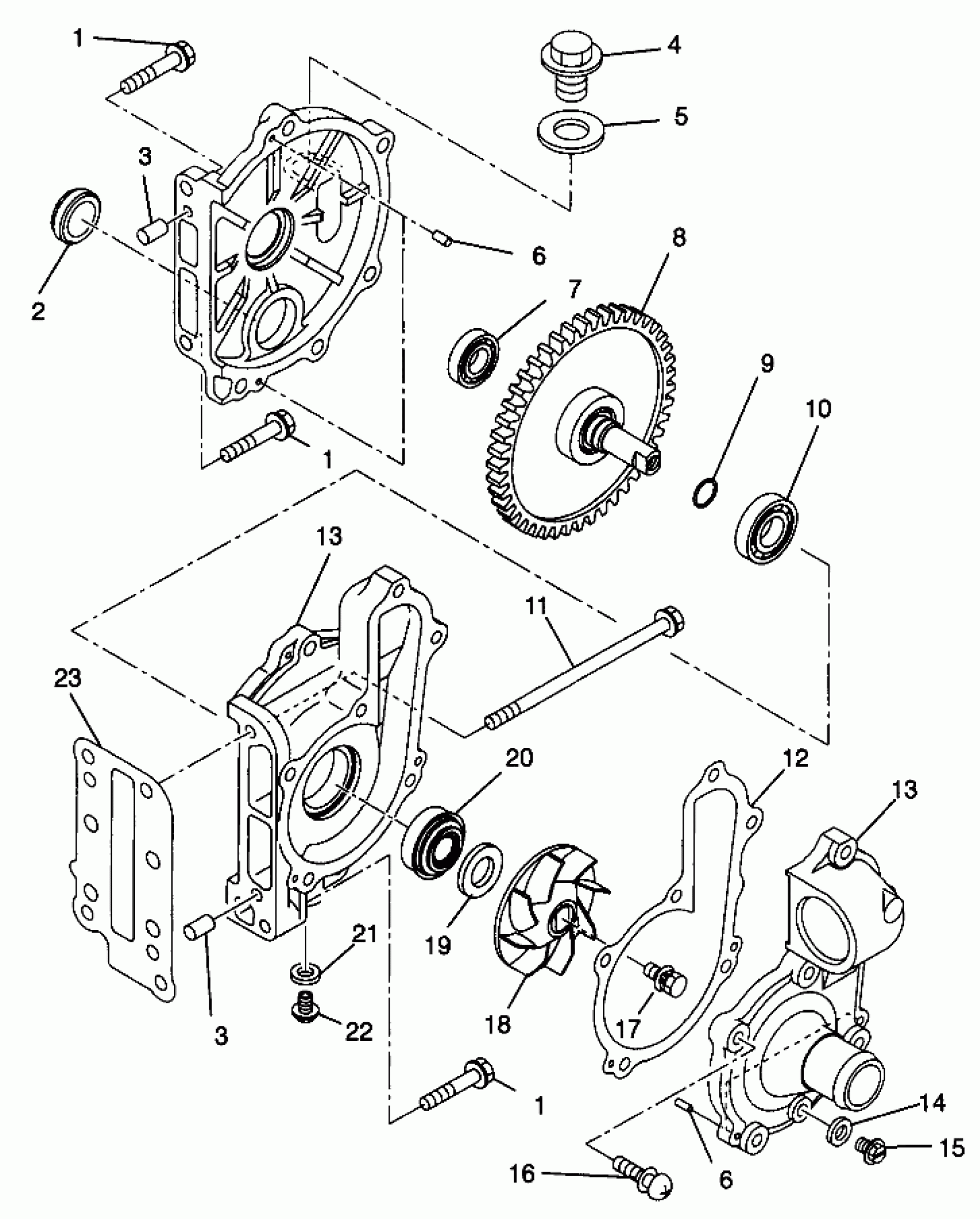

Polaris 600 XCR SP - 0965677 WATER PUMP 600 XCR SP 0965677 and EUROPEAN 600 XCR SP E965677 (4932063206D003) Diagram
#
Description
Price
1
Bolt, Flange
3085295
$2.63
1
Bolt, Flange
3085295
$2.63
1
Bolt, Flange
3085295
$2.63
2
GAUGE, OIL
3085146
Unavailable
3
PIN, DOWEL Substituted by 3086838
3080103
$7.14
3
PIN, DOWEL Substituted by 3086838
3080103
$7.14
4
PLUG Substituted by 3086749
3083453
Unavailable
5
GASKET
3082956
$4.84
6
PIN, DOWEL
3084721
$4.79
6
PIN, DOWEL
3084721
$4.79
7
BEARING, BALL
3085286
Unavailable
8
SHAFT,WATER PUMP *
3085269
Unavailable
9
O-RING,(WATER PUMP SHAFT) (Water Pump Shaft)
3085149
Unavailable
10
BALLBEARING
3085145
Unavailable
11
Bolt, Flange
3085272
$6.23
12
GASKET,(PUMP CASING 1) (Pump Casing 1)
3085151
Unavailable
13
PUMP ASM, WATER (Incl. 2-10, 12-22)
3085267
$629.99
13
CASING #1, PUMP (Incl. 6)
3085143
Unavailable
13
PUMP ASM, WATER (Incl. 2-10, 12-22)
3085267
$629.99
13
CASING #1, PUMP (Incl. 6)
3085143
Unavailable
14
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
15
PLUG, AIR VENT Substituted by 7517266
3083350
Unavailable
16
SCREW&WASHER ASM.(10)
3084221
$2.39
17
Bolt
3085270
Unavailable
18
IMPELLER UNIT
3085174
Unavailable
19
PLATE,SEALING
3085175
Unavailable
20
Seal, Mechanical
3085384
$60.70
21
GASKET,ALUMINUM(10)
3083482
$3.22
22
PLUG
3085152
Unavailable
23
GASKET, WATER PUMP
3085271
Unavailable
