TUNNEL ASSEMBLY 600 XCR SP 0965677 and EUROPEAN 600 XCR SP E965677 (4932063206A005)

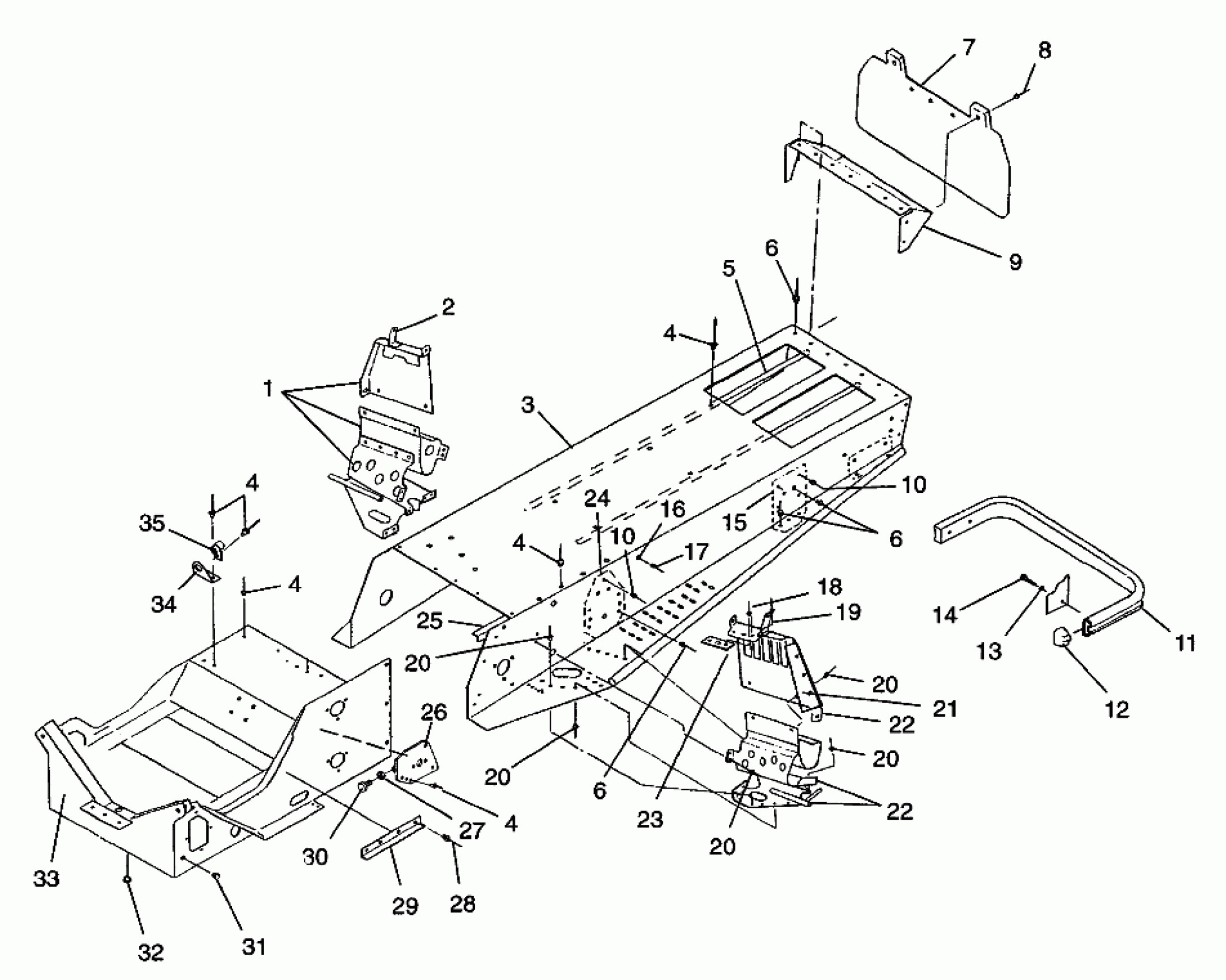

Polaris 600 XCR SP - 0965677 TUNNEL ASSEMBLY 600 XCR SP 0965677 and EUROPEAN 600 XCR SP E965677 (4932063206A005) Diagram
#
1
FOOTREST, RH
1012281
Unavailable
2
MOUNT,RH,CONSOLE Substituted by 5242493-067
5240864-067
Unavailable
3
TUNNEL,(AGR),BLK. Substituted by 1012554 (Incl. 9, 15, 24)
1012306
Unavailable
4
RIVET-3/16-.090-.290
7661637
$1.49
4
RIVET-3/16-.090-.290
7661637
$1.49
4
RIVET-3/16-.090-.290
7661637
$1.49
4
RIVET-3/16-.090-.290
7661637
$1.49
4
RIVET-3/16-.090-.290
7661637
$1.49
5
STRIP-WEAR
5510130
Unavailable
6
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
6
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
6
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
7
FLAP,SNOW,(XTRA-10) Substituted by 5432149-1106
5432149
Unavailable
8
POP RIVET(50)
7621418
$1.49
9
PANEL,TUNNELBACK
5241053-067
$308.99
10
RIVET,SEMI-TUBE,(50)
7661841
$1.49
10
RIVET,SEMI-TUBE,(50)
7661841
$1.49
11
BUMPER,REAR,BLACK Substituted by 2670169
2670169-067
Unavailable
12
CAP,BUMPER
5431995-070
Unavailable
13
WASHER(10)
7558301
$1.49
14
BOLT(10)
7512240
$3.99
15
PAD,LH,R.SUSP.
5241268-067
Unavailable
15
PAD,RH,R.SUSP.
5241269-067
Unavailable
16
SNAP-MALE(10)
7080227
Unavailable
17
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
18
RIVET(50)
7661850
$1.49
19
MOUNT,LH,CONSOLE
5240863-067
Unavailable
20
RIVET,INTERLOCK,B(50)
7661638
$1.49
20
RIVET,INTERLOCK,B(50)
7661638
$1.49
20
RIVET,INTERLOCK,B(50)
7661638
$1.49
20
RIVET,INTERLOCK,B(50)
7661638
$1.49
20
RIVET,INTERLOCK,B(50)
7661638
$1.49
21
BRKT,LH,CORNERBRACE
5241320-067
Unavailable
21
BRKT,RH,CORNERBRACE
5241321-067
$8.29
22
FOOTREST, LH
1012280
Unavailable
22
FOOTREST, LH
1012280
Unavailable
23
PLATE,CLUTCH GUARD MT.
1012441
Unavailable
24
PAD,LH,FR.SUSP.MTG. Substituted by 5244287-067
5241303-067
Unavailable
24
PAD,RH,FR.SUSP.MTG. Substituted by 5244287-067
5241304-067
Unavailable
25
BRACE,TUNNEL REINF.
5240992
Unavailable
26
LIMITER,TORQUE,(680), BLK
1012414-067
Unavailable
27
STOP,TORQUE,RUBBER
3110052
Unavailable
28
RIVET,INTERLOCK(50) Substituted by 7661130
7661639
Unavailable
29
GUARD,ADAPTER GUIDE
5222857
$12.94
30
NUT, JAM(10)
7542432
$3.99
31
PLUG, HOLE(10)
7080512
$2.63
32
PLUG-HOLE
7080398
$4.84
33
BULKHEAD ASM.
1012259-067
$396.83
34
BRKT,ROPE GUIDE,BLK.
5222687-067
$59.99
35
GUIDE, RECOIL
5431385
$10.51
