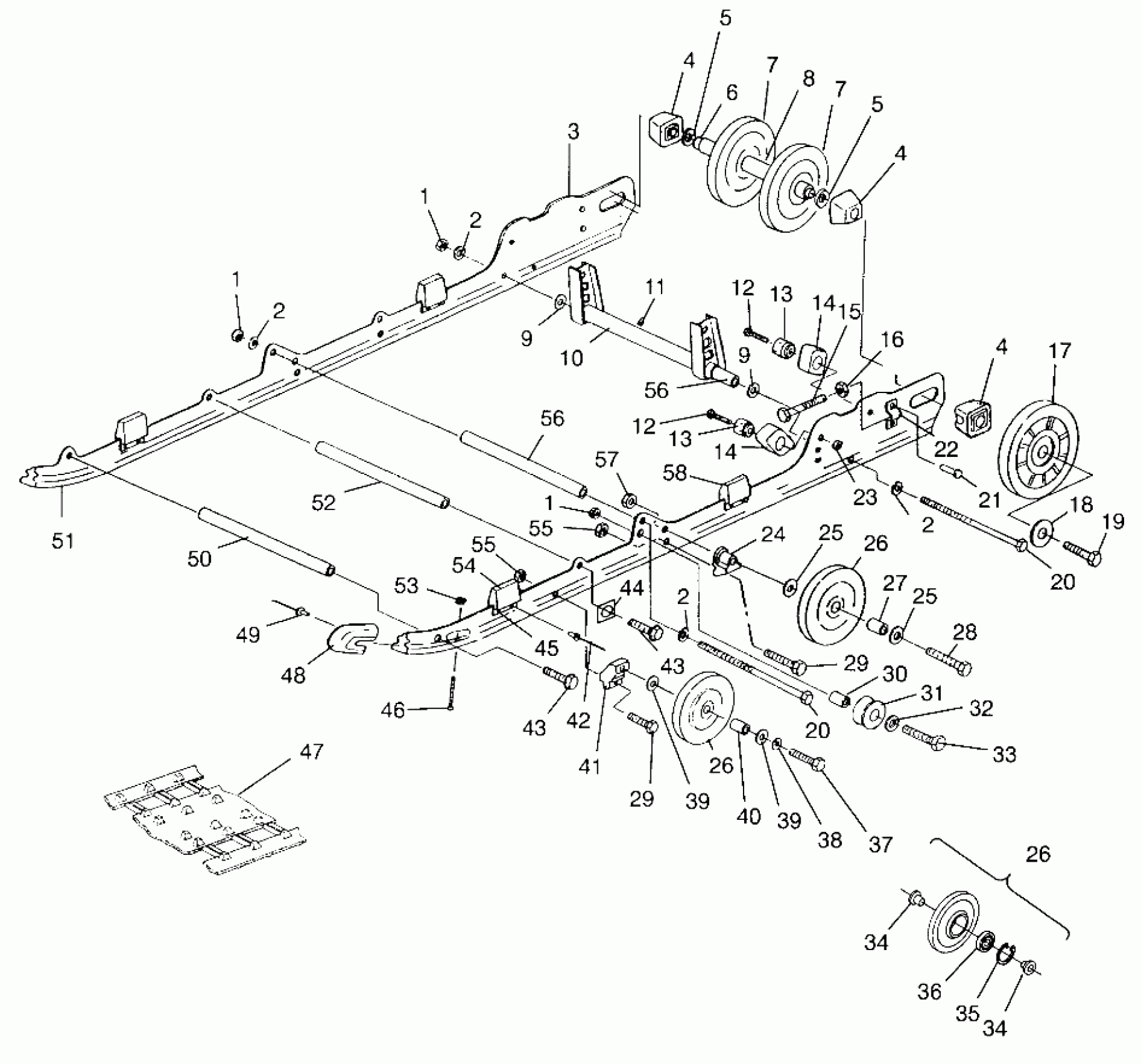

Polaris 600 XCR SP - 0965677 SUSPENSION 600 XCR SP 0965677 and EUROPEAN 600 XCR SP E965677 (4932063206B011) Diagram

#

Description
Price

1

NUT LOCK(10)

7542411

$3.19

1

NUT LOCK(10)

7542411

$3.19

1

NUT LOCK(10)

7542411

$3.19

2

WASHER(10) Substituted by 7555806

7555720

$0.79

2

WASHER(10) Substituted by 7555806

7555720

$0.79

2

WASHER(10) Substituted by 7555806

7555720

$0.79

2

WASHER(10) Substituted by 7555806

7555720

$0.79

3

RAIL ASM,LH,(XTRA-10) Substituted by 1541146 (Incl. 22, 48, 58, 54)

1541016

$288.99

3

RAIL ASM,RH,(XTRA-10) Substituted by 1541147 (Incl. 22, 48, 58, 54)

1541017

Unavailable

4

SPACER,OUTER IDLER Substituted by 5432434

5431880

Unavailable

4

SPACER,OUTER IDLER Substituted by 5432434

5431880

Unavailable

4

SPACER,OUTER IDLER Substituted by 5432434

5431880

Unavailable

5

BUSHING(10)

7555918

$1.59

5

BUSHING(10)

7555918

$1.59

6

SHAFT,IDLER

5020744

$59.99

7

WHEEL,IDLER,BLK(20MM)

1594056-070

$48.56

7

WHEEL,IDLER,BLK(20MM)

1594056-070

$48.56

8

SPACER-IDLER, CENTER

5333283

$19.99

9

WASHER(10)

7555893

$1.49

9

WASHER(10)

7555893

$1.49

10

ARM,R.PIVOT

1540982-067

$38.05

11

ZERK,FITTING,THREADED(10)

7080433

$1.49

12

BOLT(10)

7515537

$10.99

12

BOLT(10)

7515537

$10.99

13

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

13

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

14

BUMPER,F.PIVOT ARM

5410925

$12.94

14

BUMPER,F.PIVOT ARM

5410925

$12.94

15

BOLT, ADJUSTER(10)

7515455

$29.99

16

NUT(10)

7542440

Unavailable

17

WHEEL,IDLER,PLUM PIZZAZZ (Plum Pizzazz)

1594056-190

$48.56

18

WASHER(10) Substituted by 7556130

7571629

Unavailable

19

BOLT(10)

7515526

$1.19

20

SCREW Substituted by 7517353

7515549

Unavailable

20

SCREW Substituted by 7517353

7515549

Unavailable

21

RIVET,(50)

7621501

$2.39

22

BLOCK-IDLER BOLT ADJ.

5130530

$32.37

23

NUT LOCK(10)

7542403

$3.99

24

SPACER

5630399

$11.99

25

WASHER, FLAT(10)

7555852

$2.39

25

WASHER, FLAT(10)

7555852

$2.39

26

WHEEL, IDLER

1543018

$56.65

26

WHEEL, IDLER

1543018

$56.65

26

WHEEL, IDLER

1543018

$56.65

27

SPACER, WHEEL

5333116

$7.99

28

BOLT(10)

7512538

$6.39

29

BOLT(10)

7512404

$3.99

29

BOLT(10)

7512404

$3.99

30

Spacer

5332787

Unavailable

31

ROLLER,SPRING

5432170

Unavailable

32

WASHER(10)

7555743

Unavailable

33

BOLT Substituted by 7515491

7515433

$1.59

34

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

34

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

35

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

36

BEARING (1 per Wheel)

3514303

$11.99

37

BOLT(10)

7512659

$7.99

38

LOCK WASHER(10)

7553201

$3.99

39

WASHER(10)

7555804

$3.99

39

WASHER(10)

7555804

$3.99

40

SPACER

5332786

$7.99

41

BRACKET,BOGIE WHEEL

5130570

$48.56

42

RIVET-3/16 (.626-.750) Q-AL-ST

7621476

$1.49

43

BOLT

7515542

Unavailable

43

BOLT

7515542

Unavailable

44

BRKT-SHAFT SUPPORT

5241443

Unavailable

45

REINF., BUMPER

5222629

$13.75

46

SCREW(10)

7515153

$3.99

47

CLIP, TRACK(CAMOPLAST),(10)

5222839

Unavailable

47

CLIP,GUIDE,CAMOPLAST,(10)

5222840

Unavailable

47

TRACK,121"X.82 MOD(LIGHTNING)

5411057

$583.99

48

COVER, RAIL TIP Substituted by 5433005

5431421

Unavailable

49

RIVET(50)

7621435

$1.49

50

SHAFT,PIVOT ARM

5020723

$29.99

51

SLIDER,BLACK(2)

5521320

Unavailable

52

SHAFT,PIVOT ARM

5020724

$29.99

53

NUT-LOCK(10)

7542122

$1.49

54

BUMPER,SUSPENSION

5811097

Unavailable

55

NUT-LOCK(10)

7542439

$1.49

55

NUT-LOCK(10)

7542439

$1.49

56

SHAFT

5333404

$24.27

56

SHAFT

5333404

$24.27

57

NUT, NYLOCK(10)

7542525

$4.79

58

BUMPER, RAIL

5810554

$7.27
