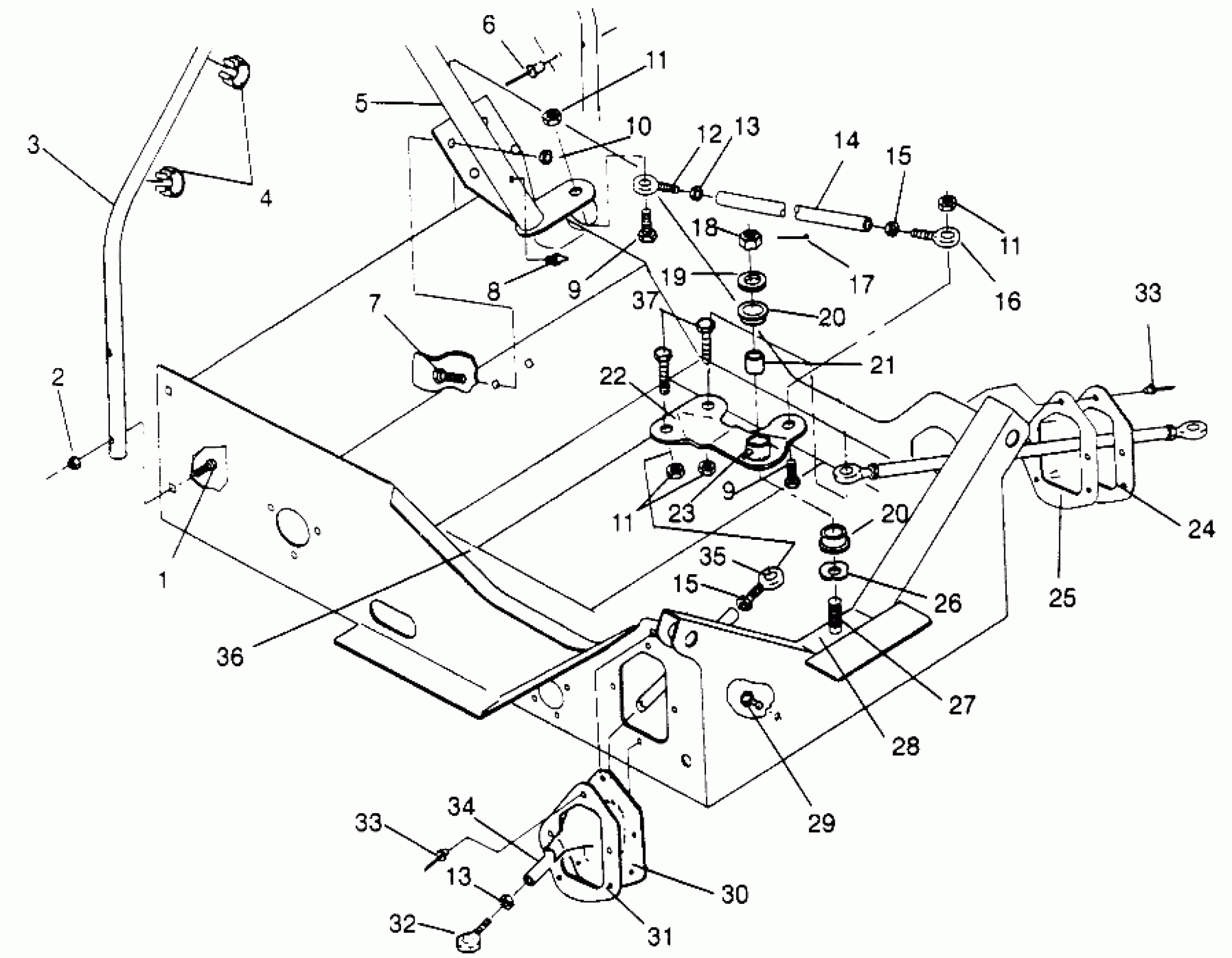

Polaris 600 XCR SP - 0965677 STEERING 600 XCR SP 0965677 and EUROPEAN 600 XCR SP E965677 (4932063206B007) Diagram

#

Description
Price

1

BOLT-CARRIAGE(10)

7512275

$3.99

2

NUT-LOCK(10)

7542122

$1.49

3

HOOP,STEERING Substituted by 1012856-067

1012282-067

Unavailable

4

CLIP(10)

7080278

$2.63

5

POST,STRG,(AGR.)

1823176-067

Unavailable

6

RIVET-3/16-.090-.290

7661637

$1.49

7

BOLT(10) Substituted by 7512377

7512394

Unavailable

8

FITTING-LUBRICATION 1/4-28

7080424

$4.79

9

BOLT(10)

7512404

$3.99

9

BOLT(10)

7512404

$3.99

10

NUT-5/16-18 NYLOK-Y

7542324

$1.49

11

NUT LOCK(10)

7542403

$3.99

11

NUT LOCK(10)

7542403

$3.99

11

NUT LOCK(10)

7542403

$3.99

12

ROD END, LH.

7060164

$48.56

13

NUT

7542424

$1.49

13

NUT

7542424

$1.49

14

ROD-DRAG LINK

5332712

Unavailable

15

NUT HEX(10)

7542401

$2.39

15

NUT HEX(10)

7542401

$2.39

16

ROD END, RH.

7060165

$48.56

17

PIN COTTER(10)

7661203

$1.49

18

NUT FLEX,(10)

7542703

Unavailable

19

WASHER(10)

7555721

$1.49

20

BUSHING

3563907

$3.99

20

BUSHING

3563907

$3.99

21

BUSHING

5010340

Unavailable

22

STRG.ASM,CTR. (Incl. 20, 23)

1822223

Unavailable

23

ZERK,FITTING,THREADED(10)

7080433

$1.49

24

PLATE,LH,BOOTSEAL,BLK.

5210959-067

Unavailable

25

BOOT , LH

5410388

Unavailable

26

WASHER,WAVE(10)

7555735

$3.99

27

BOLT(10)

7512682

Unavailable

28

BLOCK,STRG,(CAST)

5630563

$32.37

29

CLIP, PLASTIC(10)

4020139

$4.79

30

BOOT-TIE ROD

5410328

Unavailable

31

PLATE,BOOTSEAL,BLK.

5210904-067

$5.71

32

ROD END, RH Substituted by 7060167

7060152

$48.56

33

POP RIVET(50)

7621323

$1.49

33

POP RIVET(50)

7621323

$1.49

34

ROD,TIE,BLK.

5020715-067

Unavailable

35

ROD END, LH Substituted by 7060166

7060151

$48.56

36

TRIM,EDGE,6FT,BLACK [No Longer Available]

5521131

Unavailable

37

BOLT(10)

7515528

$8.79
