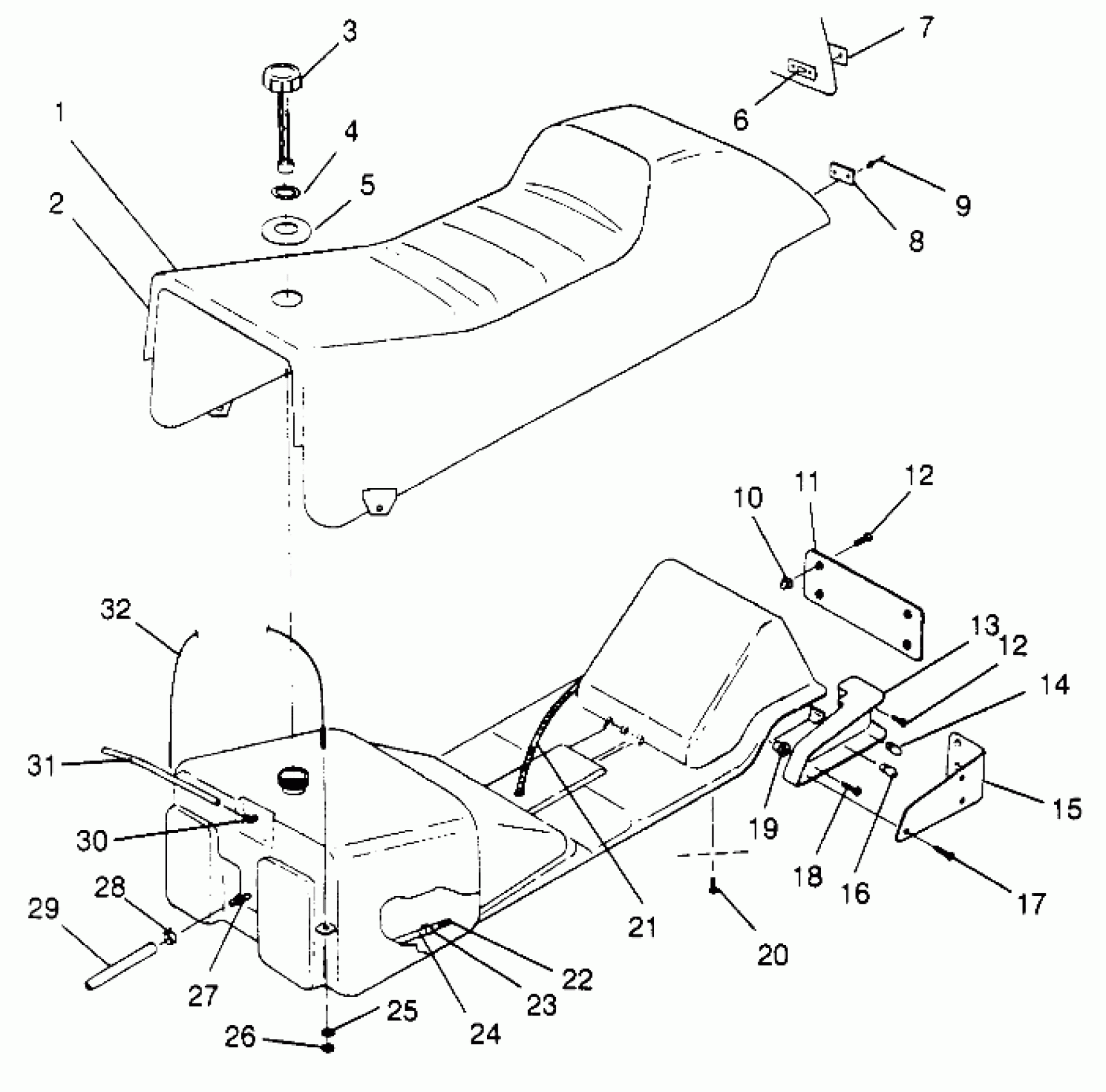

Polaris 600 XCR SP - 0965677 SEAT and GAS TANK ASSEMBLY 600 XCR SP 0965677 and EUROPEAN 600 XCR SP E9656 (4932063206A007) Diagram

#

Description
Price

1

SEAT ASM.(600 SP) (Incl. 2, 6-19, 21-27, 30, 32)

2681922

Unavailable

2

COVER,SEAT,(600 SP)

2681921

Unavailable

3

CAP,GAS,W/GAUGE

2511248

$44.51

4

GASKET, GAS CAP

5810513

$8.89

5

GROMMET,FUELTANK

5410815

Unavailable

6

GROMMET,RELATCH,1",BOTT.(10)

7080550

Unavailable

7

GROMMET,RELATCH,1",TOP(10)

7080549

Unavailable

8

TWISTLOCK,RELATCH,1",W/HOLE(10)

7080548

Unavailable

9

RIVET(50)

7621337

$1.49

10

NUT(10)

7546908

$2.63

11

REFLECTOR,CTR,SEAT

5432008

Unavailable

12

SCREW,SELF-TAP(10)

7522004

Unavailable

12

SCREW,SELF-TAP(10)

7522004

Unavailable

13

HOUSING,LH,LENS

5432002

Unavailable

13

HOUSING,RH,LENS

5432003

Unavailable

14

Bulb, Brakelight

4030045

Unavailable

15

LENS,RH

5432032

$44.51

15

LENS,LH

5432031

Unavailable

16

BULB, T/L.

4032084

Unavailable

17

SCREW(10)

7512054

$2.39

18

SCREW(10)

7511954

$1.19

19

NUT, WELL(10)

7541901

$6.39

20

SCREW(10)

7512242

$2.39

21

HARNESS,T/L,121,(SCULPT)

2460541

Unavailable

22

FUELPICKUP,W/STRAINER

7052037

$12.94

23

RING, COMPRESSION(10)

7080402

$1.60

24

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

25

NUT(10)

7541925

$1.49

26

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

27

FITTING - OUTLET(10)

7052023

$24.99

28

CLAMP, HOSE

7080490

Unavailable

29

FUEL LINE, 5 FT.

8450045-153

Unavailable

30

FITTING,90 DEG,1/8,(10)

7052095

$4.79

31

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

32

CABLE,TANK,RETENTION

7080559

Unavailable
