PISTON and CRANKSHAFT 600 XCR SP 0965677 and EUROPEAN 600 XCR SP E965677 (4932063206D004)

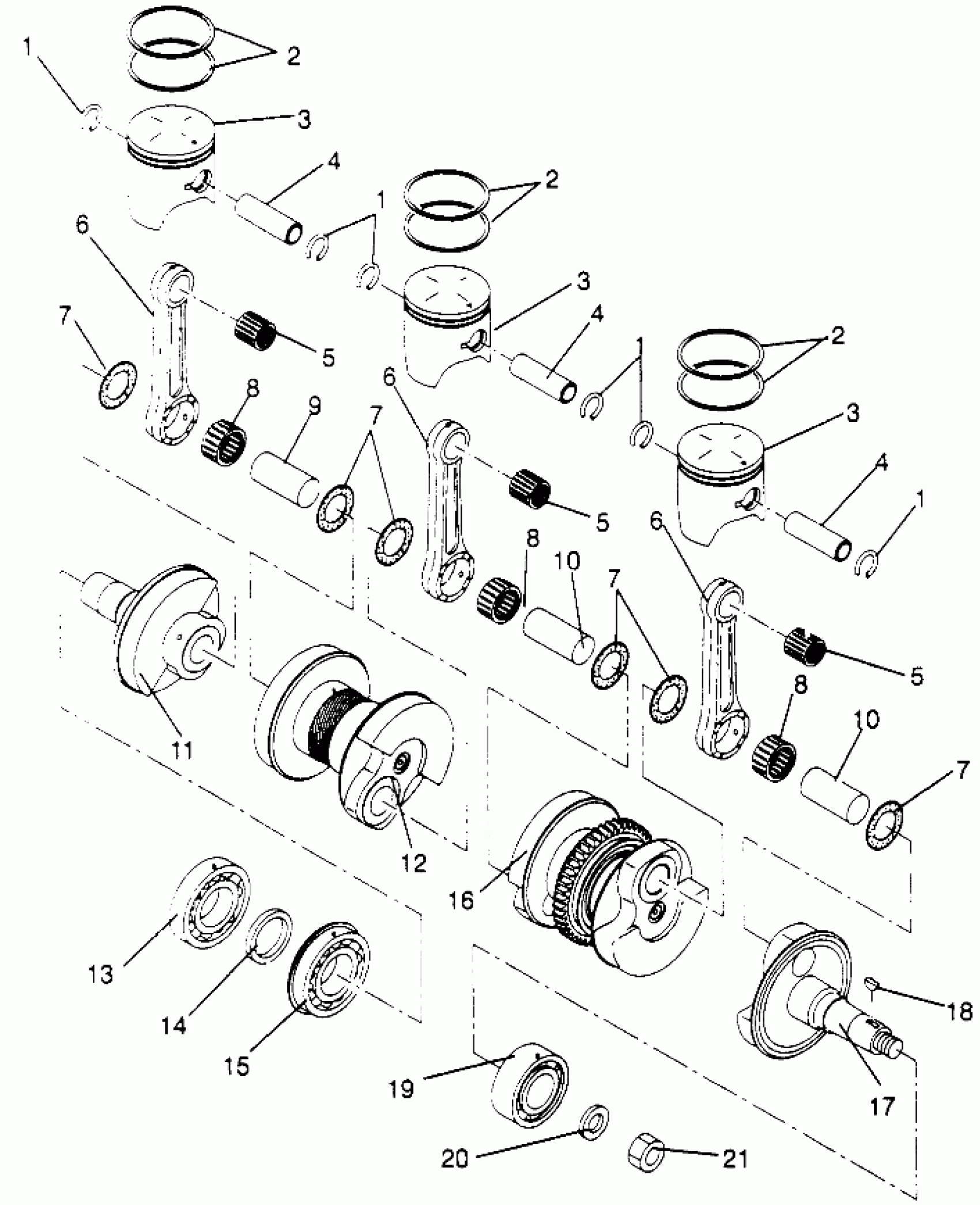

Polaris 600 XCR SP - 0965677 PISTON and CRANKSHAFT 600 XCR SP 0965677 and EUROPEAN 600 XCR SP E965677 (4932063206D004) Diagram
#
1
CLIP,(10)
3084167
$6.39
1
CLIP,(10)
3084167
$6.39
1
CLIP,(10)
3084167
$6.39
1
CLIP,(10)
3084167
$6.39
2
RING, PISTON (Tuft)
3085298
Unavailable
2
RING, PISTON (Tuft)
3085298
Unavailable
2
RING, PISTON (Tuft)
3085298
Unavailable
3
PISTON
3085297
Unavailable
3
PISTON
3085297
Unavailable
3
PISTON
3085297
Unavailable
4
PIN, PISTON Substituted by 3085494
3085299
Unavailable
4
PIN, PISTON Substituted by 3085494
3085299
Unavailable
4
PIN, PISTON Substituted by 3085494
3085299
Unavailable
5
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
5
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
5
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
6
ROD,CONNECTING
3085256
Unavailable
6
ROD,CONNECTING
3085256
Unavailable
6
ROD,CONNECTING
3085256
Unavailable
7
Spacer
3083804
$19.99
7
Spacer
3083804
$19.99
7
Spacer
3083804
$19.99
7
Spacer
3083804
$19.99
8
BEARING,LARGE END
3085257
$35.99
8
BEARING,LARGE END
3085257
$35.99
8
BEARING,LARGE END
3085257
$35.99
9
PIN,CRANK #2 (58.5mm)
3085259
Unavailable
10
PIN,CRANK #1 (51mm)
3085258
Unavailable
10
PIN,CRANK #1 (51mm)
3085258
Unavailable
11
CRANKSHAFT,#3
3085255
$319.99
12
CRANKSHAFT,PTO (PTO) (Incl. 9)
3085254
Unavailable
13
BEARING, BALL
3084544
Unavailable
14
Spacer
3085261
Unavailable
15
BALLBEARING Substituted by 3085753
3085125
Unavailable
16
CRANKSHAFT ASM,CTR. (Center) (Incl. 6-10, 12)
3085252
$804.99
16
CRANKSHAFT,MAG (Mag) (Incl. 10)
3085253
Unavailable
17
CRANKSHAFT #1
3085251
$329.99
17
CRANKSHAFT (Incl. 6-17, 19)
3085250
$1,279.99
18
KEY Substituted by 3081543
3080130
Unavailable
19
BEARING, BALL
3085260
Unavailable
20
Washer
3084457
Unavailable
21
NUT
3083093
$19.99
