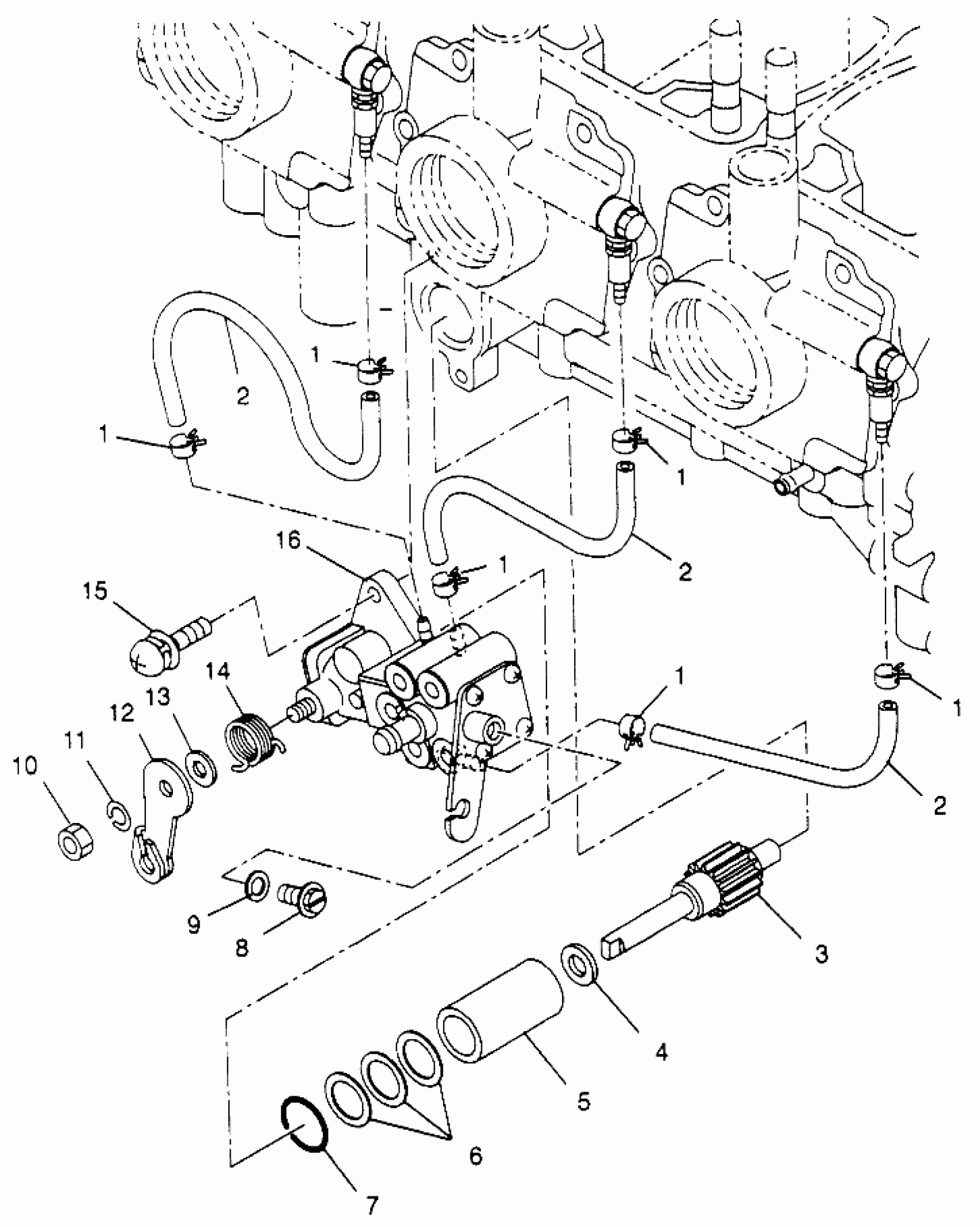

Polaris 600 XCR SP - 0965677 OIL PUMP 600 XCR SP 0965677 and EUROPEAN 600 XCR SP E965677 (4932063206C014) Diagram

#

Description
Price

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

2

PIPE,VINYL 1 (280 mm)

3085157

$29.99

2

PIPE,VINYL 1 (280 mm)

3085157

$29.99

2

PIPE,VINYL 1 (280 mm)

3085157

$29.99

3

GEAR,SMALL,OIL PUMP

3083131

$89.99

4

SPACER

3083130

$1.59

5

BUSHING(OIL PUMP)

3083353

$31.99

6

SPACER #3

3083673

Unavailable

6

SPACER #2

3083672

Unavailable

6

SPACER #1

3083671

Unavailable

7

O RING

3083127

Unavailable

8

SCREW-AIR VENT

3083125

Unavailable

9

PACKING(10)

3083126

$4.03

10

NUT(10)

3083120

$3.19

11

WASHER-SPRING(10)

3083121

$299.99

12

LEVER, CONTROL Substituted by 3085156

3085364

Unavailable

13

COLLAR, CAMSHAFT(10)

3083445

$2.39

14

SPRING-RETURN

3083123

Unavailable

15

SCREW&WASHER,(10)

3083783

$2.39

16

PUMP, OIL Substituted by 3085495 (Incl. 7-14)

3085300

Unavailable
