HOOD 600 XCR SP 0965677 and EUROPEAN 600 XCR SP E965677 (4932063206A012)

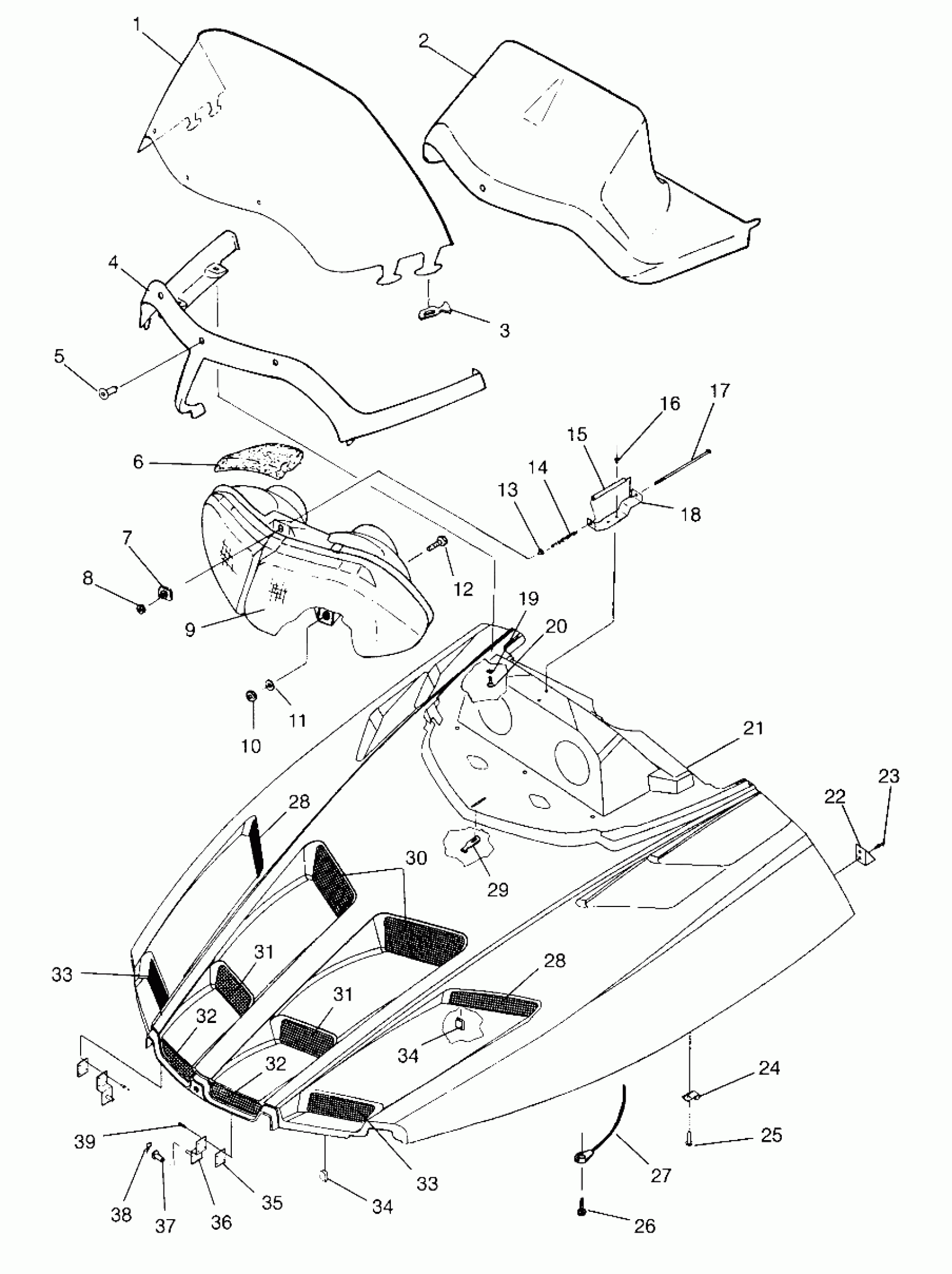

Polaris 600 XCR SP - 0965677 HOOD 600 XCR SP 0965677 and EUROPEAN 600 XCR SP E965677 (4932063206A012) Diagram
#
1
WNDSHLD,LOW,SMOKE(AGR)
5432266
Unavailable
2
HOUSING,INST.
5431780-070
Unavailable
3
RETAINER,WINDSHIELD,(10)
5410970
$1.49
4
RETAINER,W/S.BLK SAPH Substituted by 5432573-173
5431785-173
Unavailable
5
RIVET,PLASTI-LOC.(50)
7621509
$1.49
6
FOAM-HEADLIGHT
5811094
Unavailable
7
NUT,H/L.PIVOT
5431901
Unavailable
8
NUT-WELL(10)
7541920
Unavailable
9
BULB,QUARTZ.H/L,INDY
2870448
$24.99
9
H/L ASM. (Incl., Blubs)
2431009
$185.99
10
NUT(10)
7542124
Unavailable
11
WASHER(10) Substituted by 7558301
7555776
Unavailable
12
SCREW(10)
7512222
$2.39
13
WASHER,SPECIAL
5020811
Unavailable
14
SPRING,ADJ.H/L
7041397
Unavailable
15
SPACER,TUBE
5333296
Unavailable
16
RIVET(50)
7621485
$1.49
17
SCREW,ADJ.,H/L.(10)
4032072
Unavailable
18
BRKT,H/L ADJUST
5240757-067
Unavailable
19
BURR,RIVET(50)
7555904
$1.49
20
SCREW(10)
7512026
$1.49
21
HOOD ASM,(AGR),FOIL/FOAM Substituted by 2631689-173 (Incl. Foil & Foam)
2631755
Unavailable
22
CUP, HOOD LATCH,(10)
5430733
$4.84
23
RIVET(50)
7621334
$1.49
24
CLAMP, RETAINER(10)
7080372
$3.99
27
CABLE-HOOD RETAINER
7080569
Unavailable
28
SCREEN,LH,SIDEUPP.LOUVER Substituted by 5241146-067
5241145-067
Unavailable
28
SCREEN,RH,SIDEUPP.LOUVER
5241146-067
Unavailable
28
SCREEN,LH,SIDEUPP.LOUVER Substituted by 5241146-067
5241145-067
Unavailable
28
SCREEN,RH,SIDEUPP.LOUVER
5241146-067
Unavailable
29
RETAINER-TAB,(10)
5411075
Unavailable
30
SCREEN,RH,CTR,UPP.LOUVER
5241142-067
$19.83
30
SCREEN,LH,CTR,UPP.LOUVER Substituted by 5241142-067
5241141-067
Unavailable
31
SCREEN,LH,CTR,MID.LOUVER Substituted by 5241140-067
5241139-067
Unavailable
31
SCREEN,CTR,MID.LOUVER
5241140-067
Unavailable
31
SCREEN,LH,CTR,MID.LOUVER Substituted by 5241140-067
5241139-067
Unavailable
31
SCREEN,CTR,MID.LOUVER
5241140-067
Unavailable
32
SCREEN,LOUVER,CTR.LOW.
5241138-067
Unavailable
32
SCREEN,LOUVER,CTR.LOW.
5241138-067
Unavailable
33
SCREEN,RH,SIDELOW.LOUVER
5241144-067
$16.35
33
SCREEN,LH,SIDELOW.LOUVER Substituted by 5241144-067
5241143-067
Unavailable
33
SCREEN,RH,SIDELOW.LOUVER
5241144-067
$16.35
33
SCREEN,LH,SIDELOW.LOUVER Substituted by 5241144-067
5241143-067
Unavailable
34
SPEEDCLIP,'U'TYPE(10)
7670082
Unavailable
34
SPEEDCLIP,'U'TYPE(10)
7670082
Unavailable
35
PLATE,HINGE,BLK.
5211536-067
$5.75
36
HINGE,UPPER,LH
1012246-067
$15.08
36
HINGE,UPPER,RH
1012247-067
Unavailable
37
BUSHING, HINGE
5431884
Unavailable
38
PIN,HITCH(10)
7661644
$2.39
39
RIVET(50) Substituted by 7661130
7661643
Unavailable
