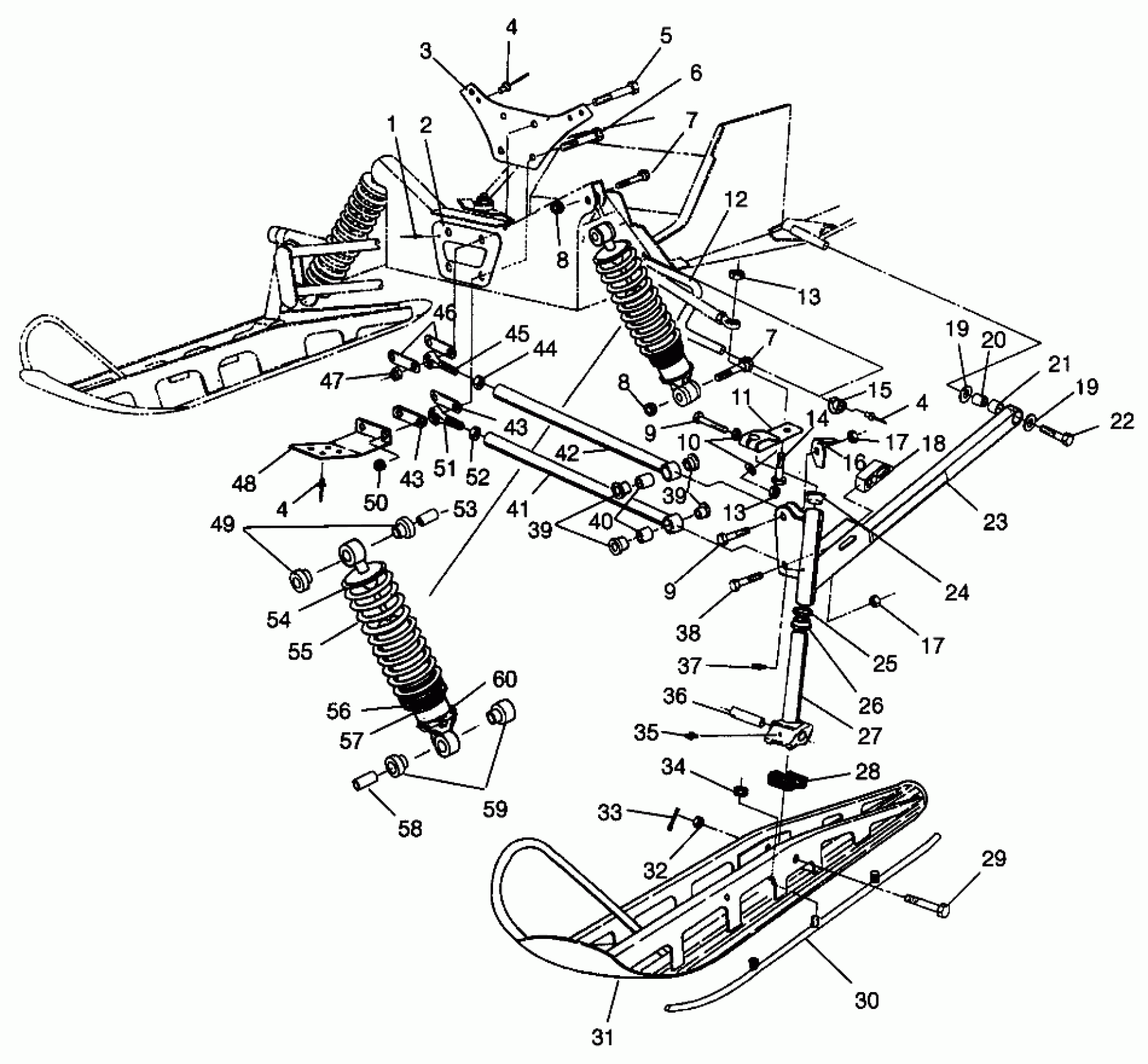

Polaris 600 XCR SP - 0965677 FRONT SUSPENSION and SKI 600 XCR SP 0965677 and EUROPEAN 600 XCR SP E965677 (4932063206B004) Diagram

#

Description
Price

1

RIVET-3/16-.090-.290

7661637

$1.49

2

BRACE,BLKHD/STRG,BLK.

5211589-067

Unavailable

3

REINF,R.SHOCK MT.PLATE

5241395-067

$3.46

4

RIVET(50) Substituted by 7661130

7661643

Unavailable

4

RIVET(50) Substituted by 7661130

7661643

Unavailable

4

RIVET(50) Substituted by 7661130

7661643

Unavailable

5

BOLT(10)

7512551

Unavailable

6

BOLT(10)

7512678

$19.99

7

BOLT(10) Substituted by 7515415

7515515

Unavailable

7

BOLT(10) Substituted by 7515415

7515515

Unavailable

8

NUT, NYLOC(10)

7542453

Unavailable

8

NUT, NYLOC(10)

7542453

Unavailable

9

BOLT(10) Substituted by 7517583

7515491

Unavailable

9

BOLT(10) Substituted by 7517583

7515491

Unavailable

10

WASHER(10) Substituted by 7555832

7555851

Unavailable

11

Arm, Steering

5220326-067

Unavailable

12

BAR,SWAY,BLK.

5224616-067

Unavailable

13

NUT, FLEXLOC B(10) Substituted by 7542403

7542456

$3.97

13

NUT, FLEXLOC B(10) Substituted by 7542403

7542456

$3.97

14

BOLT Substituted by 7512404

7515490

Unavailable

15

BUSHING,SWAYBAR

5410386

Unavailable

16

STOP,RH,STRG,BLK.

5240398-067

Unavailable

16

STOP,LH,STRG,BLK.

5240397-067

Unavailable

17

NUT, FLEXLOC(10) Substituted by 7542411

7542452

Unavailable

17

NUT, FLEXLOC(10) Substituted by 7542411

7542452

Unavailable

18

SLIDE,(FR.SUSP.)

5410385

Unavailable

19

WASHER(10)

7555721

$1.49

19

WASHER(10)

7555721

$1.49

20

TUBE,TRAILING ARM

5010187

Unavailable

21

PIVOT-TRAILING ARM

5410382

Unavailable

22

BOLT(10)

7512557

$7.60

23

ARM,TRLG,RH (Incl. 20, 21)

1822206

Unavailable

23

ARM,TRLG,LH (Incl. 20, 21)

1822205

Unavailable

24

BUSHING-FLANGE

3573909

$2.39

25

WASHER SPECIAL(10)

7556509

$1.59

26

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

27

SPINDLE, BLK.

6230073-067

Unavailable

28

STOP, RUBBER

5521276

Unavailable

29

BOLT(10)

7515462

$8.79

30

SKAG,PR.,CARBIDE (Pair)

2870693

$69.99

31

SKI WELD, BLK

1820332-067

Unavailable

32

NUT, CASTLE(10) Substituted by 7542438

7542457

Unavailable

33

PIN, COTTER(10) Substituted by 7661205

7661209

Unavailable

34

NUT-5/16-18 NYLOK-Y

7542324

$1.49

35

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

36

BUSHING,PIVOT,(10)

5010158

$19.99

37

ZERK,FITTING,THREADED(10)

7080433

$1.49

38

BOLT(10) Substituted by 7515540

7515492

$4.62

39

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

39

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

40

BUSHING-RADIUS ROD,(10)

5010127

$7.99

41

ROD,RAD,LOW,WIDE,BLK,SP Substituted by 2202105

1822139-067

Unavailable

42

ROD,RAD,UP.BLK. Substituted by 2202104

1822138-067

Unavailable

43

STRAP,SPACER BOTTOM

5211345

$12.99

43

STRAP,SPACER BOTTOM

5211345

$12.99

44

NUT JAM(10)

7542520

$2.39

45

ROD END, RH Substituted by 7061010

7060155

Unavailable

46

STRAP,SPACER TOP

5211344

$7.27

47

NUT, LOCK,(10)

7542503

$10.39

48

SUPPORT,PANBRAKE,LOW.

5240699-067

Unavailable

49

BUSHING,SHOCK,.220 Substituted by 1500137 (.220)

5431540

$24.99

50

NUT FLEX,(10)

7542703

Unavailable

51

ROD END,RH Substituted by 7061011

7060156

Unavailable

52

NUT-JAM(10)

7542711

$2.39

53

BUSHING, (1.34 IN.)

5020612

Unavailable

54

RETAINER,SPRING,SLOTTED

5020618

$24.99

55

SPRING,COMP,BLK,

7041358-067

Unavailable

56

RETAINER,CAM

5630491

Unavailable

57

CAM,SHOCK

5630492

Unavailable

58

BUSHING, (1.16 IN.)

5020613

Unavailable

59

BUSHING,SHOCK (.295)

5431727

Unavailable

60

Shock, Gas, IFS (See Pg. for Details) NOTE: For Fox Shock replacement parts see pages -.

-------

Unavailable
