ENGINE MOUNTING 600 XCR SP 0965677 and EUROPEAN 600 XCR SP E965677 (4932063206C004)

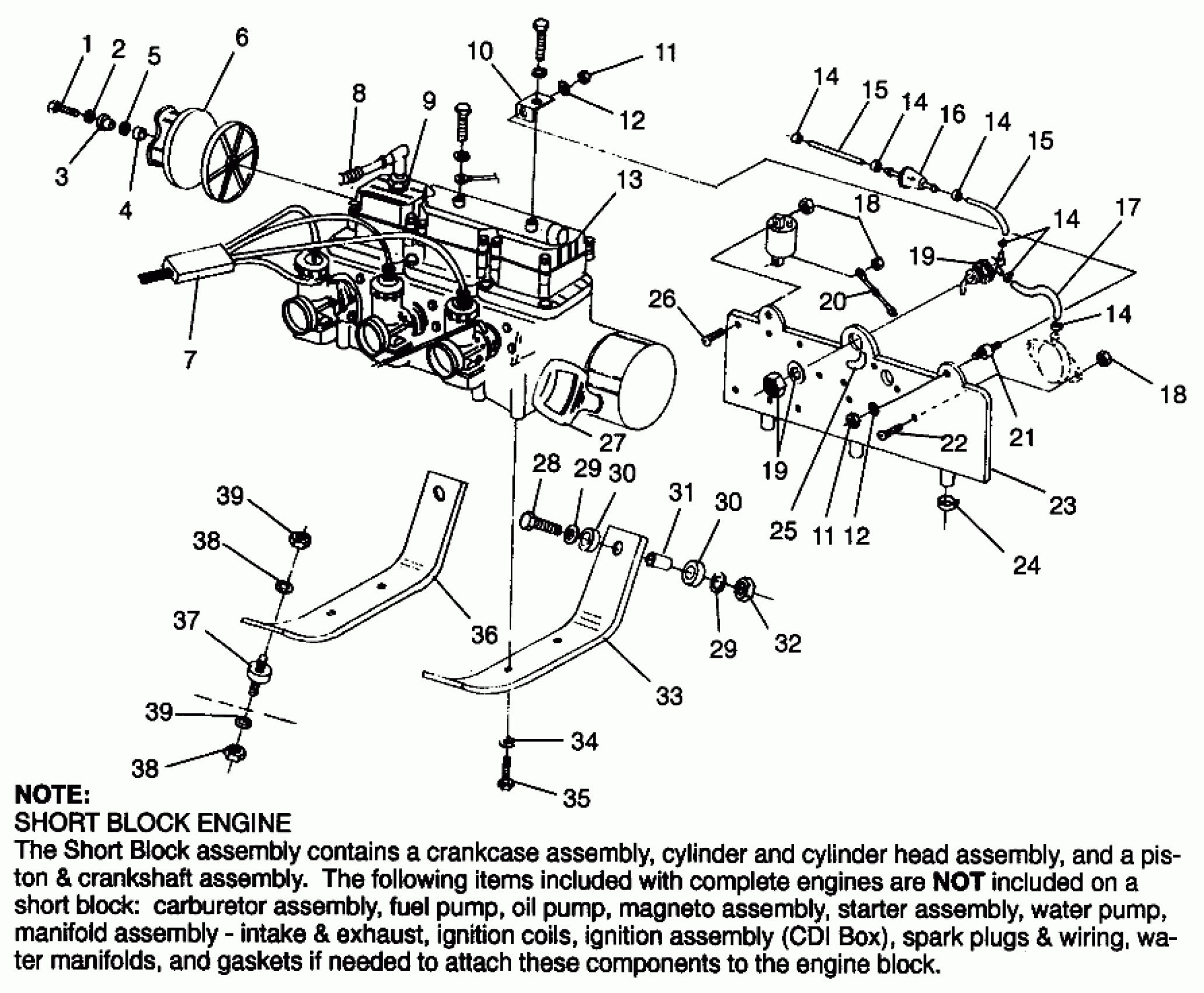

Polaris 600 XCR SP - 0965677 ENGINE MOUNTING 600 XCR SP 0965677 and EUROPEAN 600 XCR SP E965677 (4932063206C004) Diagram
#
1
SCREW
7512595
Unavailable
2
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
3
WASHER,CLUTCH RETAIN.
5010287
$12.99
4
SPACER,CLUTCH BOLT
5020513
$44.99
5
O RING,(10)
5410507
$1.49
6
Asm., Drive Clutch (See Pg., Ref.)
-------
Unavailable
7
CABLE,THROTTLE,W/OIL
7080623
Unavailable
8
TUBING,CONVOLUTED
5521147
Unavailable
9
SPARKPLUG(8)
3070165
$3.99
10
BRKT,HDWR.MOUNT Substituted by 5241179-067
5241179
Unavailable
11
NUT HEX(10)
7542105
$3.99
11
NUT HEX(10)
7542105
$3.99
12
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
12
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
13
ENG.(S.B.)EC59PL-01 [No Longer Available]
3085231
Unavailable
14
CLAMP,SPRING,(10)
7080534
$1.59
14
CLAMP,SPRING,(10)
7080534
$1.59
14
CLAMP,SPRING,(10)
7080534
$1.59
14
CLAMP,SPRING,(10)
7080534
$1.59
14
CLAMP,SPRING,(10)
7080534
$1.59
15
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
15
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
16
FILTER FUEL,(10)
2530008
$4.84
17
FUEL LINE, 5 FT. Substituted by 8450044-153
8450044-156
Unavailable
18
NUT(10)
7542124
Unavailable
18
NUT(10)
7542124
Unavailable
19
VALVE,FUEL SHUTOFF
7051016
Unavailable
19
VALVE,FUEL SHUTOFF
7051016
Unavailable
20
STRAP,GND,(IGN.COIL)
5211663
$3.51
21
MOUNT,CARB.
3110050
$12.99
22
SCREW(10)
7512279
$1.49
23
MOUNT,ENG.HARDWARE
5432094
$21.43
24
CLAMP(10)
7080533
$3.99
25
DECAL,FUEL SHUT-OFF
7073869
Unavailable
26
BOLT ,(10) Substituted by 7517377
7512239
Unavailable
27
HANDLE,RECOIL Substituted by 5431499-070
5431499
Unavailable
28
SCREW(10)
7512530
$5.59
29
WASHER(10)
7555740
$1.59
29
WASHER(10)
7555740
$1.59
30
MOUNT, ENGINE
5410390
Unavailable
30
MOUNT, ENGINE
5410390
Unavailable
31
SPACER, (MTR.MT.)
5332778
Unavailable
32
NUT,FLANGE(10)
7542522
$5.59
33
PLATE,RH,ENGINE Substituted by 2201041
5240831
Unavailable
34
WASHER LOCK(10)
7553101
$3.99
35
BOLT(10)
7512575
Unavailable
36
PLATE,LH,ENGINE Substituted by 2201041
5240830
Unavailable
37
MOUNT,RUBBER
3110047
Unavailable
38
NUT LOCK(10)
7542411
$3.19
38
NUT LOCK(10)
7542411
$3.19
39
WASHER(10) Substituted by 7555806
7555720
$0.79
39
WASHER(10) Substituted by 7555806
7555720
$0.79
