DRIVE TRAIN 600 XCR SP 0965677 and EUROPEAN 600 XCR SP E965677 (4932063206C003)

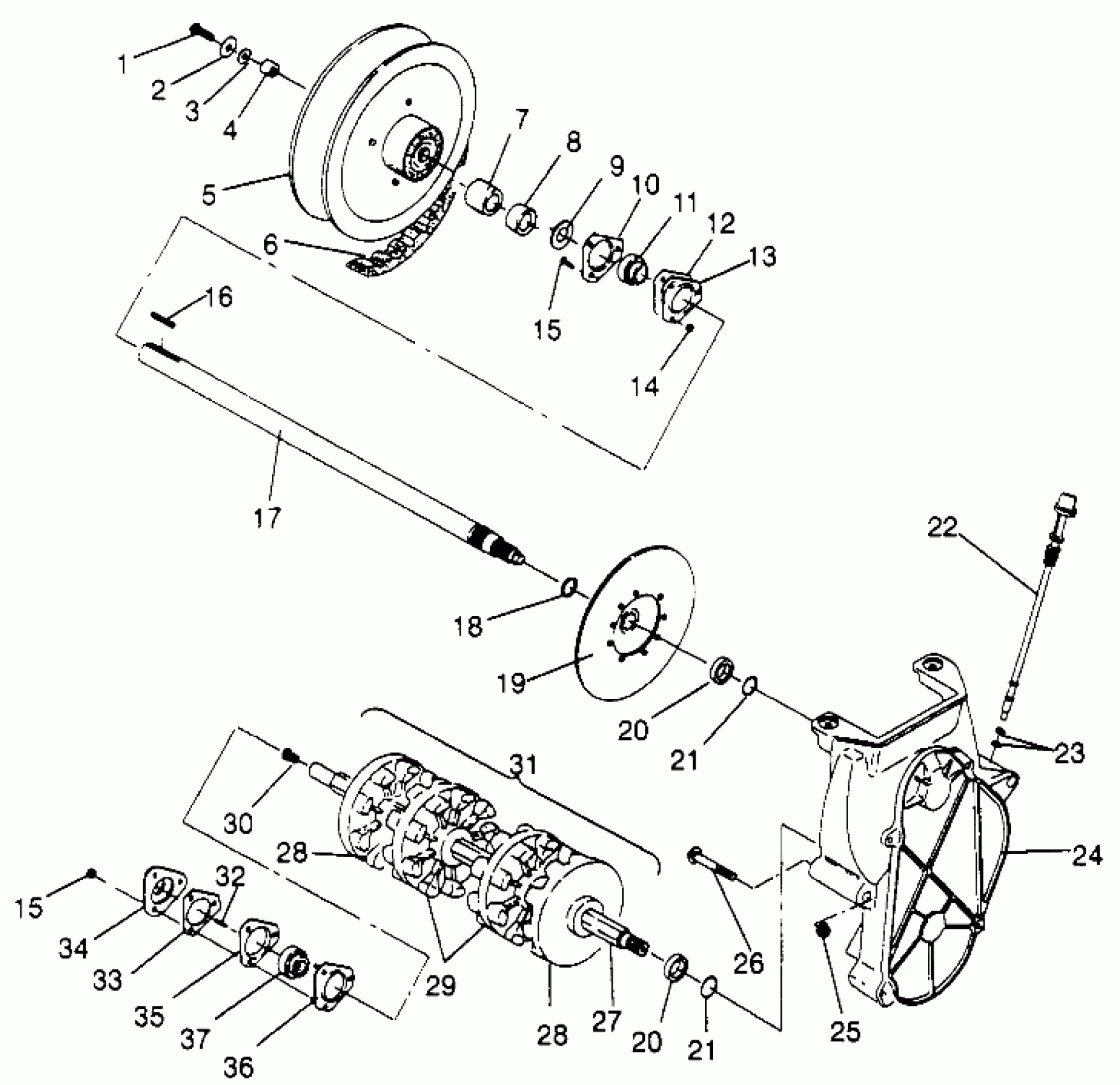

Polaris 600 XCR SP - 0965677 DRIVE TRAIN 600 XCR SP 0965677 and EUROPEAN 600 XCR SP E965677 (4932063206C003) Diagram
#
1
BOLT(10)
7515369
$4.79
2
WASHER FLAT(10)
7555701
$3.99
3
WASHER(10)
7555734
Unavailable
4
SPACER
5020291
Unavailable
5
Asm., Driven Clutch (See Pg. C2, Ref 15)
-------
Unavailable
6
BELT,DRIVE(5)
3211066
$109.99
7
SPACER (.63)
5020652
Unavailable
8
SPACER (.38)
5020837
$24.99
9
WASHER SPECIAL(10)
7556509
Unavailable
10
FLANGE RD,RELUBE W/ZERK
5241359
$32.37
11
BEARING,1"X52MM,SPHER.
3514523
Unavailable
12
GASKET,JACKSHAFT,BLK.
5811095
$2.41
13
FLANGETTE
5222751
$16.44
14
BOLT(10) Substituted by 7512377
7512394
Unavailable
15
NUT-5/16-18 NYLOK-Y
7542324
$1.49
15
NUT-5/16-18 NYLOK-Y
7542324
$1.49
16
KEY(10)
7721116
$12.94
17
JACKSHAFT ASM,LONG,PRESS,BLK (Incl. 18)
1332179-067
$228.56
18
RING, RETAINING(10)
7710422
$3.99
19
DISC ASM, BRAKE
1910086
Unavailable
20
SLEEVE, SEAL
5020588
$23.99
20
SLEEVE, SEAL
5020588
$23.99
21
O RING,(10)
5410613
$1.99
21
O RING,(10)
5410613
$1.99
22
DIPSTICK Substituted by 1332143
5431419
Unavailable
23
O-RING
5410675
$1.60
24
Chaincase, Top Mount Brake (See Pg. A23, Ref. 23)
-------
Unavailable
25
NUT(10)
7542423
$3.99
26
BOLT(10)
7515428
$4.79
27
SHAFT,DRIVE,H.S.PRSBRG.
6230091
Unavailable
28
SPROCKET, HALF,9T (1 Side)
5430993
Unavailable
28
SPROCKET, HALF,9T (1 Side)
5430993
Unavailable
29
SPROCKET, 9T
5430571
Unavailable
30
BUSHING METAL SPEEDO
3280019
$11.99
31
DRIVESHAFT ASM,HD,PRESS BRG Substituted by 1590258 (Incl. 27-30, 36, 37)
1590253
Unavailable
32
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
33
GASKET,DRIVE ADAPTOR,(10)
5830012
$2.41
34
ADAPTER,DRIVE,W/ZERK
3280116
$101.17
34
ADAPTER,DRIVE,W/ZERK (PT)
3280197
$93.08
35
FLANGETTE Substituted by 5243529
5241178
$13.75
36
FLANGETTE ASM,,W/ SCREWS Substituted by 1012945
1012434
Unavailable
37
BEARING,1"X52MM,SPHER.
3514524
Unavailable
