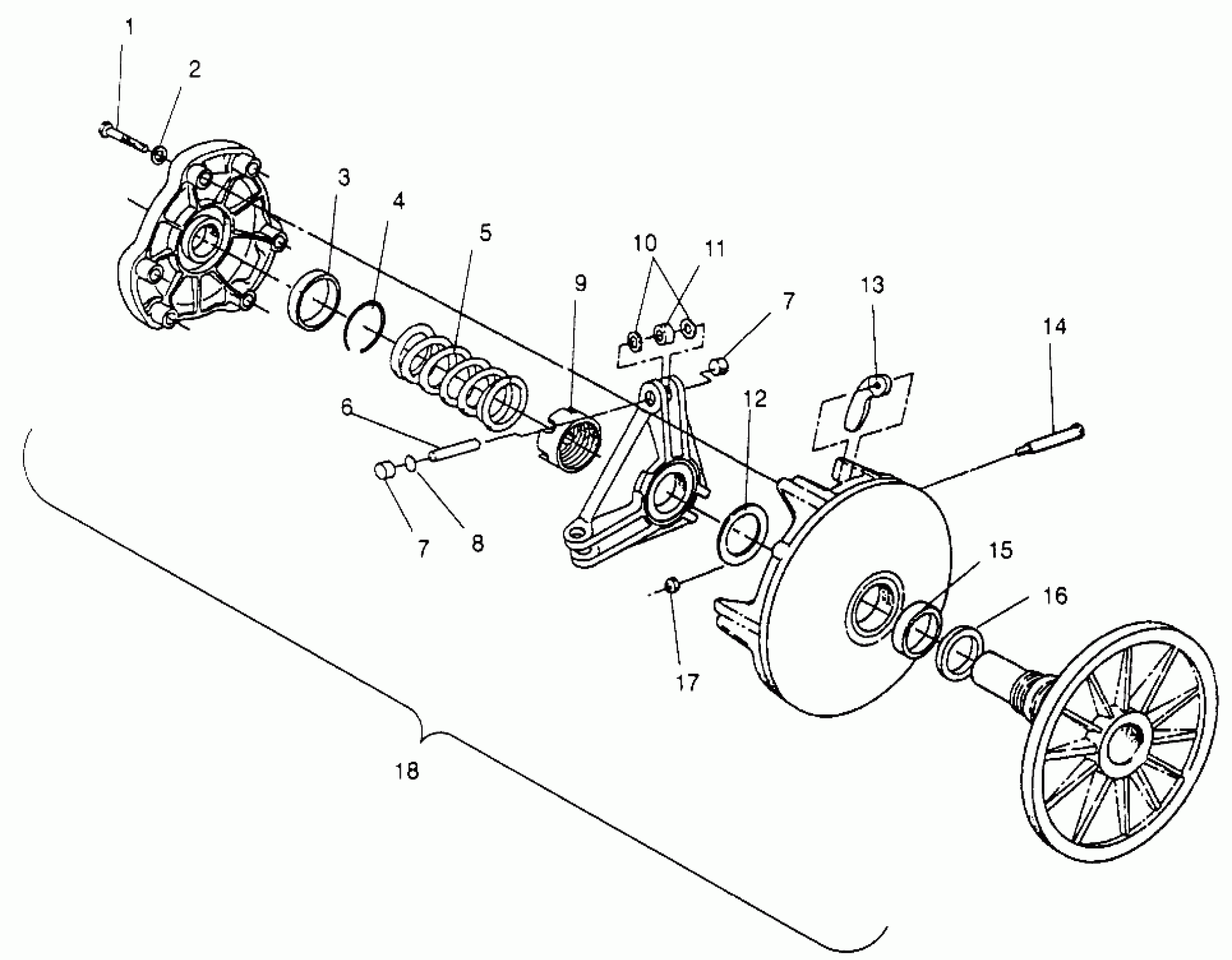

Polaris 600 XCR SP - 0965677 DRIVE CLUTCH 600 XCR SP 0965677 and EUROPEAN 600 XCR SP E965677 (4932063206C001) Diagram

#

Description
Price

-

KIT,CLUTCH UPDATE (Incl. 6-8, 10, 11, 14)

2200386

$161.89

1

BOLT,(10)

7512265

$3.99

2

LOCK WASHER(10)

7552801

$1.59

3

BEARING, COVER,(10)

3576510

$9.59

4

RING-RETAINING,COVER

7710417

$1.49

5

SPRING-(BLUE) (Blue)

7041080

$56.65

6

PIN-ROLLER

5020422

$2.39

7

BUTTON, GUIDE,(10)

5430445

$6.39

7

BUTTON, GUIDE,(10)

5430445

$6.39

8

Kit - Shim, Drive Clutch

2200387

$24.27

9

NUT-JAM

5020425

$23.99

10

WASHER,MULTILUBE

5430945

$1.59

11

ASM-ROLLER AND BUSHING

1321457

$40.46

12

SPACER(10) (.050mm)

5210754

Unavailable

12

SPACER(10) (.020mm)

5210752

Unavailable

12

SPACER(10) (.032mm)

5210753

Unavailable

13

WT/BUSH.ASM,10 A-L(6) (10-60)

1321531

$54.99

14

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

15

SLEEVE, BEARING

3576502

$23.99

16

INSERT-MOVEABLE

5010188

$7.99

17

NUT FLEX LOC(10)

7541906

$3.19

18

CLUTCH,BASIC#53(DRIVE) Substituted by 1321717 (Less 5, 13)

1321654

Unavailable
