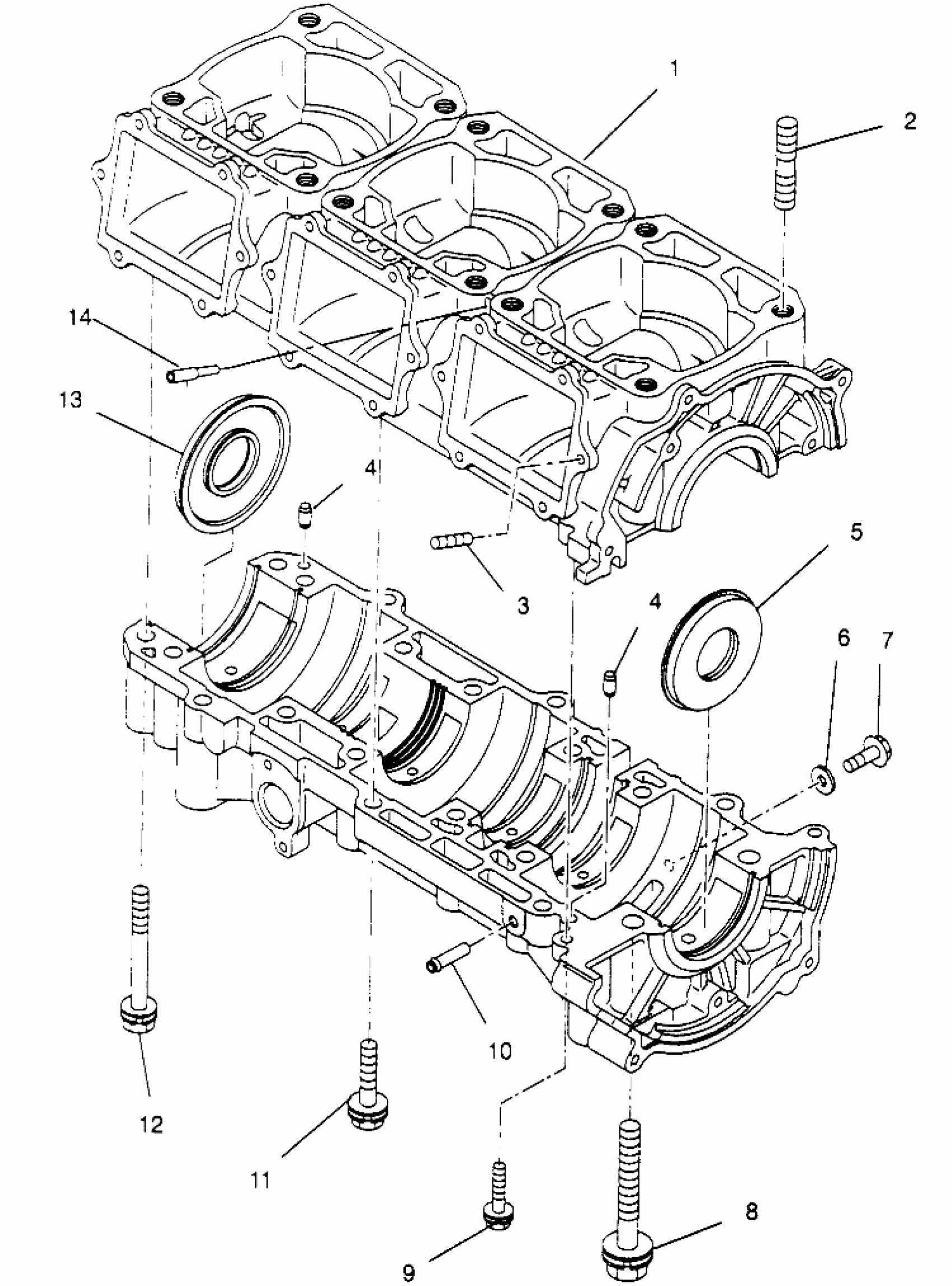

Polaris 600 XCR SP - 0965677 CRANKCASE 600 XCR SP 0965677 and EUROPEAN 600 XCR SP E965677 (4932063206C011) Diagram

#

Description

Price

1

CRANKCASE (Incl. 2-4, 8-12)

3085239

$500.89

2

Stud

3084519

$12.39

3

STUD Substituted by 3086772

3084520

$3.81

4

PIN, DOWEL Substituted by 3086838

3080103

$7.14

4

PIN, DOWEL Substituted by 3086838

3080103

$7.14

5

Seal, Oil

3085105

Unavailable

6

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

7

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

8

BOLT&WASHER ASM.

3085240

$5.43

9

BOLT&WASHER ASM.

3082038

$3.99

10

PIPE, PULSE

3083798

$9.52

11

BOLT&WASHER ASM.

3084225

$3.99

12

BOLT&WASHER ASM.

3084670

Unavailable

13

SEAL, OIL

3085241

Unavailable

14

PIPE, BREATHER (Breather)

3084128

Unavailable
