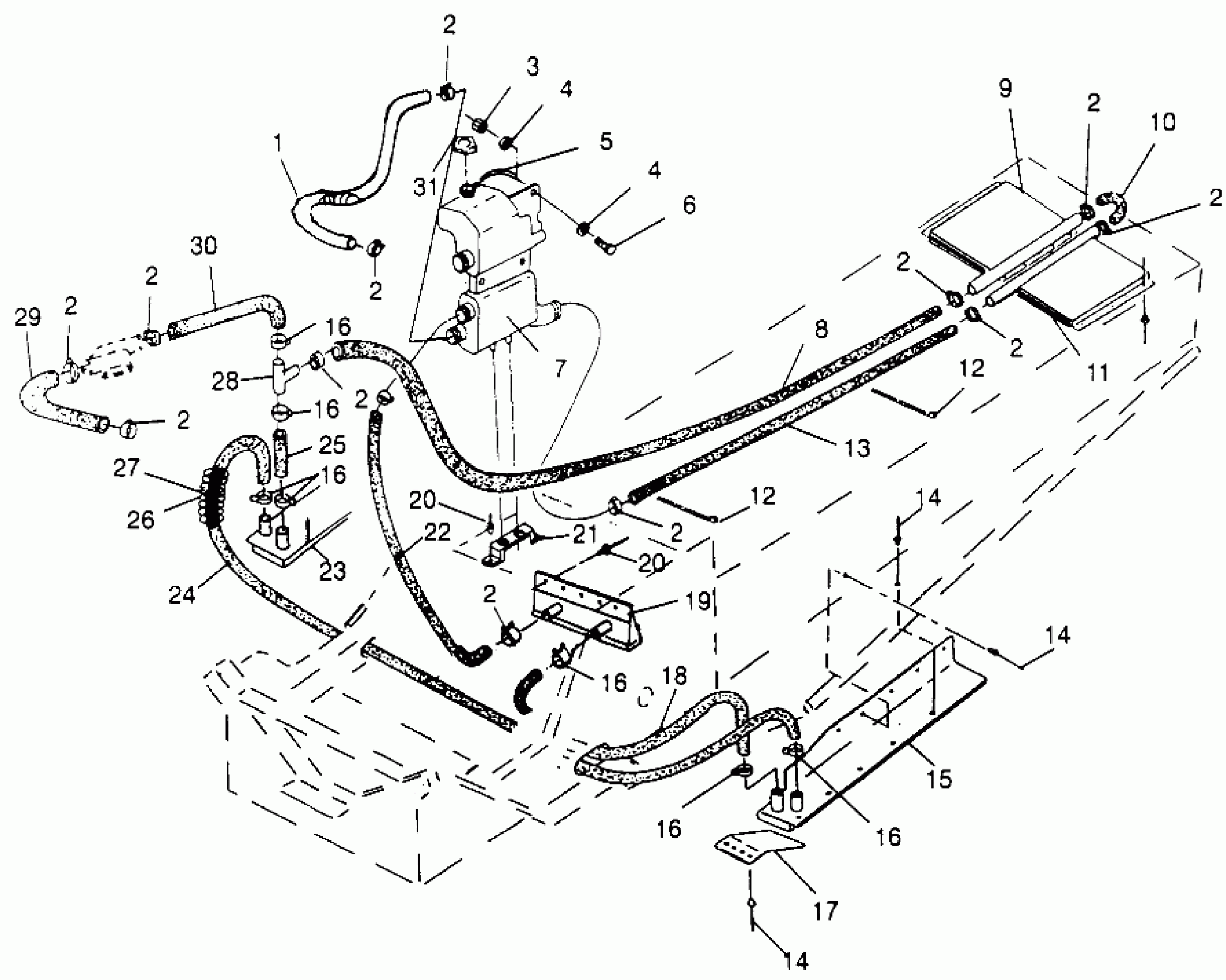

Polaris 600 XCR SP - 0965677 COOLING SYSTEM 600 XCR SP 0965677 and EUROPEAN 600 XCR SP E965677 (4932063206B010) Diagram

#

Description
Price

1

FITTING, OUTLET

7052042

$8.99

2

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

2

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

2

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

2

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

2

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

2

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

2

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

2

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

2

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

2

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

2

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

2

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

3

NUT-LOCK(10)

7542122

$1.49

4

WASHER,WROUGHT(10)

7558302

$1.59

4

WASHER,WROUGHT(10)

7558302

$1.59

5

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$84.99

6

BOLT(10)

7512240

$3.99

7

TANK,COOLANT,(680) Substituted by 5432542

5432271

Unavailable

8

HOSE,3-WAY,R.COOLER

5410962

Unavailable

9

EXCHANGER,COOL.REAR Substituted by 2511301

2511254

$226.99

10

HOSE,COOLING

5410758

Unavailable

11

TAPE,35FT,SEAL,R.COOL.

5811252

Unavailable

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

13

HOSE, COOLANT Substituted by 8450048-87

8450048

Unavailable

14

RIVET,INTERLOCK,B(50)

7661638

$1.49

14

RIVET,INTERLOCK,B(50)

7661638

$1.49

14

RIVET,INTERLOCK,B(50)

7661638

$1.49

15

COOLER,LH,SIDE(XTRA 10) Substituted by 1240059

2511257

$144.99

16

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

16

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

16

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

16

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

16

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

16

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

17

GUARD, COOL.EXT.

5222863

$32.99

18

HOSE-CROSSOVER (Short)

5410350

Unavailable

19

EXCHANGER,COOL.CTR.

2511239

Unavailable

20

RIVET-3/16-.090-.290

7661637

$1.49

20

RIVET-3/16-.090-.290

7661637

$1.49

21

BRKT,SURGE TANK,COINED

5241331

$118.99

22

HOSE,CTR.COOLER/MID SURGE

5411071

Unavailable

23

COOLER,RH,SIDE(XTRA 10)

2511258

$227.99

24

HOSE-CROSSOVER

5410324

Unavailable

25

HOSE,WATER,305 CM.

8450050-305

Unavailable

26

SPRING,HOSE RETAINER

7041079

$4.95

27

TUBING,CONVOL,1"X2.5"

5521242

Unavailable

28

CONNECTOR,3/4"SPLICE,BARBED

7052092

$8.79

29

HOSE,ENG/BRAKE COOL.

5411003

Unavailable

30

HOSE,R.COOLER,3-WAY

5410845

$13.19

31

CAP, PRESSURE,(13 LB)

2511270

$24.27
