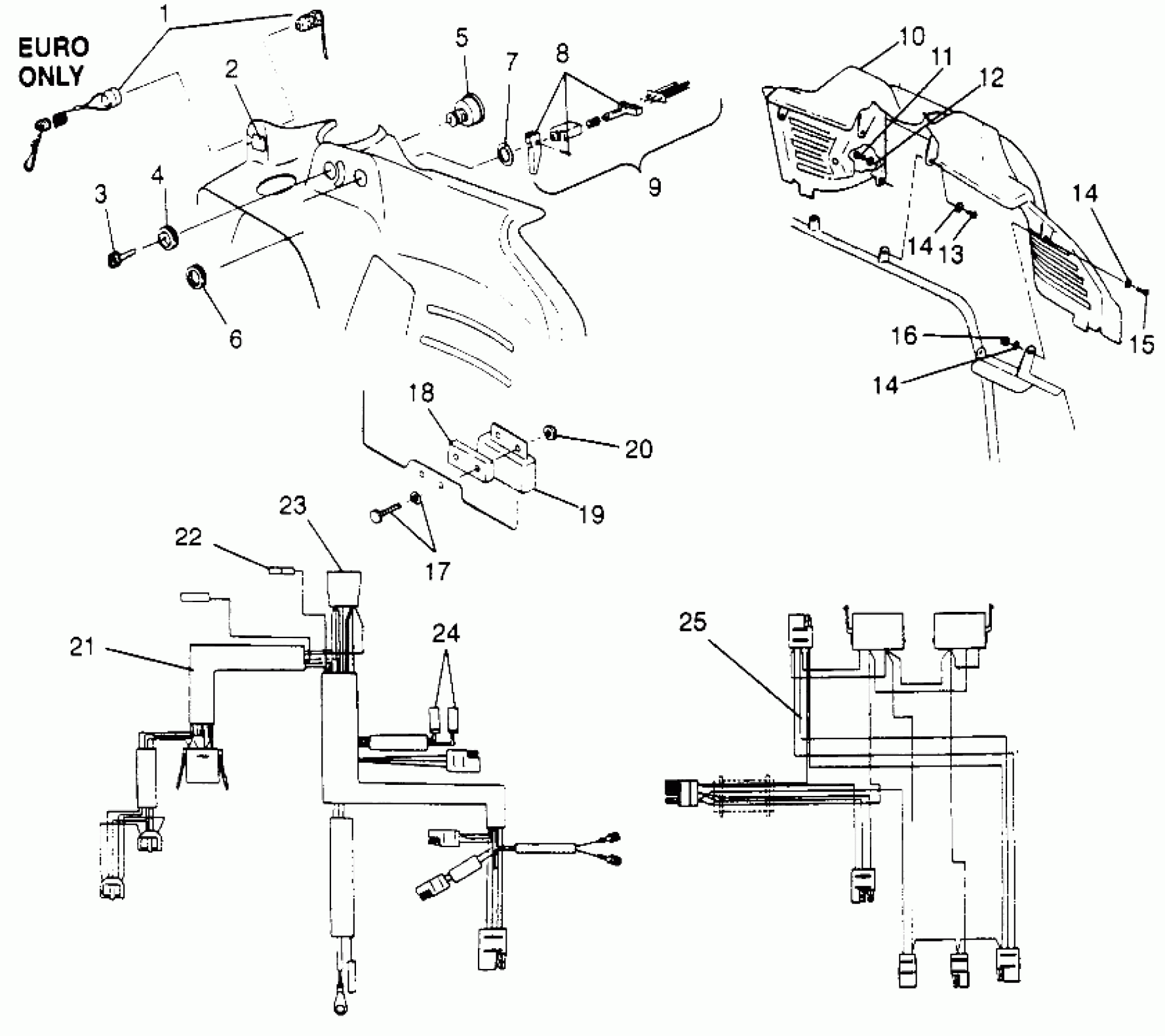

Polaris 600 XCR SP - 0965677 CONSOLE and WIRE HARNESS 600 XCR SP 0965677 and EUROPEAN 600 XCR SP E965677 (4932063206A011) Diagram

SWITCH,TETHER Substituted by 2870668 (EURO)

4110156

$84.99

LABEL, 'U.S.A.'

7073024

Unavailable

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly]

5410611

Unavailable

NUT, IGN.SWITCH(10)

7543101

Unavailable

KIT,IGN. SWITCH (Incl. 3)

2200357

Unavailable

Nut

7080229

$19.99

WASHER-LOCK(10)

7571610

$3.99

KIT-CHOKE CONTROL

2200188

$24.27

CABLE, CHOKE

7080283

$109.99

CONSOLE,BASIC

5431781

Unavailable

SCREW(10)

7512069

Unavailable

WASHER(10)

7555792

$4.79

BOLT(10)

7512297

$5.59

WASHER(10) Substituted by 7558301

7555776

Unavailable

WASHER(10) Substituted by 7558301

7555776

Unavailable

WASHER(10) Substituted by 7558301

7555776

Unavailable

SCREW(10)

7512252

Unavailable

NUT(10)

7542124

Unavailable

SCREW-SEMS(10)

7511848

$3.99

SPACER,REGULATOR

5211573

Unavailable

REGULATOR,(14.3VAC),LR-7

4060123

Unavailable

NUT(10)

7541925

$1.49

HARNESS,MAIN

2460517

Unavailable

HOUSING

4020133

Unavailable

Housing w/Receptacle

4020057

$3.51

Housing

4020153

$1.49

HARNESS,HANDLEBAR NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A, B, C, D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot code

2460506

Unavailable
