Description

Price

1

HOLDER,GUIDE

3130199

$28.32

2

SPRING,PLUNGER

3130006

$8.89

3

PLUNGER ASM, STARTER

3130328

$32.37

4

CLIP

3130613

Unavailable

4

CLIP

3130613

Unavailable

5

HOSE

3130659

Unavailable

6

NIPPLE

3130611

Unavailable

7

HOSE

3130605

Unavailable

7

HOSE

3130605

Unavailable

8

CARBURETOR #2 (Center Side) (Incl. 1-36)

3130657

$374.99

8

CARBURETOR #1 (MAG & PTO Side) (Incl. 1-8, 10-36)

3130656

$263.89

8

CARBURETOR #2 (Center Side) (Incl. 1-36)

3130657

$374.99

8

CARBURETOR #1 (MAG & PTO Side) (Incl. 1-8, 10-36)

3130656

$263.89

9

CAP (Center Side Only)

3130658

Unavailable

10

SPRING,AIR ADJUST

3130012

$8.89

11

SCREW,AIR

3130011

$19.99

12

SPRING,THROTTLE ADJ. (Throttle Adjuster)

3130010

$8.89

13

SCREW,THROTTLE STOP

3130009

$19.99

14

JET,PILOT,#40(10) (#40)

3130067

$10.99

15

PLATE

3130243

Unavailable

16

RING,CARB

3130232

Unavailable

17

JET,MAIN,HX.HD#400(10) (#400)

3130141

$7.27

18

GASKET,FLOAT CHAMBER (Float Chamber)

3130236

$12.13

19

CAP,(10)

3130237

$4.03

19

CAP,(10)

3130237

$4.03

20

FLOAT ASM

3130021

$40.46

20

FLOAT ASM

3130021

$40.46

21

SCREW

3130056

$3.19

22

NIPPLE

3130573

$32.37

23

O RING

3130239

Unavailable

24

ARM,FLOAT

3130048

Unavailable

25

PIN, FLOAT

3130361

$8.89

26

VALVE ASM,NEEDLE

3130643

$56.65

27

WASHER(10) (Needle Valve)

3130047

$4.84

28

JET,AIR,(PAJ1) (PAJ1)

3130256

Unavailable

29

CAP

3130479

$14.56

30

NEEDLE JET (247)

3130477

$19.97

31

VALVE,THROTTLE,(2.5) (2.5)

3130606

Unavailable

32

JET NEEDLE

3130476

$24.27

33

E-RING,(10)

3130508

$6.46

34

PLATE, THROTTLE (Throttle) (Center Side)

3130054

$6.46

34

Desc not available Substituted by 3130045 (Throttle) (MAG & PTO Side)

3081400

Unavailable

35

SPRING,THROTTLE (Throttle)

3130444

Unavailable

36

TOP ASM. Note: A; qty's. are per Carb.

3130644

Unavailable

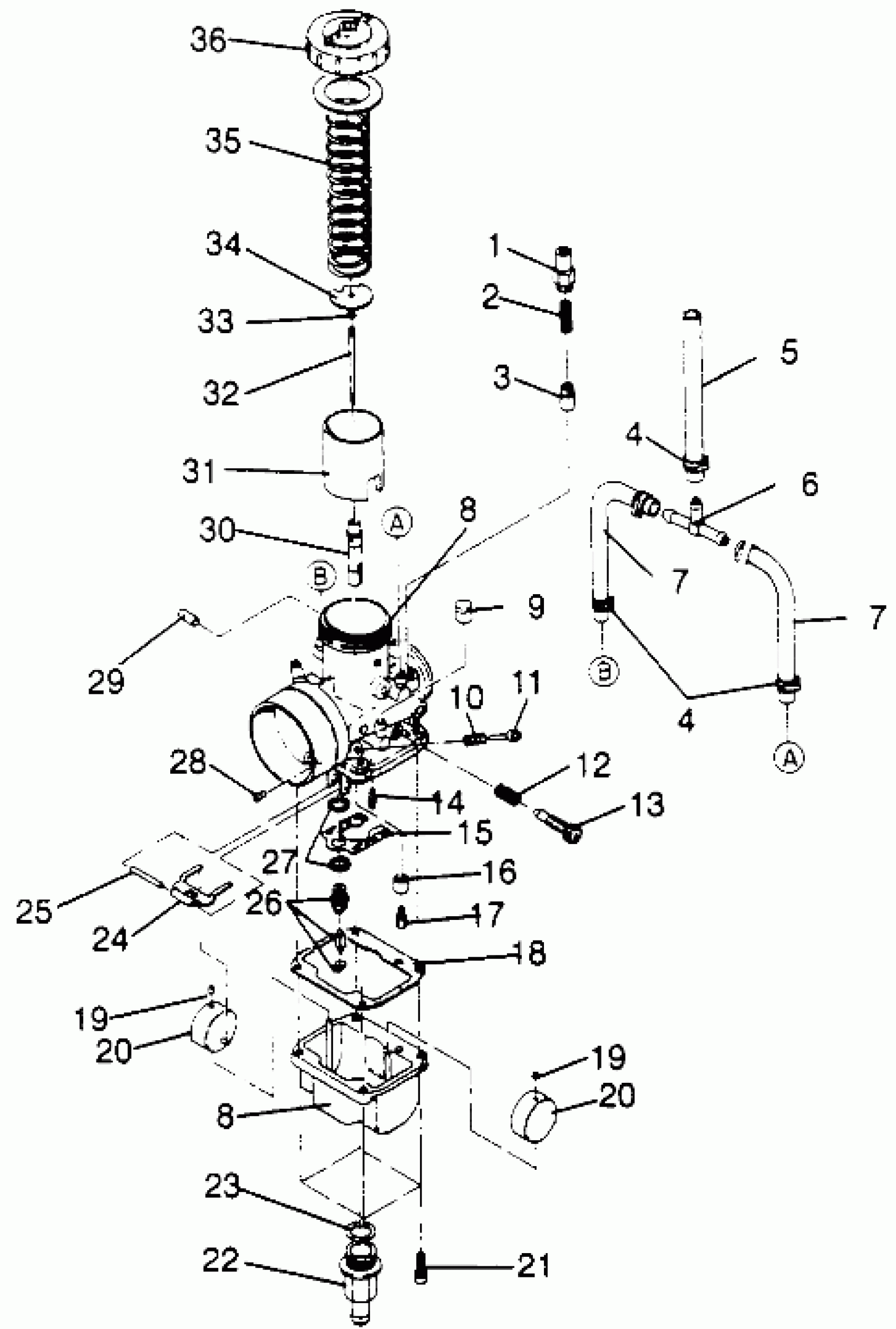

Polaris 600 XCR SP - 0965677 CARBURETOR 600 XCR SP 0965677 and EUROPEAN 600 XCR SP E965677 (4932063206D005) Diagram
