TUNNEL 600 XCR 0961676 and EUROPEAN 600 XCR E961676 (4932123212A005)

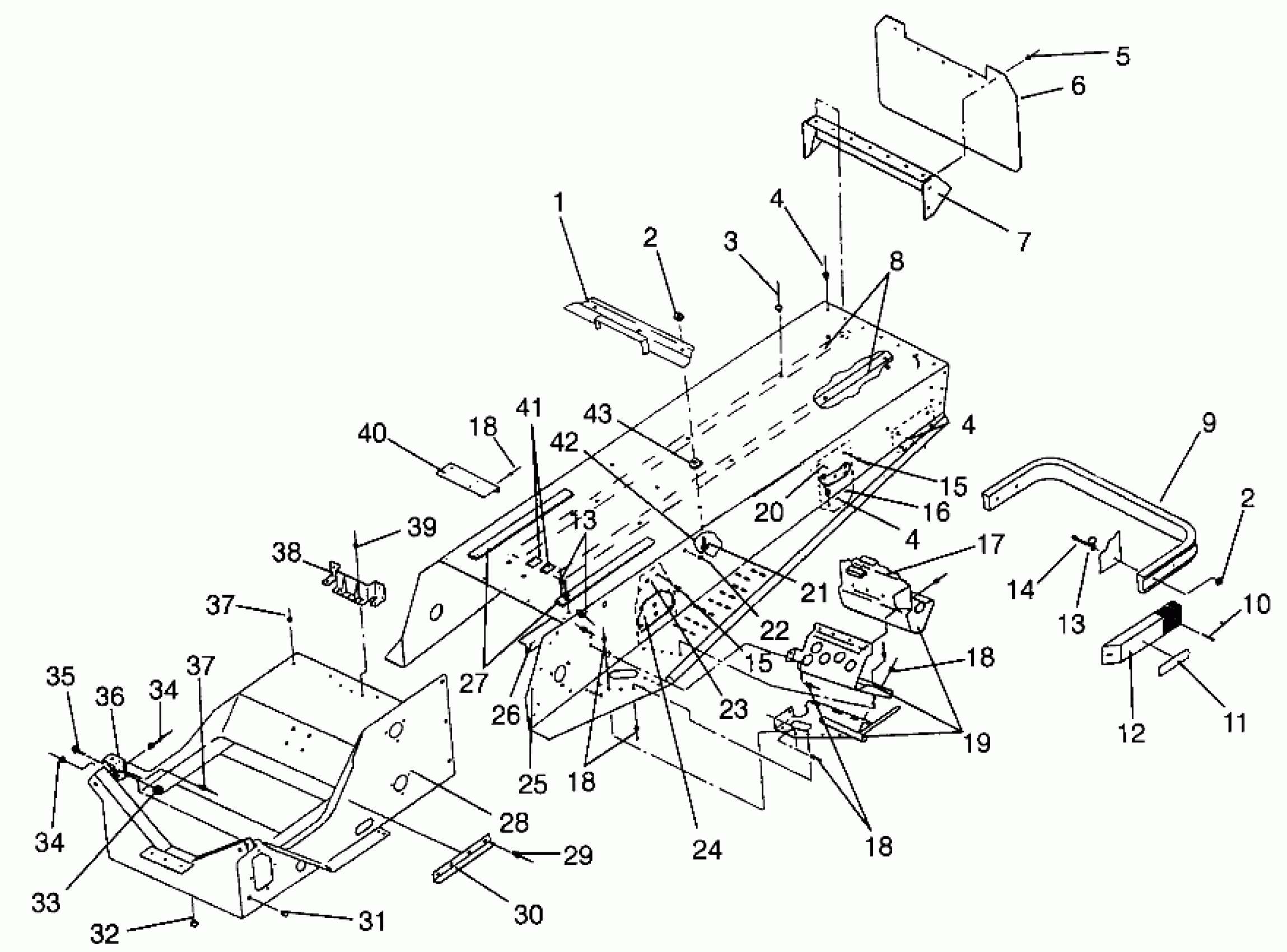

Polaris 600 XCR - 0961676 TUNNEL 600 XCR 0961676 and EUROPEAN 600 XCR E961676 (4932123212A005) Diagram
#
1
STRAP,GASTANK,BLK
1011732-067
Unavailable
2
NUT-LOCK(10)
7542122
$1.49
2
NUT-LOCK(10)
7542122
$1.49
3
RIVET,3/16X.402(50)
7621432
$1.49
4
RIVET ,(50)
7661829
Unavailable
4
RIVET ,(50)
7661829
Unavailable
4
RIVET ,(50)
7661829
Unavailable
5
POP RIVET(50)
7621418
$1.49
6
FLAP,SNOW,(XTRA-10) Substituted by 5432149-1106
5432149
Unavailable
7
PANEL,TUNNELBACK
5241053-067
$308.99
8
STRIP-WEAR
5510130
Unavailable
9
BUMPER,REAR,STD.
5224674-067
Unavailable
10
SCREW(10)
7511863
$1.99
11
REFLECTOR RED
2670070
$9.91
12
CAP, BUMPER, BLK.
5430930-070
Unavailable
13
WASHER(10)
7558301
$1.49
13
WASHER(10)
7558301
$1.49
14
BOLT(10)
7512240
$3.99
15
RIVET,(50)
7661825
$1.49
15
RIVET,(50)
7661825
$1.49
16
PAD,LH,R.SUSP.
5241268-067
Unavailable
16
PAD,RH,R.SUSP.
5241269-067
Unavailable
17
EXTRUSION,CLUTCHGUARD
5521238
$6.46
18
RIVET,INTERLOCK,B(50)
7661638
$1.49
18
RIVET,INTERLOCK,B(50)
7661638
$1.49
18
RIVET,INTERLOCK,B(50)
7661638
$1.49
18
RIVET,INTERLOCK,B(50)
7661638
$1.49
19
FOOTREST ASM, LH
1011861
Unavailable
19
FOOTREST ASM,RH,BLK.
1011892
Unavailable
19
FOOTREST ASM,RH,BLK(EUROPE) (Euro)
1011908
Unavailable
20
PAD,R.SUSP,OUTER,BLK
5211655-067
Unavailable
21
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
22
SNAP-MALE(10)
7080227
Unavailable
23
PAD,LH,FR.SUSP.MTG. Substituted by 5244287-067
5241303-067
Unavailable
23
PAD,RH,FR.SUSP.MTG. Substituted by 5244287-067
5241304-067
Unavailable
24
PAD,FRT.SUSP,OUTER,BLK
5211654-067
Unavailable
25
TUNNEL,LIQ,BLK. (Incl. 7, 16, 20, 23, 24, 26)
1012418
$366.65
26
BRACE,REINF.TUNNEL
5240242
Unavailable
27
PAD-GAS TANK
5810063
$4.95
28
BULKHEAD
1012258-067
$396.83
29
RIVET,INTERLOCK(50) Substituted by 7661130
7661639
Unavailable
30
GUARD,ADAPTER GUIDE
5222857
$12.94
31
PLUG, HOLE(10)
7080416
$5.65
32
PLUG-HOLE
7080398
$4.84
33
NUT LOCK(10)
7542321
$1.49
34
RIVET(50)
7621452
$1.49
34
RIVET(50)
7621452
$1.49
35
SCREW(10)
7512307
$3.99
36
SUPPORT,MUFFLER,BLK. Substituted by 5242798-067
1011831-067
Unavailable
37
RIVET-3/16-.090-.290
7661637
$1.49
37
RIVET-3/16-.090-.290
7661637
$1.49
38
BRACKET, GASTANK
5221932-067
Unavailable
39
RIVET(50)
7621301
$3.99
40
BRKT, TOOL BOX
5220973
Unavailable
41
DECAL,TOP,TUNNEL STRIP
7073978
Unavailable
42
BOLT(10)
7512193
$2.39
43
SPEED NUT(10)
7670021
$6.99
