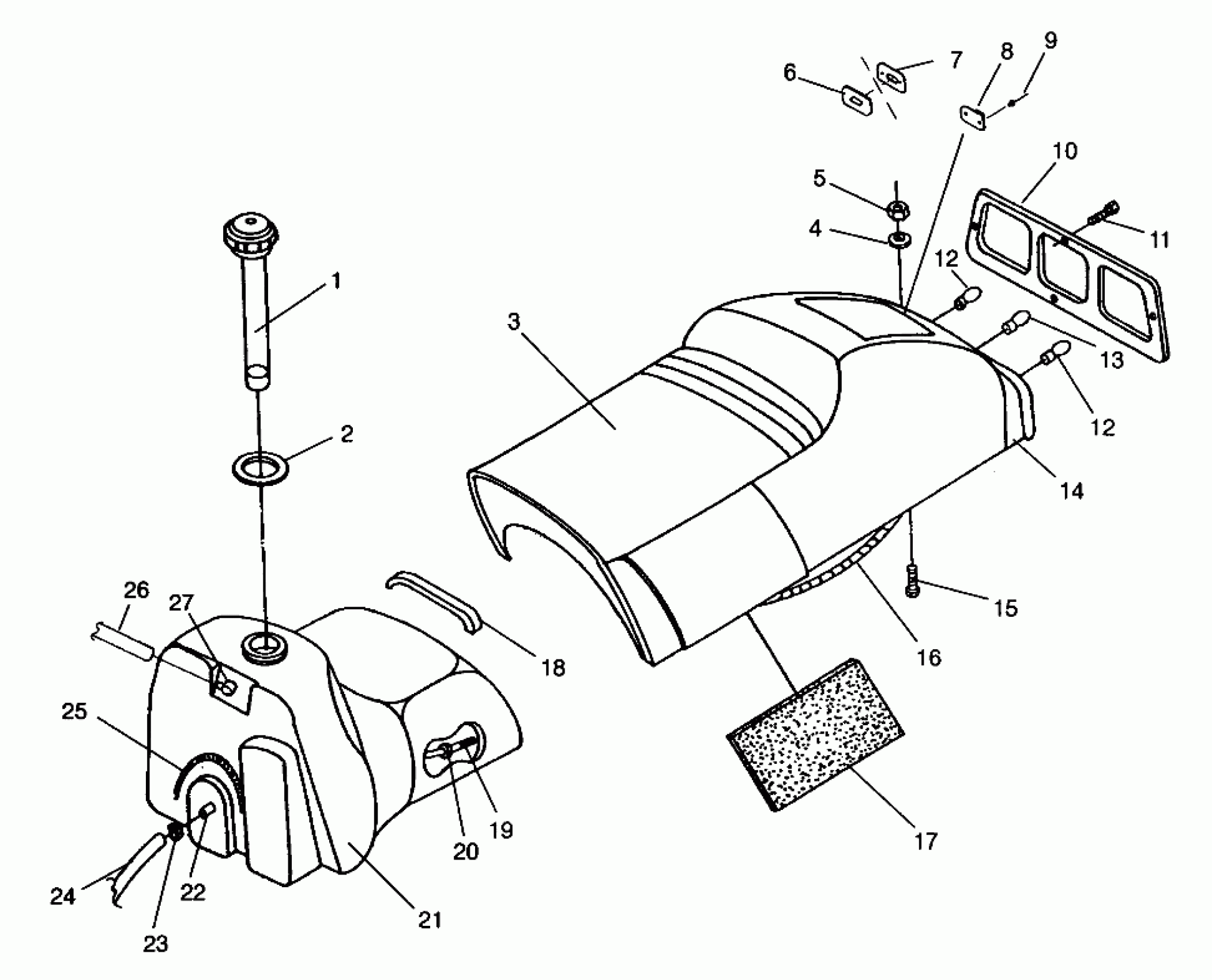

Polaris 600 XCR - 0961676 SEAT and GAS TANK 600 XCR 0961676 and EUROPEAN 600 XCR E961676 (4932123212A006) Diagram

KIT,FUELTANK,BLK.(SP) (Incl. 19-22, 24, 27)

2200765

Unavailable

GASKET, GAS CAP

5810513

$8.89

SEAT ASM, (SP) (Incl. 3, 6-14, 16, 17)

2681888

Unavailable

COVER,SEAT,(SP)

2681889

Unavailable

WASHER,TOOTHED,DISH(10)

7571630

Unavailable

NUT-LOCK(10)

7542122

$1.49

GROMMET,RELATCH,1",BOTT.(10)

7080550

Unavailable

GROMMET,RELATCH,1",TOP(10)

7080549

Unavailable

TWISTLOCK,RELATCH,1",W/HOLE(10)

7080548

Unavailable

RIVET(50)

7621337

$1.49

LENS,TAILLIGHT

5430423

Unavailable

SCREW(10)

7511840

Unavailable

BULB,TAILLIGHT(10)

4030024

$4.84

BULB,TAILLIGHT(10)

4030024

$4.84

Bulb, Brakelight

4030045

Unavailable

HOUSING,TAILLIGHT Substituted by 5433341

5431545

Unavailable

BOLT(10)

7512193

$2.39

Harness, Taillight

2460399

Unavailable

FOAM,SEAT PAD

5431981

Unavailable

CUSHION,TANK H.D.

5420126

Unavailable

FUELPICKUP,W/STRAINER

7052037

$12.94

RING, COMPRESSION(10)

7080402

$1.60

FUELTANK ASM. Substituted by 2200765 (Incl. 19, 20, 22, 26, 27)

2511236

Unavailable

FITTING - OUTLET(10)

7052023

$24.99

HOSE CLAMP, RED (Red)

7080003

$1.49

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

SPRING,TANK,(10)

7042020

$13.75

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

FITTING,90 DEG,1/8,(10)

7052095

$4.79
