REAR TORQUE ARM 600 XCR 0961676 and EUROPEAN 600 XCR E961676 (4932123212B012)

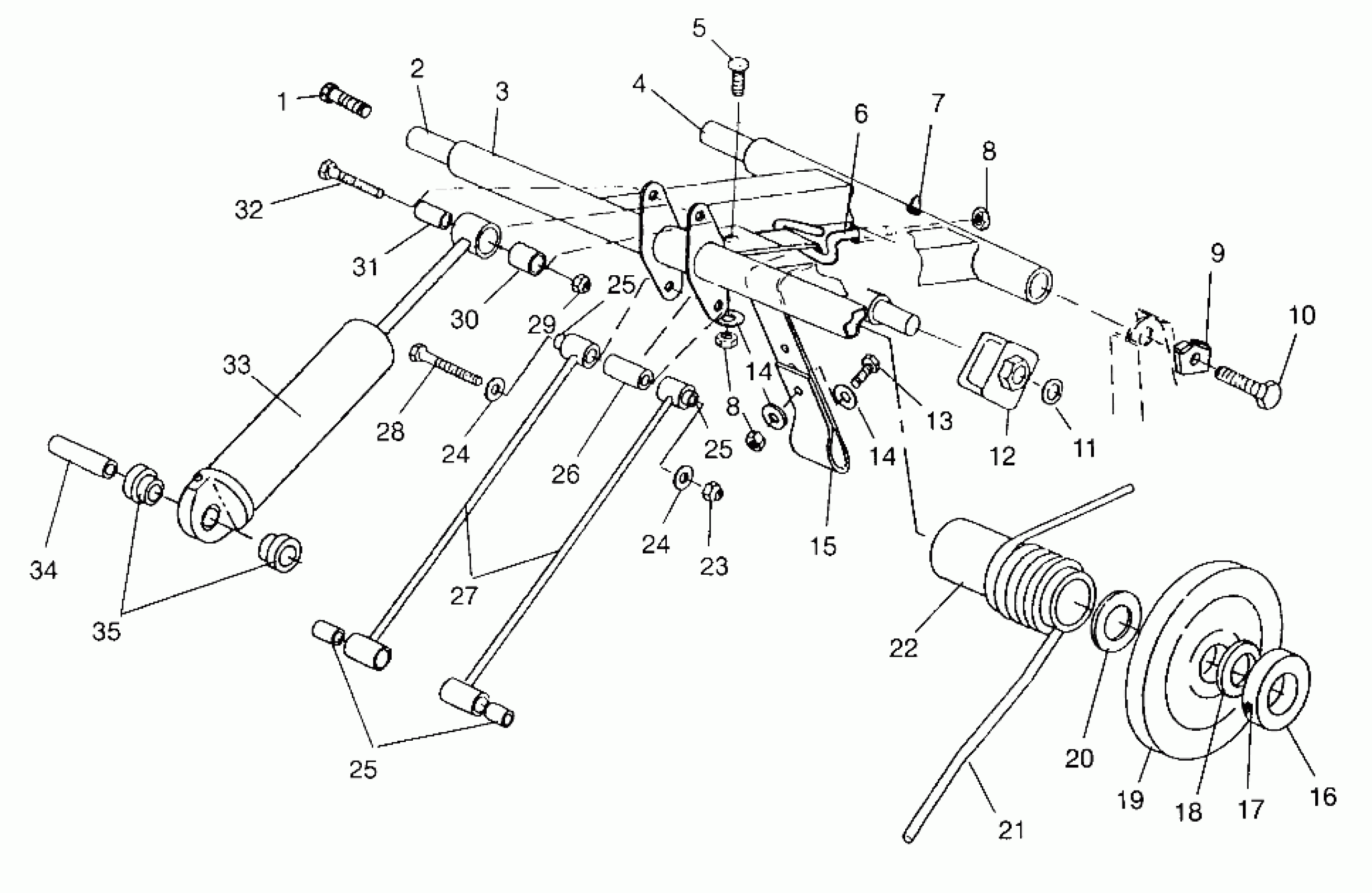

Polaris 600 XCR - 0961676 REAR TORQUE ARM 600 XCR 0961676 and EUROPEAN 600 XCR E961676 (4932123212B012) Diagram
#
1
BOLT,NYLOC,BLACK(10) Substituted by 7515432
7515493
Unavailable
2
SHAFT,R.TORQUE,UPPER
5020845
$63.99
3
ARM,R.TORQUE,BLK Substituted by 2200914 (X-10, Blk)
1541024-067
$68.19
4
SHAFT,LOW,RR,TORQUE
5020843
Unavailable
5
BOLT(10)
7512377
$4.79
6
BOLT,EYE
7010050
Unavailable
7
ZERK,FITTING,THREADED(10)
7080433
$1.49
8
NUT LOCK(10)
7542321
$1.49
8
NUT LOCK(10)
7542321
$1.49
9
LOCK,BOLT,MECHANICAL
5211649
Unavailable
10
BOLT(10)
7515526
$1.19
11
CLIP-PUSH ON
7080394
$2.39
12
ROLLER, SPRING ADJ.
5431168
Unavailable
13
BOLT(10)
7515307
$3.99
14
WASHER(10)
7555716
$1.59
14
WASHER(10)
7555716
$1.59
15
STRAP,LIMITER (RR, QA)
5411061
Unavailable
16
COLLAR-BRG. LOCK
5010155
Unavailable
17
SCREW-SET(10)
7512257
$3.99
18
WASHER, THRUST(10) Substituted by 7555871
7555862
$5.56
19
Wheel, Carrier
1543023
Unavailable
20
WASHER, THRUST(10) Substituted by 7555871
7555787
Unavailable
21
SPRING,LH,TORS(.421DIA) (.421)
7041461-067
Unavailable
21
SPRING,RH,TORS(.437/77) (437)
7041466-067
$107.99
21
SPRING,LH,TORS(.437/77) (437)
7041465-067
Unavailable
21
SPRING,RH,TORS(.406DIA) (.406) Std.
7041464-067
Unavailable
21
SPRING,RH,TORS(.421DIA) (421)
7041462-067
$113.32
21
SPRING,LH,TORS(.406DIA) (.406) Std.
7041463-067
Unavailable
22
SLEEVE,TORSION SPRING
5431923
$6.39
23
NUT LOCK(10)
7542411
$3.19
24
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
24
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
25
BUSHING,PIVOT TUBE
5020561
$1.59
25
BUSHING,PIVOT TUBE
5020561
$1.59
25
BUSHING,PIVOT TUBE
5020561
$1.59
26
Spacer
5333420
$11.99
27
ROD,SHOCK
1541015-067
Unavailable
28
BOLT(10)
7515472
$2.39
29
NUT FLEX-LOC(10)
7542303
$6.39
30
BUSHING
5430537
$3.99
31
BUSHING,R.SHOCK
5333030
Unavailable
32
BOLT(10)
7512329
$3.99
33
SHOCK,GAS,IFP,R.TRACK
7041444
Unavailable
34
BUSHING, (1.24)
5020640
Unavailable
35
BUSHING,SHOCK,.340
5431542
Unavailable
