FRONT SUSPENSION and SKI 600 XCR 0961676 and EUROPEAN 600 XCR E961676 (4932123212B001)

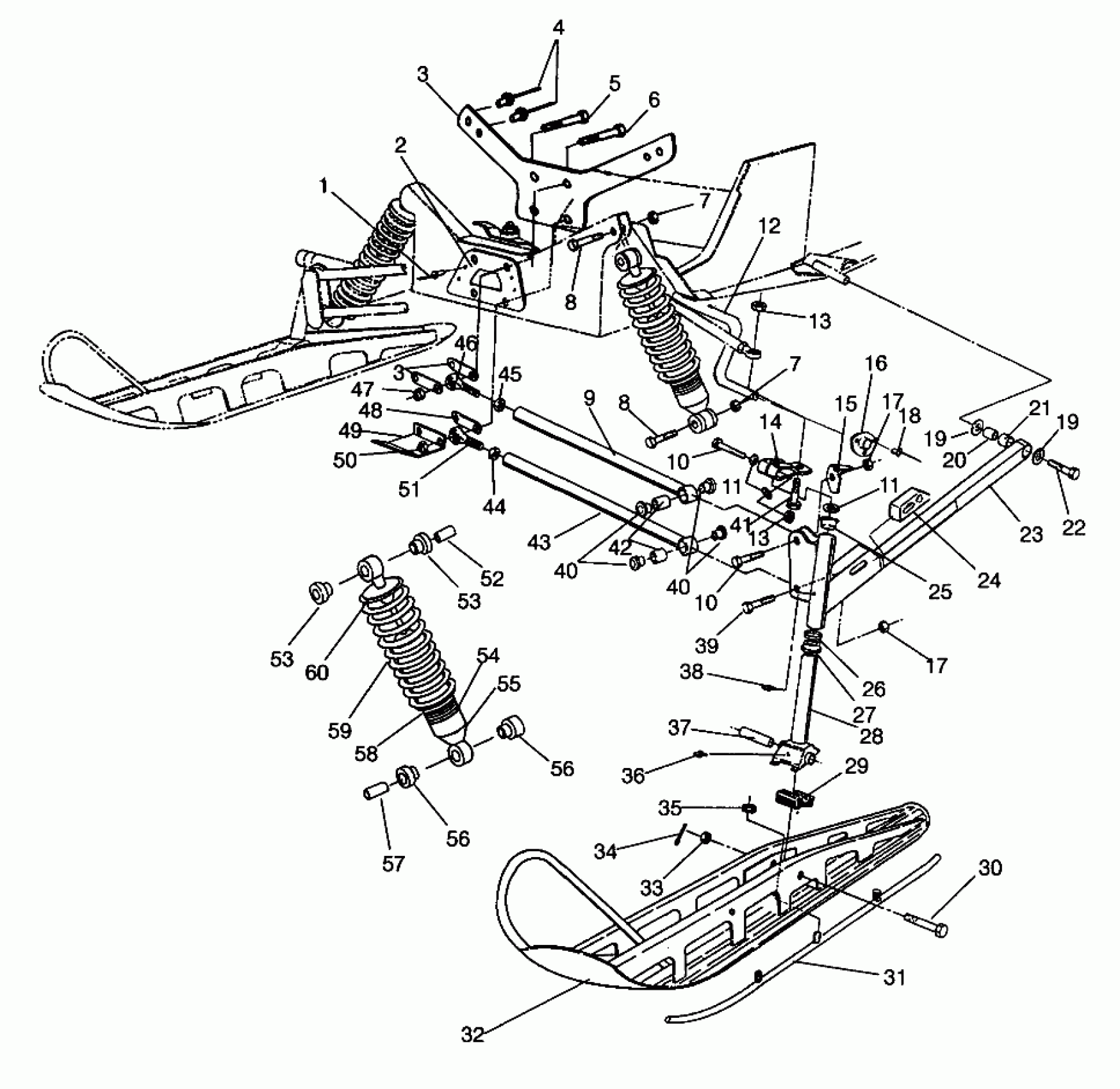

Polaris 600 XCR - 0961676 FRONT SUSPENSION and SKI 600 XCR 0961676 and EUROPEAN 600 XCR E961676 (4932123212B001) Diagram
#
1
RIVET-3/16-.090-.290
7661637
$1.49
2
BRACE,BLKHD/STRG,BLK.
5211589-067
Unavailable
3
REINF,R.SHOCK MT.PLATE
5241395-067
$3.46
3
REINF,R.SHOCK MT.PLATE
5241395-067
$3.46
5
BOLT(10)
7512551
Unavailable
6
BOLT(10)
7512678
$19.99
7
NUT, NYLOC(10)
7542453
Unavailable
7
NUT, NYLOC(10)
7542453
Unavailable
8
BOLT(10) Substituted by 7515415
7515515
Unavailable
8
BOLT(10) Substituted by 7515415
7515515
Unavailable
9
ROD,RAD,UP.BLK. Substituted by 2202104
1822138-067
Unavailable
10
BOLT(10) Substituted by 7517583
7515491
Unavailable
10
BOLT(10) Substituted by 7517583
7515491
Unavailable
11
WASHER(10) Substituted by 7555832
7555851
Unavailable
11
WASHER(10) Substituted by 7555832
7555851
Unavailable
12
BAR,SWAY,BLK.
5224616-067
Unavailable
13
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
13
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
14
Arm, Steering
5220326-067
Unavailable
15
STOP,RH,STRG,BLK.
5240398-067
Unavailable
15
STOP,LH,STRG,BLK.
5240397-067
Unavailable
16
BUSHING,SWAYBAR
5410386
Unavailable
17
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
17
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
18
RIVET(50)
7621433
$1.49
19
WASHER(10)
7555721
$1.49
19
WASHER(10)
7555721
$1.49
20
TUBE,TRAILING ARM
5010187
Unavailable
21
PIVOT-TRAILING ARM
5410382
Unavailable
22
BOLT(10) Substituted by 7512557
7512584
$7.60
23
ARM,TRLG,RH (Incl. 20, 21)
1822206
Unavailable
23
ARM,TRLG,LH (Incl. 20, 21)
1822205
Unavailable
24
SLIDE,(FR.SUSP.)
5410385
Unavailable
25
BUSHING-FLANGE
3573909
$2.39
26
WASHER SPECIAL(10)
7556509
$1.59
27
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
28
SPINDLE,BLK,HARDENED
6230075-067
Unavailable
29
STOP, RUBBER
5521276
Unavailable
30
BOLT(10)
7515462
$8.79
31
SKAG,PR.,CARBIDE
2870693
$69.99
32
SKI WELD, BLK
1820332-067
Unavailable
33
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
34
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
35
NUT-5/16-18 NYLOK-Y
7542324
$1.49
36
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
37
BUSHING,PIVOT,(10)
5010158
$19.99
38
ZERK,FITTING,THREADED(10)
7080433
$1.49
39
BOLT(10) Substituted by 7515540
7515492
$4.62
40
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
40
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
41
BOLT(10) Substituted by 7515528
7515529
Unavailable
42
BUSHING-RADIUS ROD,(10)
5010127
$7.99
43
ROD,RAD,LOW,WIDE,BLK,SP Substituted by 2202105
1822139-067
Unavailable
44
NUT-JAM(10)
7542711
$2.39
45
NUT JAM(10)
7542520
$2.39
46
ROD END, RH Substituted by 7061010 (HD) 7/16"
7060155
Unavailable
47
NUT, LOCK,(10)
7542503
$10.39
48
STRAP,SPACER BOTTOM
5211345
$12.99
49
BRACE, PAN
5223997-067
Unavailable
50
NUT FLEX,(10)
7542703
Unavailable
51
ROD END,RH Substituted by 7061011 (HD) 1/2"
7060156
Unavailable
52
BUSHING, (1.16 IN.)
5020613
Unavailable
53
BUSHING,SHOCK,.220 Substituted by 1500137
5431540
$24.99
53
BUSHING,SHOCK,.220 Substituted by 1500137
5431540
$24.99
54
RETAINER, SPRING BODY
5020617
Unavailable
55
SHOCK,GAS,IFS,IFP,CAM,WHT.
7041474
Unavailable
56
BUSHING,SHOCK
5431727
Unavailable
56
BUSHING,SHOCK
5431727
Unavailable
57
BUSHING, (1.34 IN.)
5020612
Unavailable
58
RING, RETAINING(10)
7710424
$0.63
59
SPRING,(BLK.),IFS COMP.
7041252-067
Unavailable
60
RETAINER,SPRING,SLOTTED NOTE: For Fox Shock replacement parts see pages -.
5020618
$24.99
