ENGINE MOUNTING 600 XCR 0961676 and EUROPEAN 600 XCR E961676 (4932123212C001)

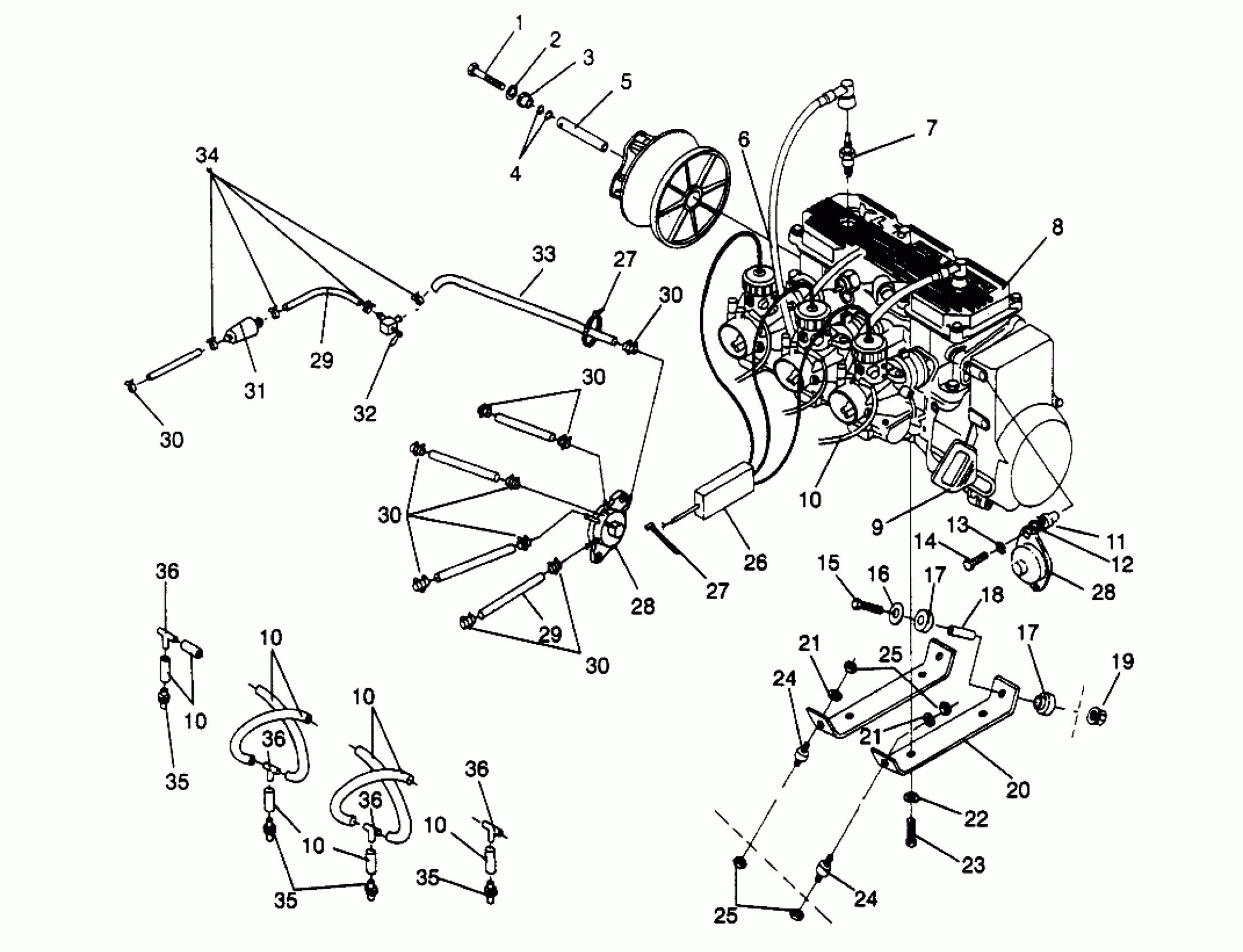

Polaris 600 XCR - 0961676 ENGINE MOUNTING 600 XCR 0961676 and EUROPEAN 600 XCR E961676 (4932123212C001) Diagram
#
1
BOLT(10)
7512565
$19.99
2
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
3
WASHER,CLUTCH RETAIN.
5010287
$12.99
4
O RING,(10)
5410507
$1.49
5
SPACER,CLUTCH BOLT
5020513
$44.99
6
CONDUIT,CONVOLUTED Substituted by 4010051-30
4010051
Unavailable
7
SPARKPLUG(8)
3070165
$3.99
8
ENG.(S.B.)EC58PL-02 Substituted by 3085391
3084629
Unavailable
9
HANDLE,RECOIL Substituted by 5431499-070
5431499
Unavailable
10
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
10
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
10
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
10
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
10
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
10
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
11
NUT-WELL(10)
7541923
$5.59
12
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
13
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
14
SCREW(10)
7512222
$2.39
15
SCREW(10)
7512530
$5.59
16
WASHER(10)
7555740
$1.59
17
MOUNT, ENGINE
5410390
Unavailable
17
MOUNT, ENGINE
5410390
Unavailable
18
TUBE, SPACER
5333258
$2.63
19
NUT,FLANGE(10)
7542522
$5.59
20
PLATE,LH,MTR.MT.
5240801
Unavailable
20
PLATE,RH,MTR.MT.
5240802
$36.51
21
WASHER(10) Substituted by 7555806
7555720
$0.79
21
WASHER(10) Substituted by 7555806
7555720
$0.79
22
WASHER LOCK(10)
7553101
$3.99
23
BOLT(10)
7512575
Unavailable
24
MOUNT,RUBBER
3110047
Unavailable
24
MOUNT,RUBBER
3110047
Unavailable
25
NUT LOCK(10)
7542411
$3.19
25
NUT LOCK(10)
7542411
$3.19
26
CABLE,THROTTLE,W/OIL
7080565
Unavailable
27
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
27
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
28
Fuel Pump (See Pg. A40, Ref. 1)
-------
Unavailable
28
Fuel Pump (See Pg. A40, Ref. 1)
-------
Unavailable
29
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
29
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
30
HOSE CLAMP, RED
7080003
$1.49
30
HOSE CLAMP, RED
7080003
$1.49
30
HOSE CLAMP, RED
7080003
$1.49
30
HOSE CLAMP, RED
7080003
$1.49
30
HOSE CLAMP, RED
7080003
$1.49
31
FILTER FUEL,(10)
2530008
$4.84
32
VALVE,FUEL SHUT-OFF
7052039
Unavailable
34
STRAP, PANDUIT Substituted by 7080003
7080527
Unavailable
35
VENT,CHECKVALVE
7051011
Unavailable
35
VENT,CHECKVALVE
7051011
Unavailable
35
VENT,CHECKVALVE
7051011
Unavailable
36
FITTING, TEE,(10)
7052048
$3.99
36
FITTING, TEE,(10)
7052048
$3.99
36
FITTING, TEE,(10)
7052048
$3.99
36
FITTING, TEE,(10)
7052048
$3.99
