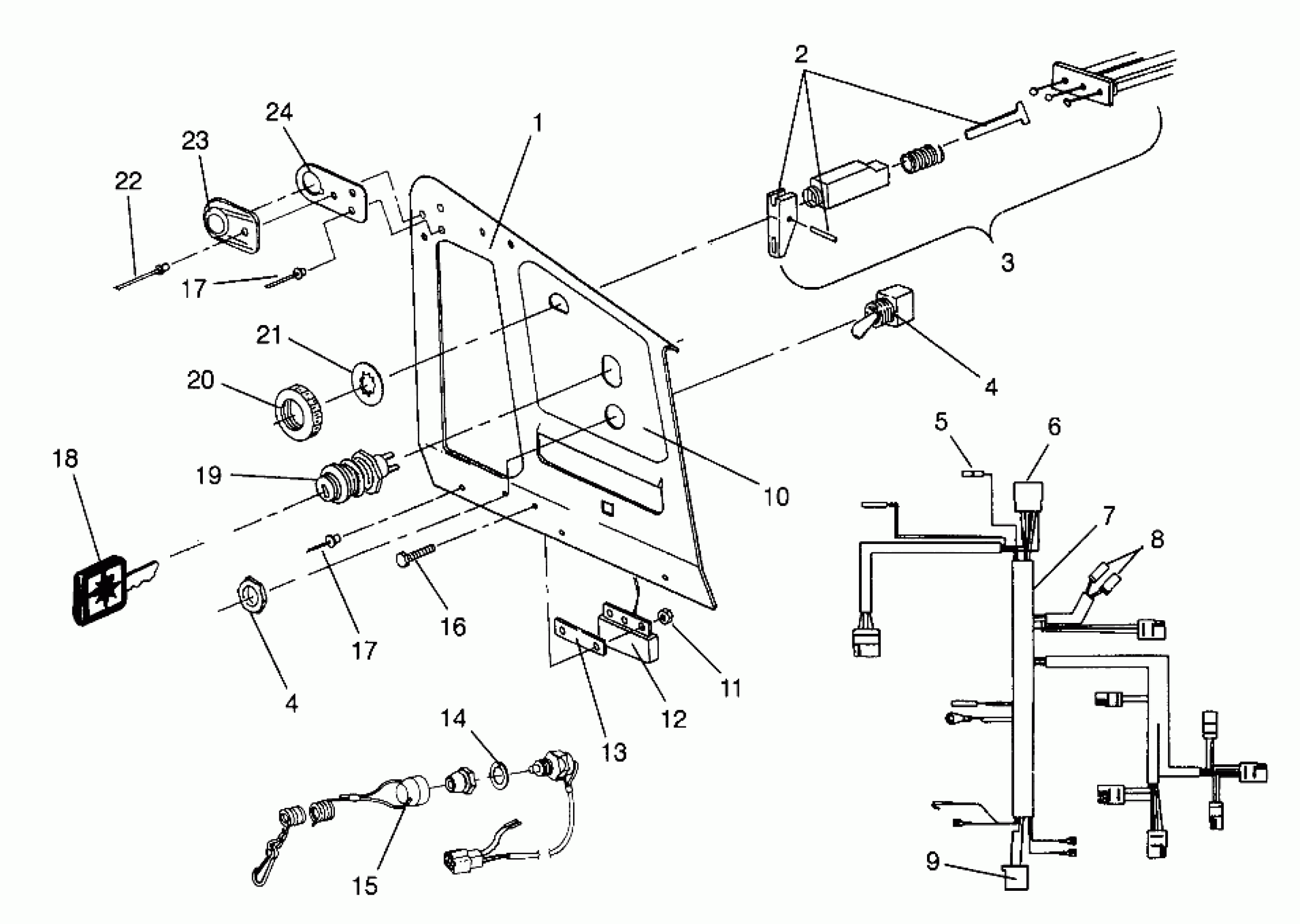

Polaris 600 XCR - 0961676 CONSOLE 600 XCR 0961676 and EUROPEAN 600 XCR E961676 (4932123212A013) Diagram

#

Description
Price

1

CONSOLE

5222756-067

Unavailable

1

CONSOLE,BLK,(SCAND) (Euro)

5222758-067

$53.59

2

KIT,CHOKE CONTROL

2200189

$20.22

3

CABLE, CHOKE

7080283

$109.99

4

SW,GRIP,HEATER-HI/LO

4110113

$70.39

4

SW,GRIP,HEATER-HI/LO

4110113

$70.39

5

HOUSING

4020133

Unavailable

6

Housing w/Receptacle

4020057

$3.51

7

HARNESS,MAIN WIRE

2460534

Unavailable

8

Housing

4020153

$1.49

9

HOUSING

4020063

$3.19

10

DECAL, CONSOLE [No Longer Available]

7073075

Unavailable

11

NUT(10)

7541925

$1.49

12

REGULATOR,14 VAC.LR-9

4060122

Unavailable

13

SPACER,REGULATOR

5211573

Unavailable

14

WASHER(10) (Euro)

7555817

Unavailable

15

SWITCH,TETHER Substituted by 2870668 (EURO)

4110156

$84.99

16

BOLT(10)

7512031

$2.23

17

RIVET,INTERLOCK,B(50)

7661638

$1.49

17

RIVET,INTERLOCK,B(50)

7661638

$1.49

18

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote)

5410611

Unavailable

19

KIT,IGN. SWITCH (Incl. 18)

2200357

Unavailable

20

Nut

7080229

$19.99

21

WASHER-LOCK(10)

7571610

$3.99

22

RIVET,(50)

7621477

$1.19

23

GUIDE, RECOIL

5431385

$10.51

24

BRKT,ROPE GUIDE,BLK. NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A, B, C, D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot

5240171-067

Unavailable
