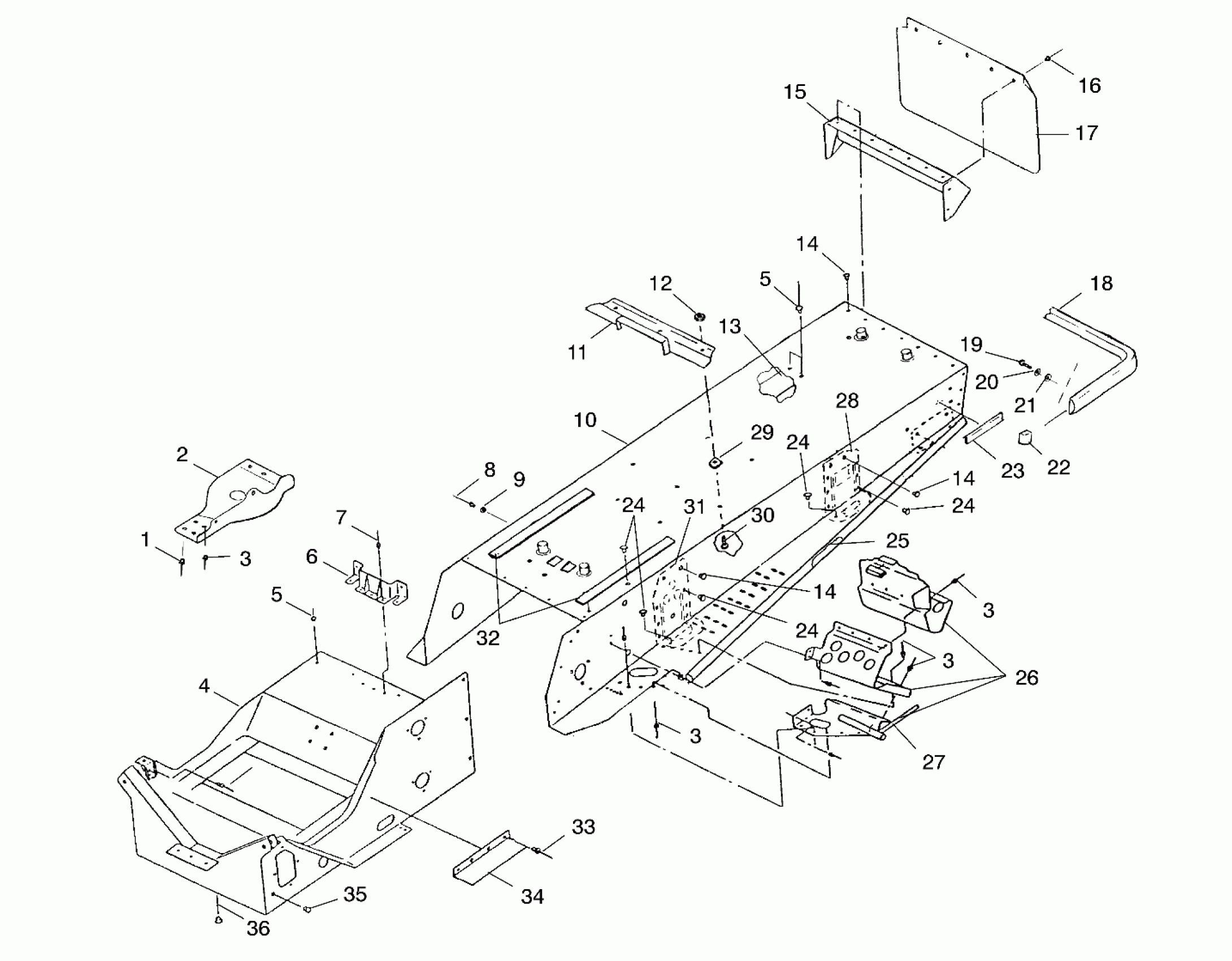

Polaris 600 XC (TWIN) - 0971758 TUNNEL - 0971758 (4941984198a005) Diagram
#
1
RIVET(50) Substituted by 7661130
7661643
Unavailable
2
GUARD,C/C.SUMP,TUNNEL Substituted by 5243419
5241915
$20.48
3
RIVET,INTERLOCK,B(50)
7661638
$1.49
3
RIVET,INTERLOCK,B(50)
7661638
$1.49
3
RIVET,INTERLOCK,B(50)
7661638
$1.49
3
RIVET,INTERLOCK,B(50)
7661638
$1.49
4
BULKHEAD,CRC,BLK
1012583-067
Unavailable
5
RIVET-3/16-.090-.290
7661637
$1.49
5
RIVET-3/16-.090-.290
7661637
$1.49
6
BRKT,GASTANK,WELD.
1011733-067
$19.73
7
RIVET(50)
7621301
$3.99
8
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
9
SNAP-MALE(10)
7080227
Unavailable
10
TUNNEL ASM,X-10 Substituted by 1012577
1012589
Unavailable
11
STRAP,GASTANK,BLK
1011732-067
Unavailable
12
NUT-LOCK(10)
7542122
$1.49
13
WEARSTRIP,COOLER
2511297
Unavailable
14
RIVET,SEMI-TUBE,(50)
7661841
$1.49
14
RIVET,SEMI-TUBE,(50)
7661841
$1.49
14
RIVET,SEMI-TUBE,(50)
7661841
$1.49
15
PANEL,TUNNELBACK,BLK
5241946-067
Unavailable
16
POP RIVET(50)
7621418
$1.49
17
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
18
BUMPER,REAR,BLACK Substituted by 2670168
2670169
Unavailable
19
SCREW(10)
7515159
$4.79
20
LOCK WASHER(10)
7552801
$1.59
21
WASHER(10)
7558301
$1.49
22
CAP,BUMPER
5431995-070
Unavailable
23
REFLECTOR ASM,RED
2670133
$5.75
24
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
24
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
24
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
24
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
25
TUBE,TUNNEL SPT.
5224787
$20.48
26
DESC NOT_AVAILABLE
1012569-067
Unavailable
26
DESC NOT_AVAILABLE
1012570-067
Unavailable
27
SUPPORT,LH,TUNNEL,BLK
1012621-067
Unavailable
27
SUPPORT,RH,TUNNEL,BLK
1012622-067
$23.99
28
BRKT,LH,R.SUSP,BLK.
5241954-067
Unavailable
28
BRKT,RH,R.SUSP,BLK.
5241955-067
$22.23
29
SPEED NUT(10)
7670021
$6.99
30
BOLT(10)
7512193
$2.39
31
BRKT,LH,F.SUSP.MTG,BLK Substituted by 5242612-067
5241951-067
Unavailable
31
BRKT,RH,F.SUSP.MTG,BLK Substituted by 5242613-067
5241952-067
Unavailable
32
PAD-GAS TANK
5810063
$4.95
33
RIVET(50)
7621452
$1.49
34
GUARD,ADAPTER GUIDE
5222857
$12.94
35
PLUG, HOLE(10)
7080416
$5.65
36
PLUG-HOLE
7080398
$4.84
