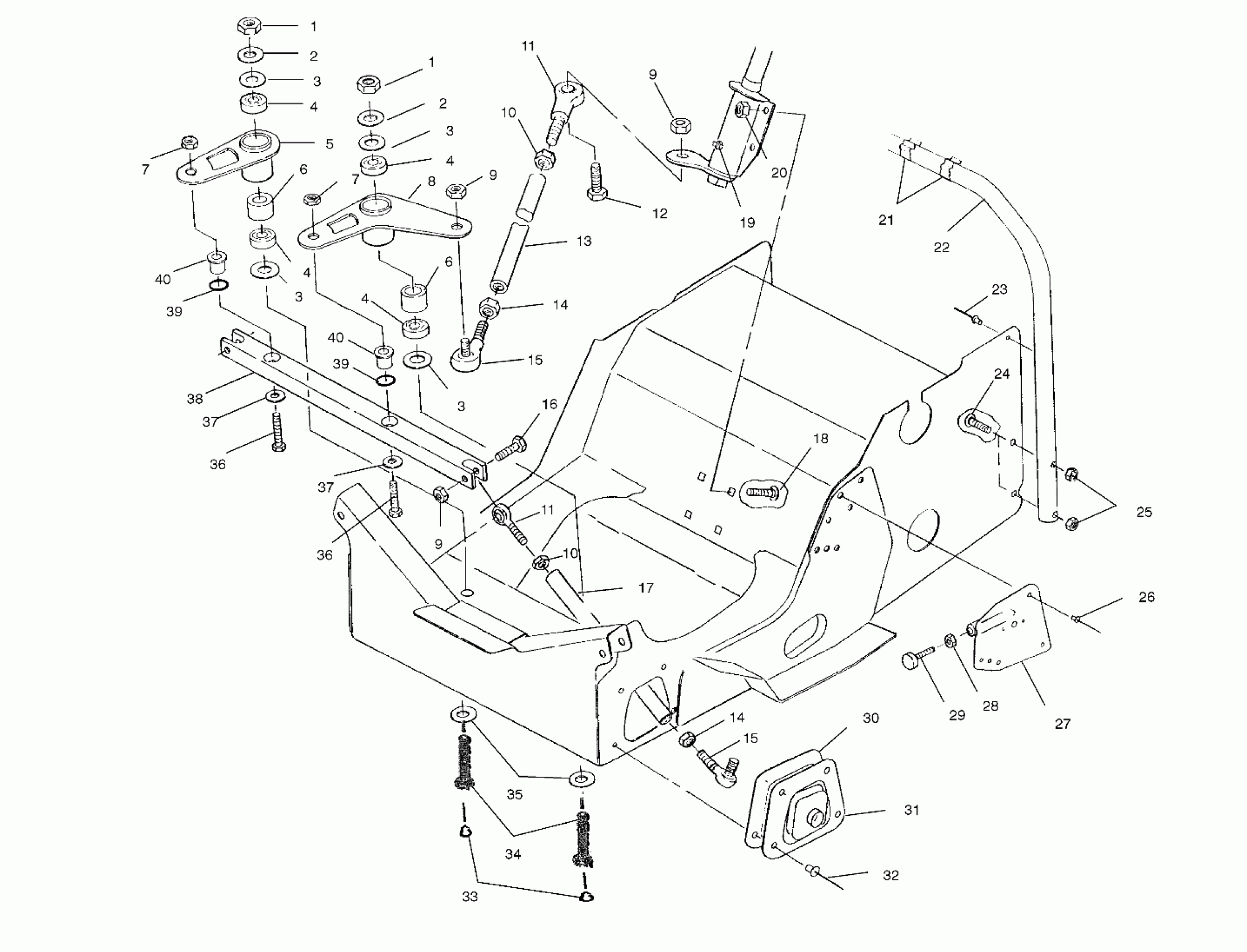

Polaris 600 XC (TWIN) - 0971758 STEERING - 0971758 (4941984198b004) Diagram

#

Description
Price

1

NUT,FLEX LOCK(10)

7547029

Unavailable

1

NUT,FLEX LOCK(10)

7547029

Unavailable

2

WASHER(10)

7555721

$1.49

2

WASHER(10)

7555721

$1.49

3

WASHER THRUST(10)

7558702

$1.59

3

WASHER THRUST(10)

7558702

$1.59

3

WASHER THRUST(10)

7558702

$1.59

3

WASHER THRUST(10)

7558702

$1.59

4

BEARING, BALL Substituted by 3514320

3554512

Unavailable

4

BEARING, BALL Substituted by 3514320

3554512

Unavailable

4

BEARING, BALL Substituted by 3514320

3554512

Unavailable

4

BEARING, BALL Substituted by 3514320

3554512

Unavailable

5

ZERK,FITTING,THREADED(10)

7080433

$1.49

5

ARM,IDLER ASM. Substituted by 1820577 (Incl. 4,6)

1822471

Unavailable

6

Bushing

5010417

$6.63

6

Bushing

5010417

$6.63

7

NUT, FLEXLOC B(10) Substituted by 7542403

7542456

$3.97

7

NUT, FLEXLOC B(10) Substituted by 7542403

7542456

$3.97

8

ZERK,FITTING,THREADED(10)

7080433

$1.49

8

PITMAN ARM ASM. Substituted by 1820575 (Incl. 4,6)

1822480

Unavailable

9

NUT LOCK(10)

7542403

$3.99

9

NUT LOCK(10)

7542403

$3.99

9

NUT LOCK(10)

7542403

$3.99

10

NUT

7542424

$1.49

10

NUT

7542424

$1.49

11

ROD END,LH

7060166

$48.56

11

ROD END,LH

7060166

$48.56

12

BOLT(10)

7512404

$3.99

13

ROD,DRAG LINK

5333408

$20.63

14

NUT HEX(10)

7542401

$2.39

14

NUT HEX(10)

7542401

$2.39

15

ROD-END,RH,3/8,HI-ANGLE

7060174

$48.56

15

ROD-END,RH,3/8,HI-ANGLE

7060174

$48.56

16

SCREW(10)

7515434

Unavailable

17

TIEROD, BLK

5020914-067

Unavailable

18

BOLT(10) Substituted by 7512377

7512394

Unavailable

19

FITTING,LUB/VEN(10)

7080561

$4.79

20

NUT-5/16-18 NYLOK-Y

7542324

$1.49

21

CLIP,CABLE RETAIN,(10)

7080631

$6.29

22

HOOP,STEERING,BLK

1012573-067

Unavailable

23

RIVET-3/16-.090-.290

7661637

$1.49

24

BOLT-CARRIAGE(10)

7512275

$3.99

25

NUT-LOCK(10)

7542122

$1.49

26

RIVET,INTERLOCK,B(50)

7661638

$1.49

27

Stop, Torque

1012618

Unavailable

28

NUT(10)

7542410

$0.94

29

STOP,TORQUE,COARSE

3110058

Unavailable

30

BOOT,TIEROD,MOD

5411249

Unavailable

31

PLATE,BOOT,MOD

5211796-067

$31.35

32

POP RIVET(50)

7621323

$1.49

33

PLUG,HOLE(10)

7080689

$5.75

34

SCREW(10)

7517328

$13.19

35

BUSHING, MACH.(10)

7558707

$4.79

36

BOLT(10) Substituted by 7517583

7515491

Unavailable

36

BOLT(10) Substituted by 7517583

7515491

Unavailable

37

WASHER(10)

7555893

$1.49

37

WASHER(10)

7555893

$1.49

38

RACK ASM,CRC

1822479

Unavailable

39

O-RING

5411220

$6.46

39

O-RING

5411220

$6.46

40

TUBE,SPACER

5010384

Unavailable

40

TUBE,SPACER

5010384

Unavailable
