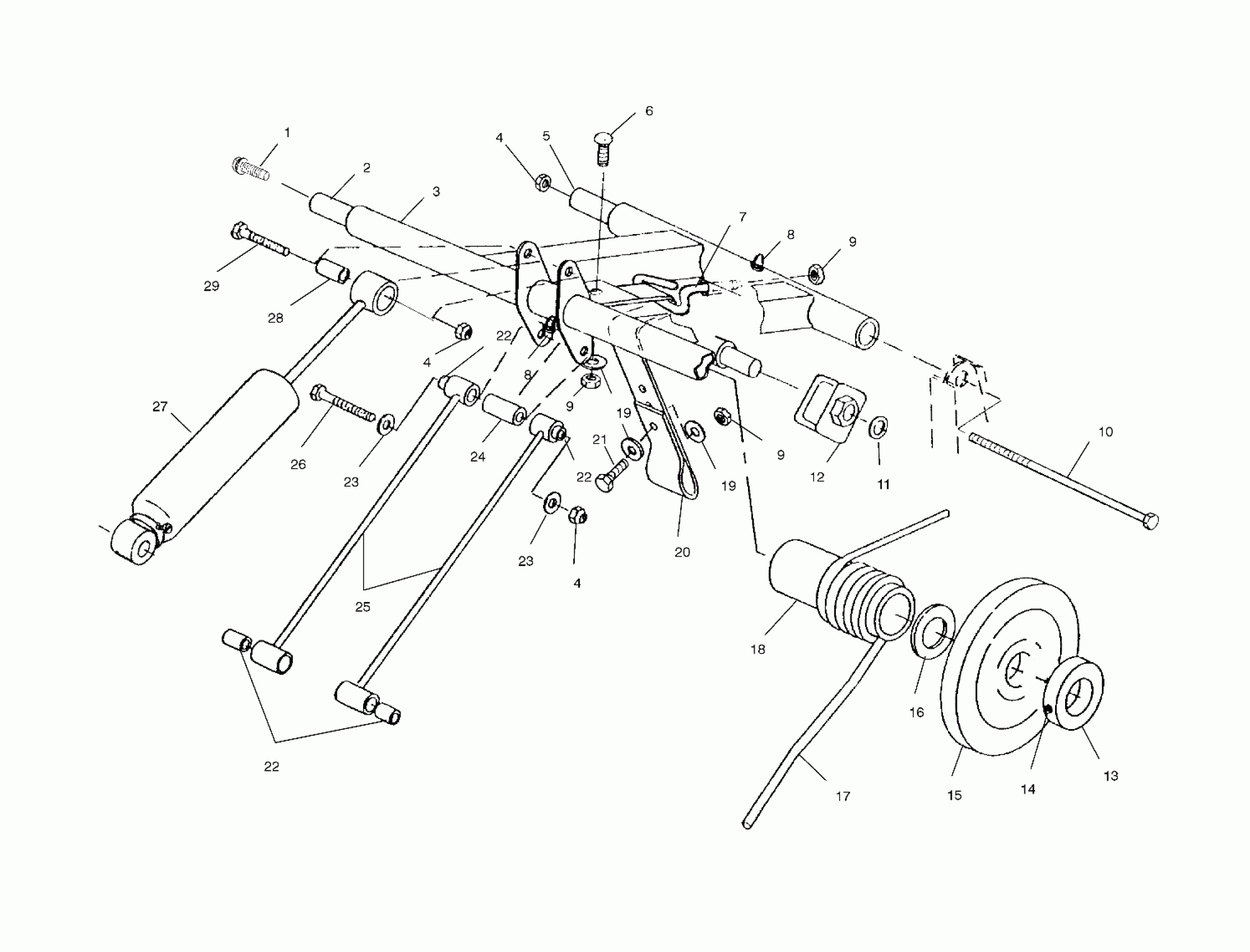

Polaris 600 XC (TWIN) - 0971758 REAR TORQUE ARM - 0971758 (4941984198b014) Diagram

#

Description
Price

1

SCREW,SEMS Substituted by 7517247

7517236

$3.17

2

SHAFT,R.TORQUE,UPPER

5020845

$63.99

3

ARM,R.TORQUE,BLK (X-10, Blk)

1541152-067

Unavailable

4

NUT LOCK(10)

7542411

$3.19

4

NUT LOCK(10)

7542411

$3.19

4

NUT LOCK(10)

7542411

$3.19

5

Shaft

5333536

Unavailable

6

BOLT(10)

7512377

$4.79

7

BOLT,EYE

7010050

Unavailable

8

ZERK,FITTING,THREADED(10)

7080433

$1.49

8

ZERK,FITTING,THREADED(10)

7080433

$1.49

9

NUT-5/16-18 NYLOK-Y

7542324

$1.49

9

NUT-5/16-18 NYLOK-Y

7542324

$1.49

9

NUT-5/16-18 NYLOK-Y

7542324

$1.49

10

Screw

7517232

$19.99

11

CLIP-PUSH ON

7080394

$2.39

12

ROLLER, SPRING ADJ.

5431168

Unavailable

13

COLLAR,BRG LOCK

5010404

Unavailable

14

SCREW-SET(10)

7512257

$3.99

15

Wheel, Carrier

1543023

Unavailable

16

WASHER, THRUST(10) Substituted by 7555871

7555787

Unavailable

17

SPRING,LH,TORS(.421DIA) (.421) Std.

7041461-067

Unavailable

17

SPRING,RH,TORS(.406DIA) (.406) Opt.

7041464-067

Unavailable

17

SPRING,RH,TORS(.421DIA) (.421) Std.

7041462-067

$113.32

17

SPRING,LH,TORS(.406DIA) (.406) Opt.

7041463-067

Unavailable

18

SLEEVE,TORSION SPRING

5431923

$6.39

19

WASHER(10)

7555716

$1.59

19

WASHER(10)

7555716

$1.59

20

STRAP,LIMITER

5411061

Unavailable

21

BOLT(10)

7515307

$3.99

22

BUSHING,PIVOT TUBE

5020561

$1.59

22

BUSHING,PIVOT TUBE

5020561

$1.59

22

BUSHING,PIVOT TUBE

5020561

$1.59

23

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

23

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

24

Spacer

5333559

Unavailable

25

ROD,SHOCK

1541015-067

Unavailable

26

BOLT(10)

7515472

$2.39

27

SHOCK,RR TRACK,X-10,AFX

7041640

Unavailable

28

BUSHING

5010422

$11.99

29

BOLT(10) Substituted by 7515492

7512410

Unavailable
