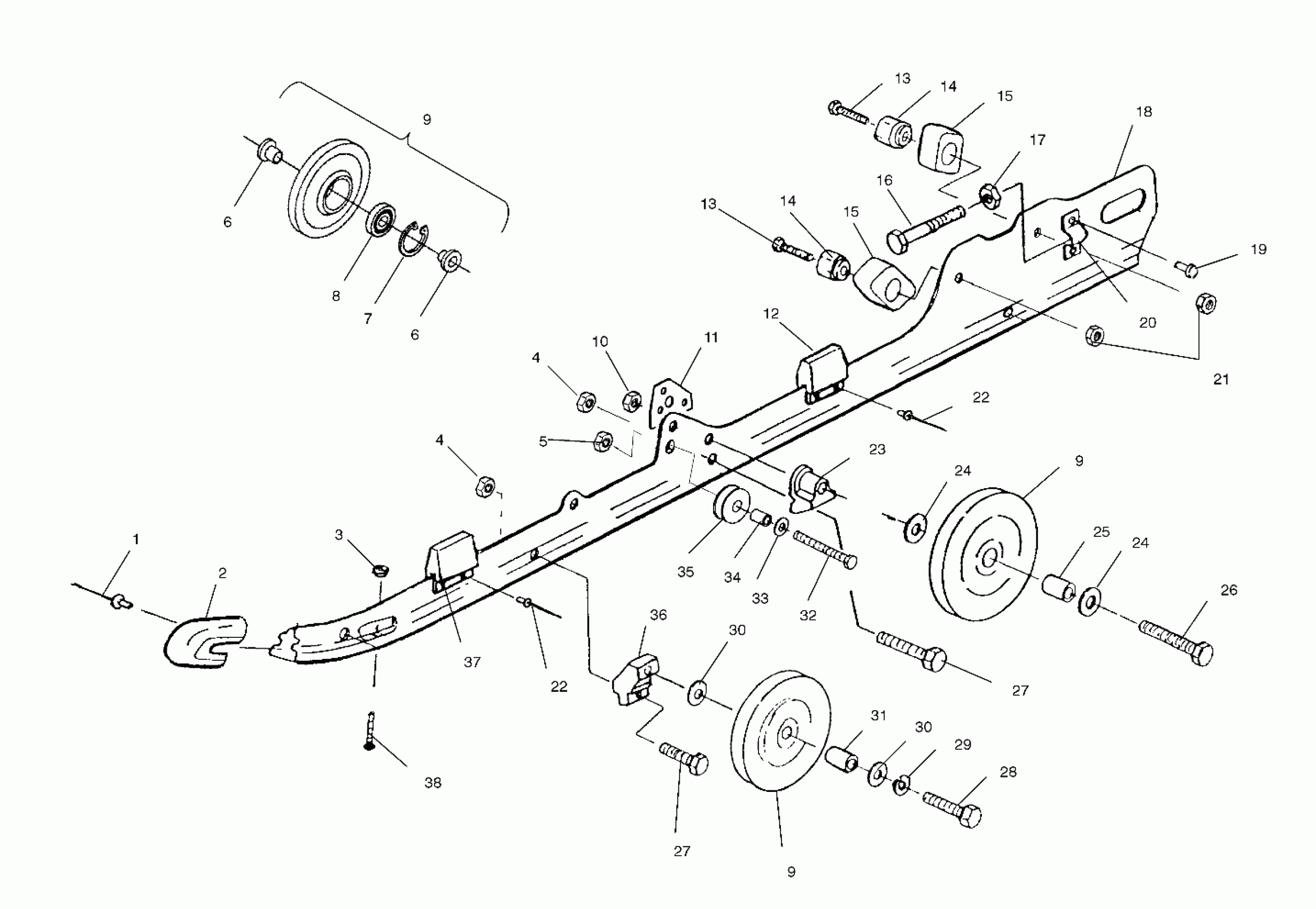

Polaris 600 XC (TWIN) - 0971758 RAIL MOUNTING (SUSPENSION) - 0971758 (4941984198b011) Diagram

#

Description
Price

1

RIVET(50)

7621435

$1.49

2

COVER, RAIL TIP Substituted by 5433005

5431421

Unavailable

3

NUT-LOCK(10)

7542122

$1.49

4

NUT-LOCK(10)

7542439

$1.49

4

NUT-LOCK(10)

7542439

$1.49

5

NUT LOCK(10)

7542411

$3.19

6

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

6

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

7

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

8

BEARING (1 per Wheel)

3514303

$11.99

9

WHEEL, IDLER (Incl. 6-8)

1543018

$56.65

9

WHEEL, IDLER (Incl. 6-8)

1543018

$56.65

9

WHEEL, IDLER (Incl. 6-8)

1543018

$56.65

10

NUT, NYLOCK(10)

7542525

$4.79

11

BRKT,RAIL,REINF

5211790

Unavailable

12

REINF., BUMPER

5222629

$13.75

12

BUMPER, RAIL

5810554

$7.27

13

BOLT(10)

7515537

$10.99

13

BOLT(10)

7515537

$10.99

14

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

14

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

15

BUMPER,F.PIVOT ARM

5410925

$12.94

15

BUMPER,F.PIVOT ARM

5410925

$12.94

16

BOLT, ADJUSTER(10)

7515455

$29.99

17

NUT(10)

7542440

Unavailable

18

RAIL ASM,LH,X-10,121 (Incl. 2,12,20,37)

1541161

Unavailable

18

RAIL ASM,RH,X-10,121 (Incl. 2,12,20,37)

1541162

Unavailable

19

RIVET,(50)

7621501

$2.39

20

BLOCK-IDLER BOLT ADJ.

5130530

$32.37

21

NUT LOCK(10)

7542403

$3.99

22

RIVET-3/16 (.626-.750) Q-AL-ST

7621476

$1.49

22

RIVET-3/16 (.626-.750) Q-AL-ST

7621476

$1.49

23

SPACER

5630399

$11.99

24

WASHER, FLAT(10)

7555852

$2.39

24

WASHER, FLAT(10)

7555852

$2.39

25

SPACER, WHEEL

5333116

$7.99

26

BOLT(10)

7512538

$6.39

27

BOLT(10)

7512404

$3.99

27

BOLT(10)

7512404

$3.99

28

BOLT(10)

7512659

$7.99

29

LOCK WASHER(10)

7553201

$3.99

30

WASHER(10)

7555804

$3.99

30

WASHER(10)

7555804

$3.99

31

SPACER

5332786

$7.99

32

BOLT Substituted by 7515491

7515433

$1.59

33

WASHER(10)

7555743

Unavailable

34

Spacer

5332787

Unavailable

35

ROLLER,SPRING

5432170

Unavailable

36

BRACKET,BOGIE WHEEL

5130570

$48.56

37

REINF., BUMPER

5222629

$13.75

37

BUMPER,SUSPENSION

5811097

Unavailable

38

BOLT(10)

7515175

$3.99
