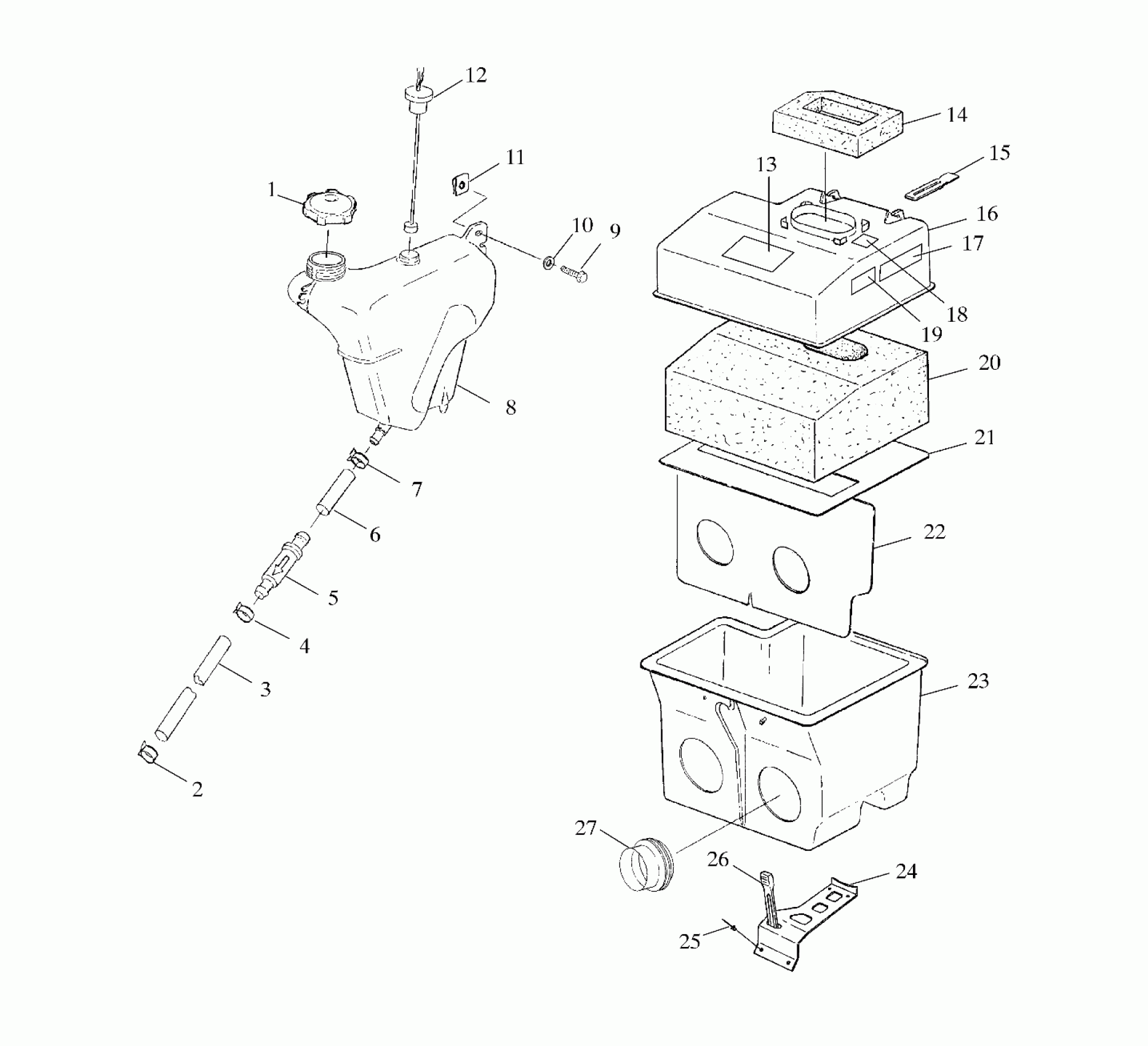

Polaris 600 XC (TWIN) - 0971758 OIL TANK/AIR BOX - 0971758 (4941984198c007) Diagram

#

Description
Price

1

CAP,OIL,VENTED Substituted by 1240094

2511287

Unavailable

2

CLAMP-HOSE,(10)

7080236

$1.59

3

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

4

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

5

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

6

FUEL LINE

8450059-150

Unavailable

7

CLAMP,HOSE,(10)

7080650

$3.99

8

TANK, OIL

5432370

Unavailable

9

BOLT(10)

7512278

Unavailable

10

WASHER,WROUGHT(10)

7558302

$1.59

11

Nut

7670096

$1.59

12

SENSOR,OIL LEVEL

4110134

$72.84

13

DECAL,COOL.SYSTEM [No Longer Available]

7075359

Unavailable

14

FOAM,AIRBOX,CHIMNEY

5811328

Unavailable

15

RETAINER-TAB,(10)

5411075

Unavailable

16

TOP,SIL.INTAKE,W/1.5 HOLE

5432586

Unavailable

17

DECAL,ADJ.DRIVEN CLUTCH

7073820

Unavailable

18

DECAL,CAUTION,AIRBOX

7075351

Unavailable

19

DECAL, GREASING [No Longer Available]

7073426

$7.27

20

FOAM,AIRBOX,TOP INT. Substituted by 5811564

5811484

Unavailable

21

PLATE,SILENCER INTAKE

5850134

Unavailable

22

PLATE,SILENCER,INTAKE,VERT.

5850139

$10.71

23

SILENCER,INTAKE,DRILLED

5432592

Unavailable

24

BRKT,SIL.MOUNT,LOW Substituted by 5243729

5241691

Unavailable

25

RIVET,INTERLOCK,B(50)

7661638

$1.49

26

STRAP,TIE-DOWN

5411129

$8.89

27

BOOT,CARB,34MM

5411295

Unavailable
