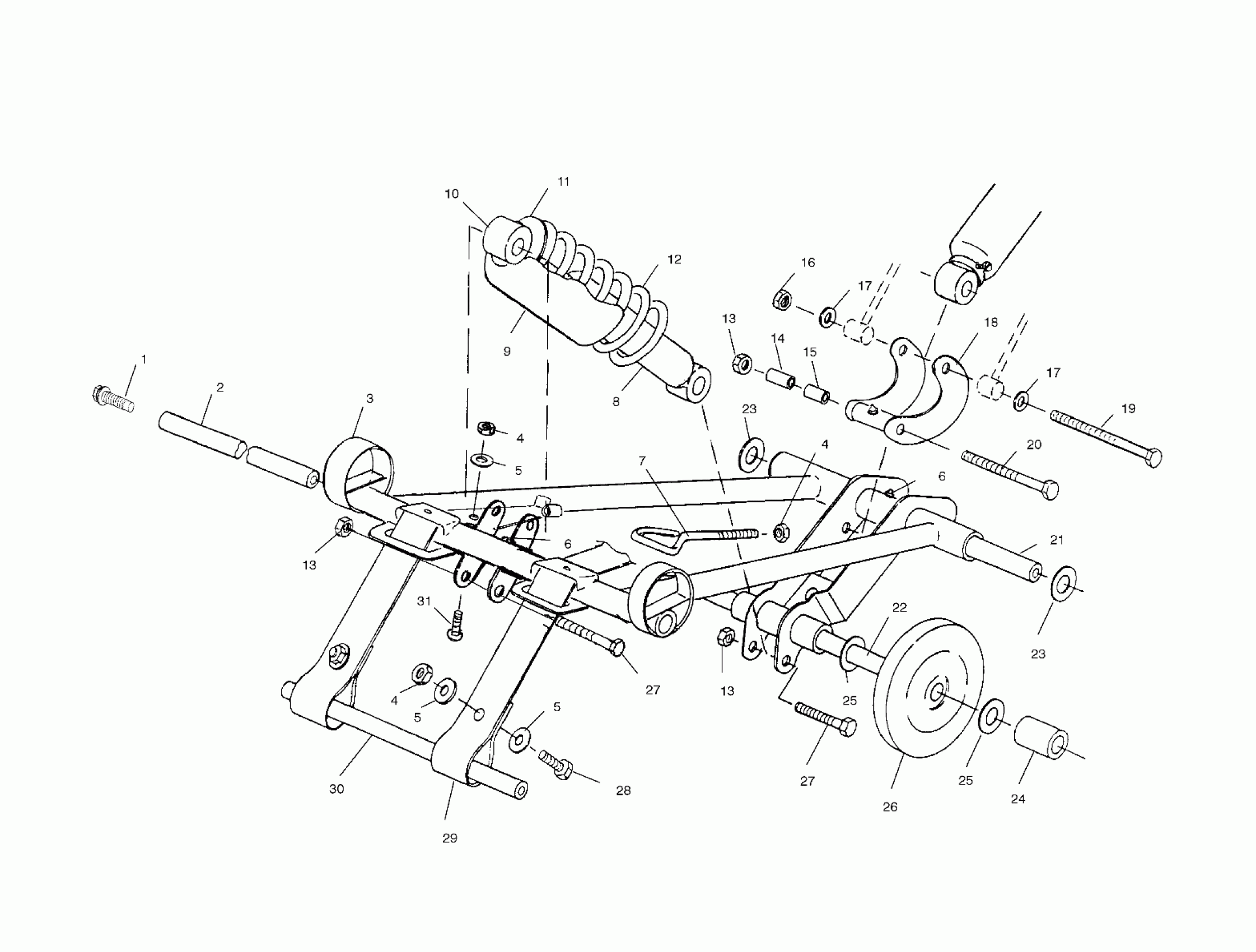

Polaris 600 XC (TWIN) - 0971758 FRONT TORQUE ARM - 0971758 (4941984198b013) Diagram

#

Description
Price

1

SCREW,SEMS Substituted by 7517247

7517236

$3.17

2

Shaft

5131450

Unavailable

3

ARM,F.TORQUE,X-10 Substituted by 1541203-067

1541140-067

Unavailable

4

NUT-5/16-18 NYLOK-Y

7542324

$1.49

4

NUT-5/16-18 NYLOK-Y

7542324

$1.49

4

NUT-5/16-18 NYLOK-Y

7542324

$1.49

5

WASHER(10)

7555716

$1.59

5

WASHER(10)

7555716

$1.59

5

WASHER(10)

7555716

$1.59

6

ZERK,FITTING,THREADED(10)

7080433

$1.49

6

ZERK,FITTING,THREADED(10)

7080433

$1.49

7

BOLT,EYE

7010050

Unavailable

8

RETAINER,SPRING Substituted by 5245067

5241276-067

Unavailable

9

SHIELD-SPRING

5430671

$24.27

10

SHOCK,F.TRACK,X-10,FX

7041639

Unavailable

11

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

12

SPRING,BLACK,COMP.

7041253-067

$95.22

13

NUT LOCK(10)

7542403

$3.99

13

NUT LOCK(10)

7542403

$3.99

13

NUT LOCK(10)

7542403

$3.99

14

Spacer

5333028

$1.59

15

BUSHING,PIVOT TUBE

5020561

$1.59

16

NUT LOCK(10)

7542411

$3.19

17

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

17

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

18

ARM,SHOCK

1540942-067

Unavailable

19

BOLT(10)

7515472

$2.39

20

BOLT(10)

7515438

$4.79

21

Shaft (See Pg. B12, Ref. 19)

-------

Unavailable

22

Shaft (See Pg. B12, Ref. 18)

-------

Unavailable

23

WASHER(10)

7555893

$1.49

23

WASHER(10)

7555893

$1.49

24

SPACER, OUTER

5332784

Unavailable

25

MACHINERY BUSHING(10)

7556301

$3.19

25

MACHINERY BUSHING(10)

7556301

$3.19

26

Bogie Wheel (See Pg. B11, Ref. 9)

-------

Unavailable

27

BOLT(10)

7515415

$1.49

27

BOLT(10)

7515415

$1.49

28

BOLT(10)

7515307

$3.99

29

STRAP,LIMITER,FRONT

5411045

Unavailable

30

Shaft, Pivot Arm (See Pg. B12, Ref. 17)

-------

Unavailable

31

BOLT(10)

7512377

$4.79
