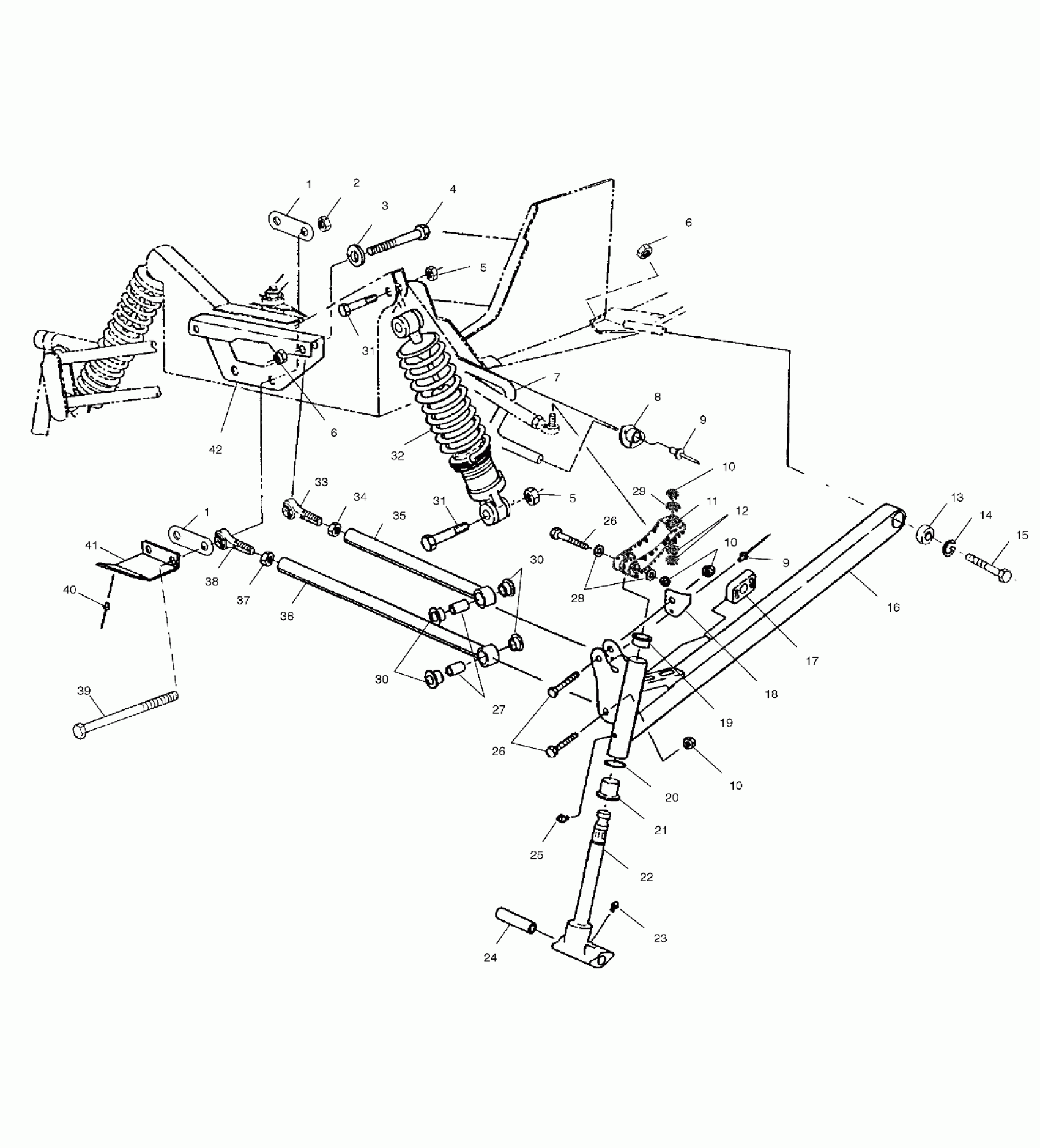

Polaris 600 XC (TWIN) - 0971758 FRONT SUSPENSION - 0971758 (4941984198b001) Diagram

#

Description
Price

1

STRAP,SPACER BOTTOM

5211345

$12.99

1

STRAP,SPACER BOTTOM

5211345

$12.99

2

NUT FLEX,(10)

7542703

Unavailable

3

WASHER THRUST(10)

7558702

$1.59

4

BOLT(10)

7512551

Unavailable

5

NUT, NYLOC(10)

7542453

Unavailable

5

NUT, NYLOC(10)

7542453

Unavailable

6

NUT, LOCK,(10)

7542503

$10.39

6

NUT, LOCK,(10)

7542503

$10.39

7

BAR,SWAY,5/8 Substituted by 5242816-067

5224774-067

Unavailable

8

BUSHING,SWAY BAR

5432297

Unavailable

9

RIVET(50) Substituted by 7661130

7661643

Unavailable

9

RIVET(50) Substituted by 7661130

7661643

Unavailable

10

NUT, FLEXLOC B(10) Substituted by 7542403

7542456

$3.97

10

NUT, FLEXLOC B(10) Substituted by 7542403

7542456

$3.97

10

NUT, FLEXLOC B(10) Substituted by 7542403

7542456

$3.97

11

ARM,LH,STRG. Substituted by 5131739

5131541

$161.89

11

ARM,RH,STRG. Substituted by 5131740

5131542

Unavailable

12

WASHER(10)

7555797

$3.99

13

BRG,SPHERICAL,7/16 Substituted by 7061042

7061016

Unavailable

14

RING,RETAINING(10)

7710437

$3.19

15

BOLT(10)

7512579

Unavailable

16

ARM,TRLG,RH Substituted by 1820779 (Incl. 13,14)

1822463

Unavailable

16

ARM,TRLG,LH Substituted by 1820713-067 (Incl. 13,14)

1822462

Unavailable

17

SLIDE,SWAYBAR,5/8

5432561

$24.27

18

STOP,STRG,LH.

5242017-067

$13.89

18

STOP,STRG,RH.

5242018-067

$13.10

19

BUSHING-FLANGE

3573909

$2.39

20

WASHER SPECIAL(10)

7556509

$1.59

21

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

22

SHAFT,SPINDLE,TRLG,BLK

6230102-067

$294.99

23

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

24

BUSHING,PIVOT,(10)

5010158

$19.99

25

ZERK,FITTING,THREADED(10)

7080433

$1.49

26

BOLT(10) Substituted by 7517583

7515491

Unavailable

26

BOLT(10) Substituted by 7517583

7515491

Unavailable

27

BUSHING-RADIUS ROD,(10)

5010127

$7.99

28

WASHER(10) Substituted by 7555832

7555851

Unavailable

29

WASHER(10)

7555957

$4.79

30

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

30

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

31

BOLT(10) Substituted by 7515415

7515515

Unavailable

31

BOLT(10) Substituted by 7515415

7515515

Unavailable

32

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

32

SPRING,COMP,BLK

7041489-067

Unavailable

32

Fox Shock - IFS (See Pg. B10)

-------

Unavailable

33

ROD,END,7/16 LINED Substituted by 7061049

7061010

Unavailable

34

NUT JAM(10)

7542520

$2.39

35

ROD,RAD,UPPER,BLK. Substituted by 1820588-067

1822475-067

Unavailable

36

ROD,RAD,LOWER,BLK Substituted by 1820584-067

1822474-067

Unavailable

37

NUT-JAM(10)

7542711

$2.39

38

ROD END,1/2 LINED Substituted by 7061071

7061011

$48.56

39

BOLT(10)

7512678

$19.99

40

RIVET(50)

7621452

$1.49

41

BRACE, PAN

5223997-067

Unavailable

42

BRACE,BULKHEAD,FRONT,BLK

1012575-067

$23.99
