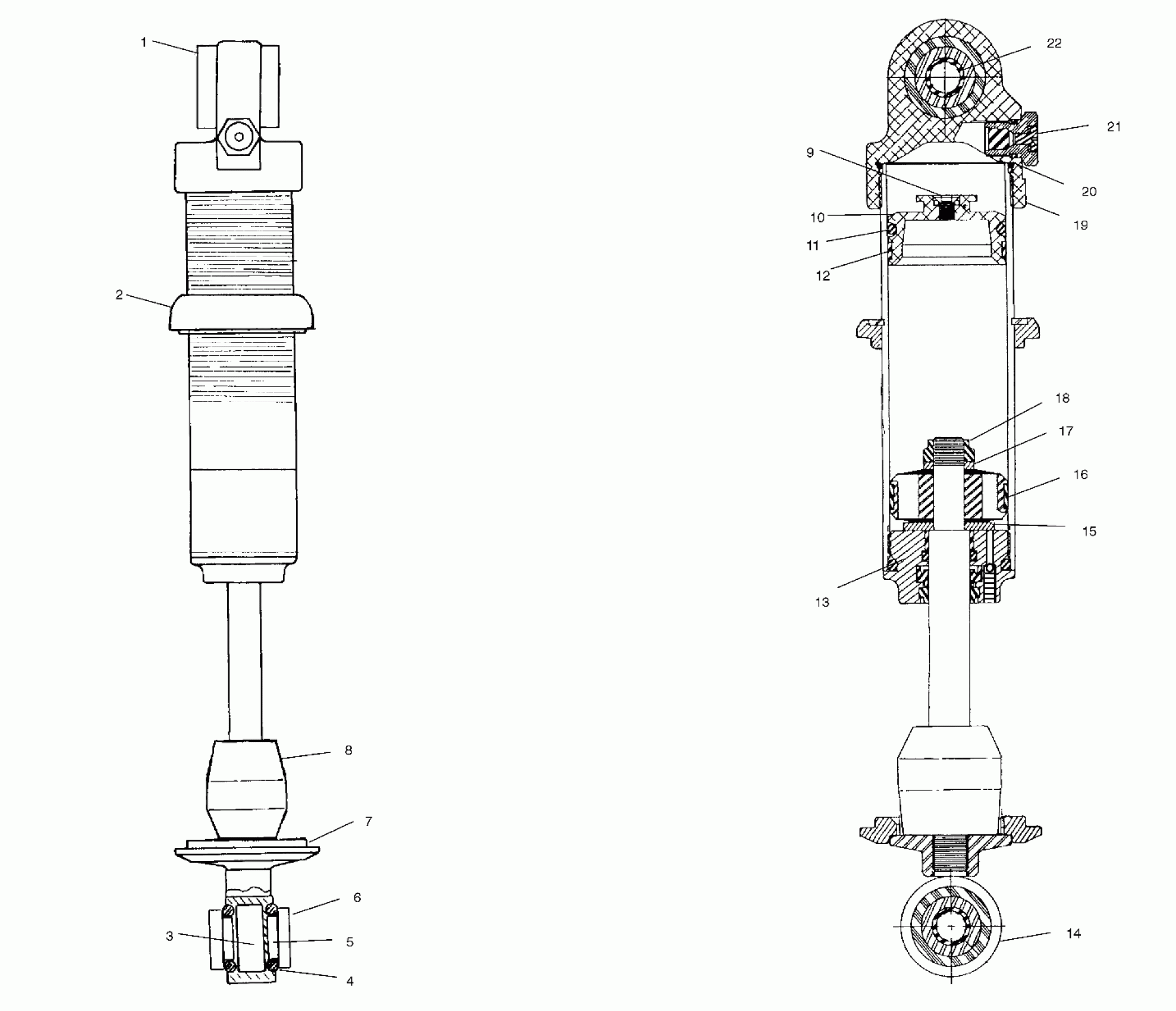

Polaris 600 XC (TWIN) - 0971758 FOX SHOCK - IFS - 0971758 (4941984198b010) Diagram

#

Description
Price

-

KIT,VALV.PISTON,(FOX SHOCK)

2200618

Unavailable

-

SHOCK,GAS,IFS,IFP,CAM

7041494

Unavailable

1

BUSHING,SHAFT END Substituted by 5431540

5432040

$24.99

2

RING,SPRING PRELOAD,ADJ

5432304

Unavailable

3

BEARING,SPHERICAL

3513506

$64.59

4

O-RING,(FOX),SP

1500093

$7.27

5

RING,SNAP,(FOX SP)

7710446

$6.23

6

REDUCER,(FOX),(SP)

1500092

Unavailable

7

RETAINER,SPRING,SLOTTED

5020618

$24.99

8

BUMPER,JOUNCE

5410855

$39.19

9

Screw

1500018

$5.56

9

O-RING,DRUM OUTER

1500022

Unavailable

10

PISTON

1500011

$59.99

11

O-RING,ENDCAP,FOX,(10)

1500003

$8.89

12

RING,PISTON,FLOATING,FOX

1500006

$19.99

13

O-RING,(10).103W-1.299ID (Outer)

1500020

$10.63

13

O-RING INNER (10) (Inner)

1500021

$10.99

13

Screw

1500070

$6.39

13

BALL, (FOX)

1500071

$6.76

13

WIPER INNER Substituted by 1500266

1500025

$24.27

13

WIPER,CLR,OUTER

1500024

Unavailable

13

BEARING ASM,(.900 W/BLEED)

1500090

Unavailable

14

EYELET, BILLET (1.137")

1500129

Unavailable

15

PLATE,TOP OUT

1500017

$20.22

16

DAMPER,PISTONRING,FOX

1500002

$31.99

17

BUSHING,BACKUP

1500015

$6.76

18

NUT,LOCK

1500016

$12.79

19

CAP, BODY

1500073

Unavailable

20

O-RING,.103W-1.549ID

1500108

$10.99

21

VALVE ASM,AIR Substituted by 1500014

1500072

Unavailable

21

VALVE ASM,AIR

1500014

$69.99

21

Screw

1500019

$6.39

21

O-RING,OUTER

1500023

$2.84

22

BUSHING, (1.16 IN.)

5020613

Unavailable
