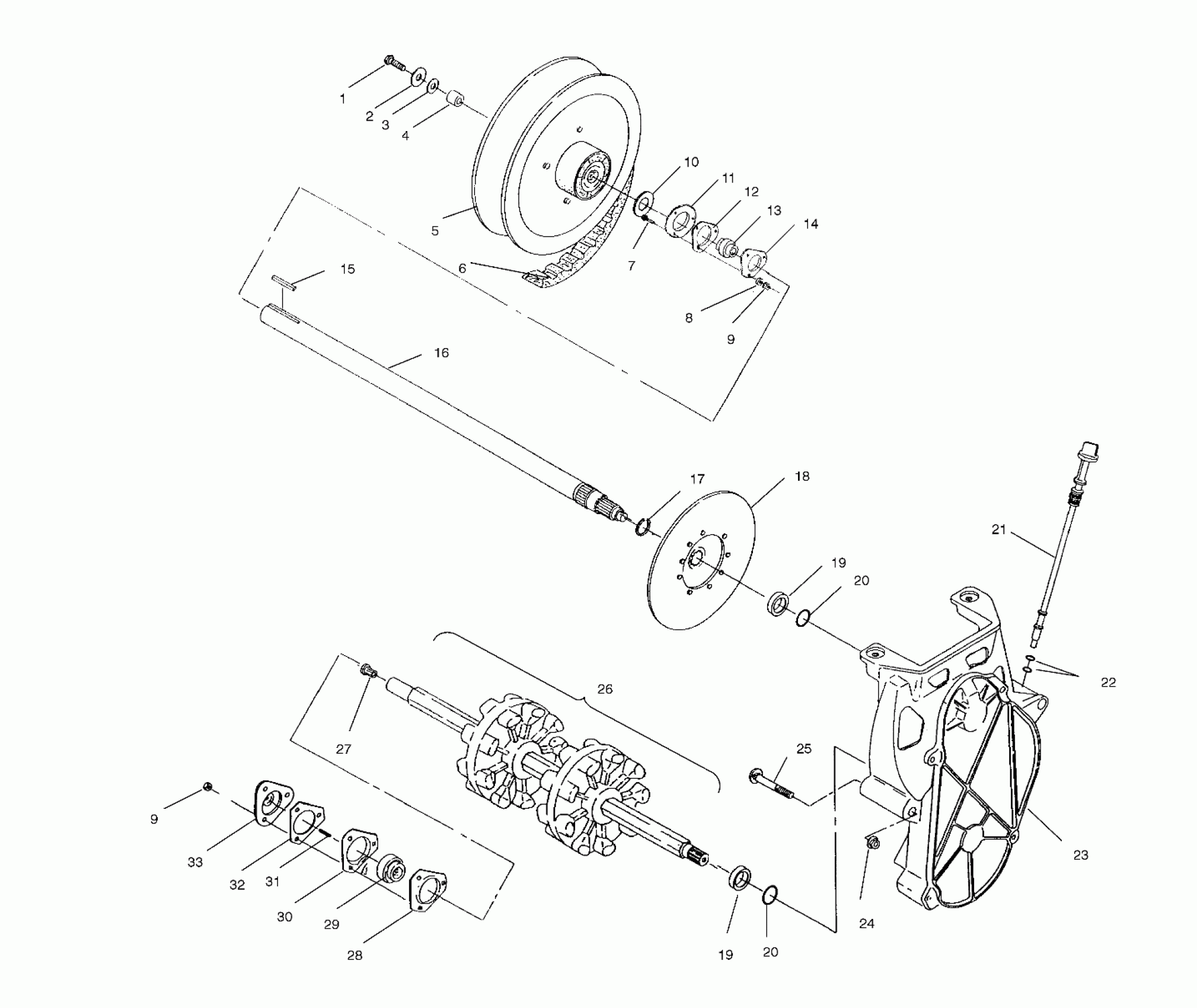

Polaris 600 XC (TWIN) - 0971758 DRIVE TRAIN - 0971758 (4941984198b009) Diagram

#

Description
Price

1

BOLT(10)

7515301

Unavailable

2

WASHER FLAT(10)

7555701

$3.99

3

WASHER(10)

7555734

Unavailable

4

SPACER

5020291

Unavailable

5

Driven Clutch (See Pg C2 for Details)

-------

Unavailable

6

BELT,DRIVE(5)

3211066

$109.99

7

BOLT(10) Substituted by 7512377

7512394

Unavailable

8

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

9

NUT-5/16-18 NYLOK-Y

7542324

$1.49

9

NUT-5/16-18 NYLOK-Y

7542324

$1.49

10

WASHER SPECIAL(10)

7556509

Unavailable

11

FLANGE RD,RELUBE W/ZERK

5241359

$32.37

12

GASKET,JACKSHAFT,BLK.

5811095

$2.41

13

BEARING

3514525

$31.99

14

FLANGETTE

5222751

$16.44

15

KEY SQUARE(10)

7721103

$5.65

16

JACKSHAFT ASM,15 SPL (Incl. 13,17)

1332207

Unavailable

17

RING, RETAINING(10)

7710422

$3.99

18

DISC ASM, BRAKE

1910086

Unavailable

19

SLEEVE, SEAL

5020588

$23.99

19

SLEEVE, SEAL

5020588

$23.99

20

O RING,(10)

5410613

$1.99

20

O RING,(10)

5410613

$1.99

21

DIPSTICK Substituted by 1332143

5431419

Unavailable

22

O-RING

5410675

$1.60

23

Chaincase, Top Mount Vented (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

24

NUT(10)

7542423

$3.99

25

BOLT(10)

7515428

$4.79

26

DRIVESHAFT ASM,W/BRG,2 DR,WIDE Substituted by 1590284 (Incl. 27-29)

1590268

Unavailable

27

BUSHING METAL SPEEDO

3280019

$11.99

28

FLANGETTE ASM,,W/ SCREWS Substituted by 1012945

1012434

Unavailable

29

BEARING,LUBE. Substituted by 3514525

3514526

$31.75

30

FLANGETTE Substituted by 5243529

5241178

$13.75

31

SQ. KEY SPEEDOMETER,(10)

3280017

$13.75

32

GASKET,DRIVE ADAPTOR,(10)

5830012

$2.41

33

ADAPTER,DRIVE,W/ZERK

3280116

$101.17
