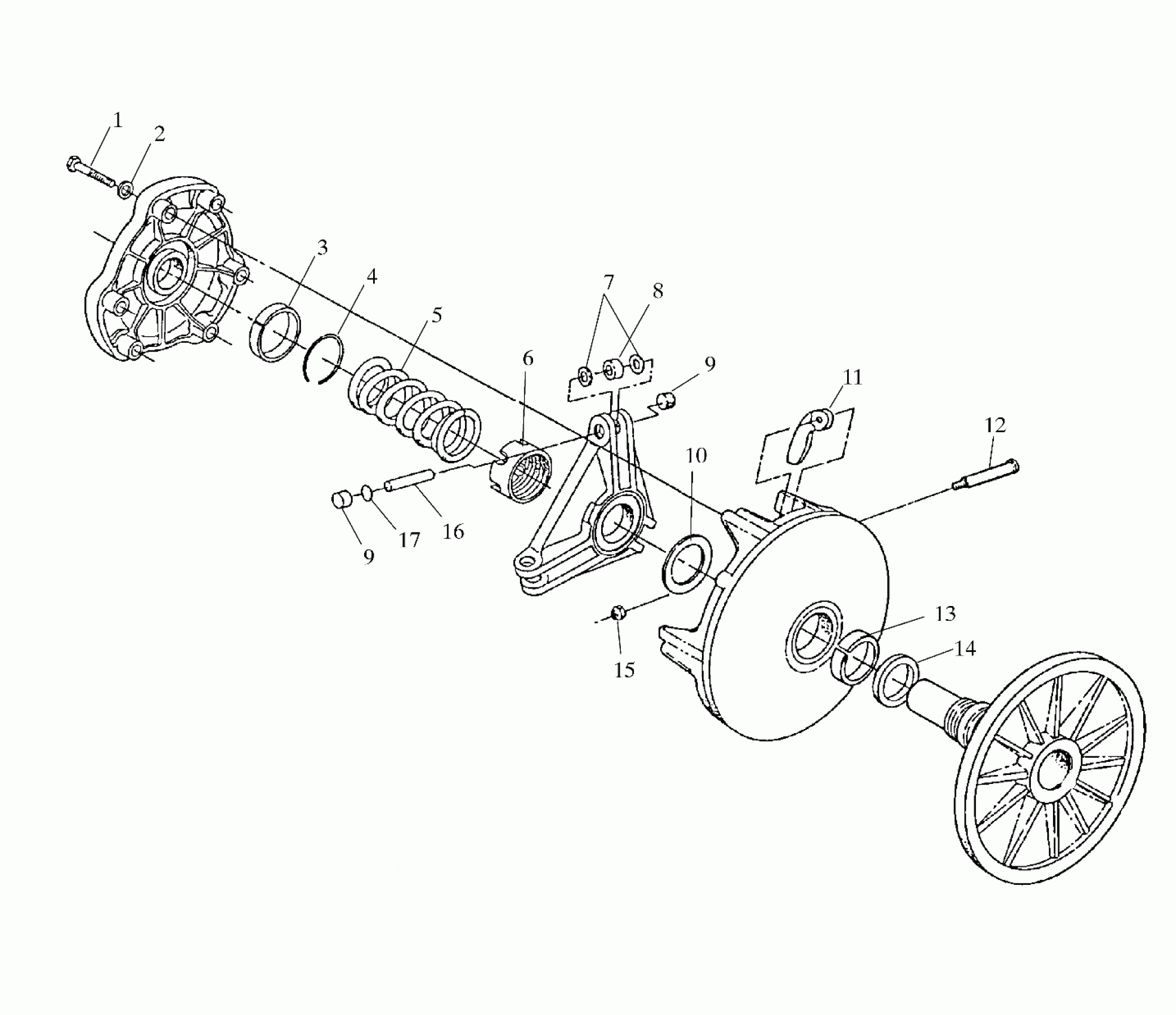

Polaris 600 XC (TWIN) - 0971758 DRIVE CLUTCH - 0971758 (4941984198c001) Diagram

#

Description
Price

-

KIT,CLUTCH UPDATE (Incl. 7-11,15)

2200386

$161.89

-

CLUTCH,BASIC#67(DRIVE) Substituted by 2201887 (Less 6,14)

1321694

Unavailable

1

BOLT,(10)

7512265

$3.99

2

LOCK WASHER(10)

7552801

$1.59

3

COVER,BEARING,GARMAX

3576516

$28.32

4

RING-RETAINING,COVER

7710417

$1.49

5

SPRING,(DK.BLU) Substituted by 7041781

7041526

$56.65

6

NUT-JAM

5020425

$23.99

7

WASHER,MULTILUBE

5430945

$1.59

8

ASM-ROLLER AND BUSHING

1321457

$40.46

9

BUTTON, GUIDE,(10)

5430445

$6.39

9

BUTTON, GUIDE,(10)

5430445

$6.39

10

SPACER(10) (.050mm)

5210754

Unavailable

10

SPACER(10) (.020mm)

5210752

Unavailable

10

SPACER(10) (.032mm)

5210753

Unavailable

11

WT/BUSH.ASM,10-58(3)

1321588

$40.46

12

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

13

SLEEVE, BEARING

3576502

$23.99

14

INSERT-MOVEABLE

5010188

$7.99

15

NUT-JAM

5020425

$23.99

16

PIN-ROLLER

5020422

$2.39

17

Kit - Shim, Drive Clutch

2200387

$24.27
