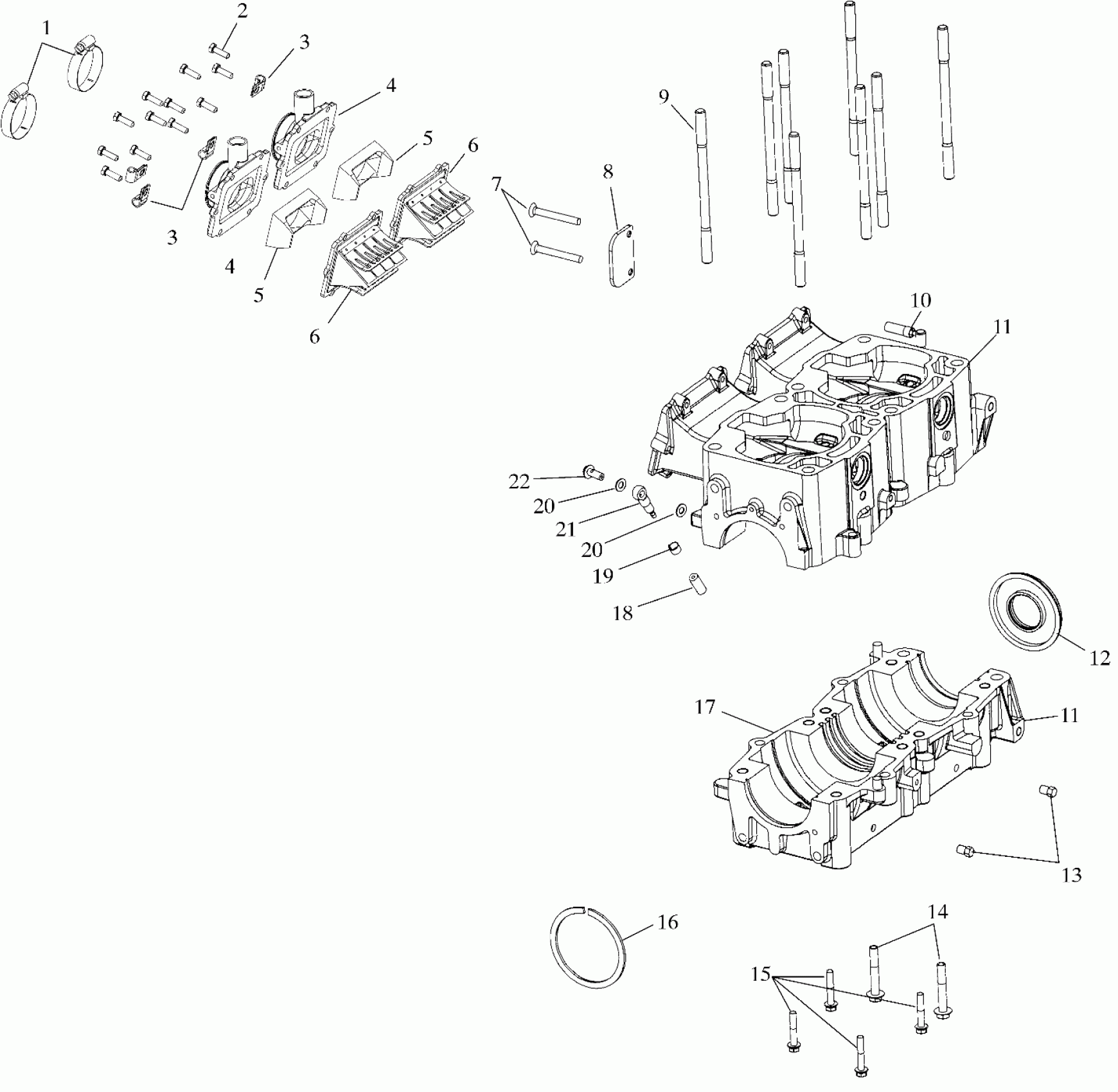

Polaris 600 XC (TWIN) - 0971758 CRANKCASE - 0971758 (4941984198c005) Diagram

#

Description
Price

1

CLAMP

7080408

Unavailable

2

SCREW(10)

7516822

$2.39

3

CLAMP,HOSE(10)

7080683

$2.39

3

CLAMP,HOSE(10)

7080683

$2.39

4

ADAPTER,CARB

1253146

Unavailable

4

ADAPTER,CARB

1253146

Unavailable

5

STUFFER,REED BLOCK Substituted by 5433151

5432104

Unavailable

5

STUFFER,REED BLOCK Substituted by 5433151

5432104

Unavailable

6

REEDVALVE ASM. Substituted by 1201743

1201689

Unavailable

6

REEDVALVE ASM. Substituted by 1201743

1201689

Unavailable

7

SCREW,(10)

7516821

Unavailable

8

PLATE,STOP,TORQUE

5131319

Unavailable

9

STUD,CYL.FLANGE,152MM,SPS

5131677

Unavailable

10

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37

11

CRANKCASE,KIT,TWIN,SNO Substituted by 2201135 (Incl. 9,11,17,14,15)

2200897

$764.99

11

CRANKCASE,KIT,TWIN,SNO Substituted by 2201135 (Incl. 9,11,17,14,15)

2200897

$764.99

12

SEAL,FLANGED Substituted by 5411394

5411148

$29.99

13

PLUG Substituted by 7052311

7051529

$15.99

14

SCREW ,(10)

7516919

Unavailable

15

SCREW(10)

7516732

$1.59

16

RING,RETAINING,(10)

7710441

Unavailable

17

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

18

FUELLINE,3MMX7MM

8450061-600

Unavailable

19

CLAMP(10)

7080603

$1.59

20

WASHER,FLAT,(10)

7555998

$1.49

20

WASHER,FLAT,(10)

7555998

$1.49

21

VALVE,CHECK,OIL PUMP

7052160

Unavailable

22

SCREW(10)

7517319

$19.99
