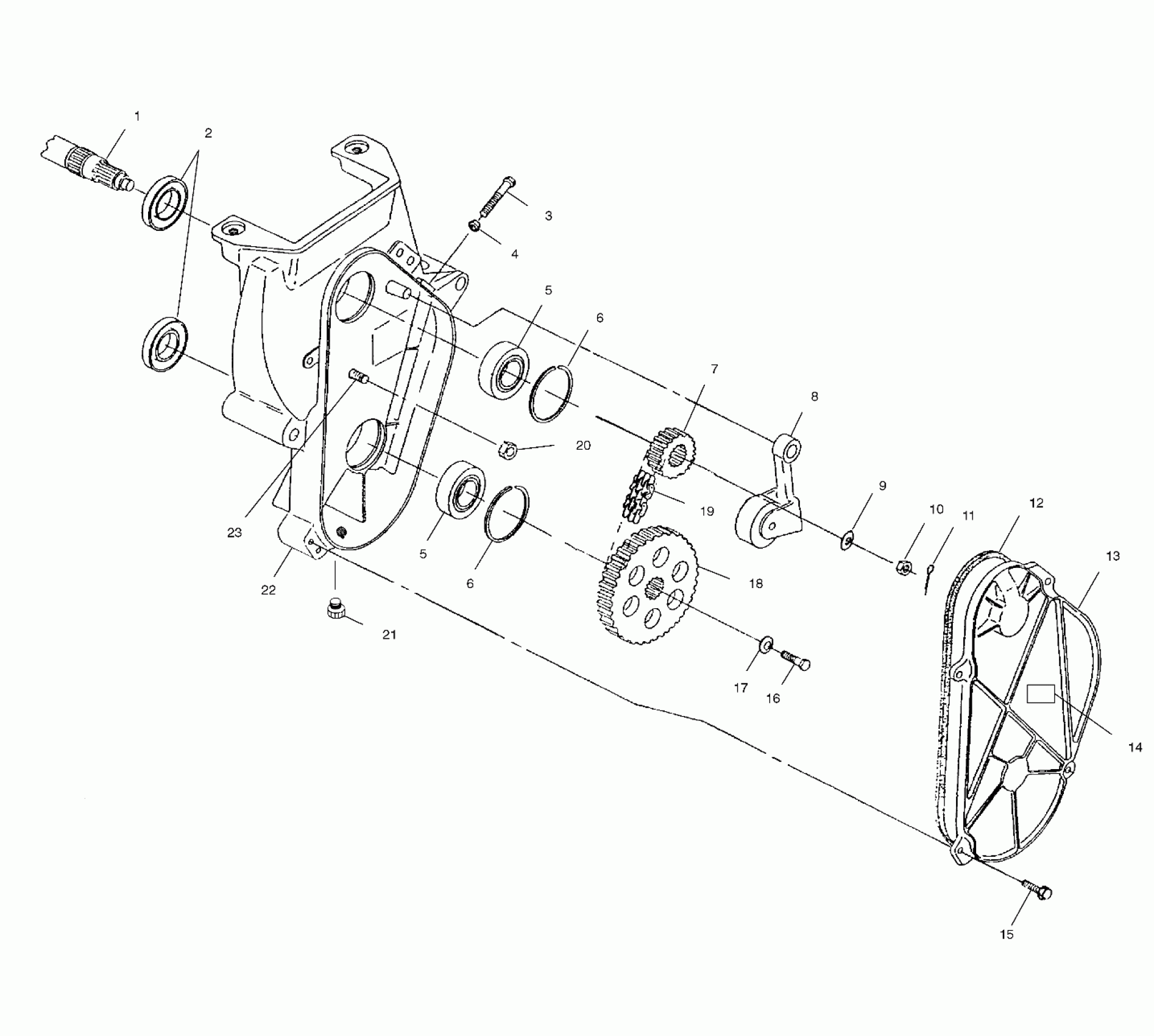

Polaris 600 XC (TWIN) - 0971758 CHAINCASE - 0971758 (4941984198b008) Diagram

#

Description
Price

1

Jackshaft, 15T Spline (See Pg. B9, Ref. 16)

-------

Unavailable

2

SEAL-OIL

3610030

$20.22

3

SCREW(10)

7515511

$3.99

4

NUT(10)

7542404

$1.59

5

BEARING

3514308

Unavailable

5

BEARING

3514308

Unavailable

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

7

SPKT,22T,3/4W,15T SPLINE Substituted by 2900006

3221089

Unavailable

8

PIN,CHAIN TIGHTENER

7662210

Unavailable

8

TIGHTENER ASM,GEARCASE Substituted by 1332213 (Includes the following)

1332096

$159.99

8

BEARING

3553002

$11.99

8

BLOCK,TIGHTENER [No Longer Available]

5630122

Unavailable

8

WHEEL,C/C IDLER

5630123

Unavailable

8

WASHER THRUST(10)

7558702

$1.59

9

WASHER, SLOTTED(10)

7571620

$7.19

10

NUT

7542811

Unavailable

11

COTTER PIN(10)

7661401

$1.49

12

GASKET,CHAINCASE,LONG

5411207

$20.22

13

COVER,CHAINCASE

5630691

$115.99

14

DECAL,CAUT.SPKT/CHAIN

7076764

Unavailable

15

SCREW(10)

7512242

$2.39

16

SCREW(10)

7515350

$3.97

17

WASHER(10)

7571618

$6.39

18

SPKT,41T,3/4W,15T SPL,HYVO Substituted by 2900014

3222095

Unavailable

19

CHAIN,70 Substituted by 3221115

3224069

Unavailable

20

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

21

PLUG(10)

7052115

$5.65

22

CHAINCASE,VENTED

5131455

Unavailable

23

BOLT(10)

7515477

$34.99
