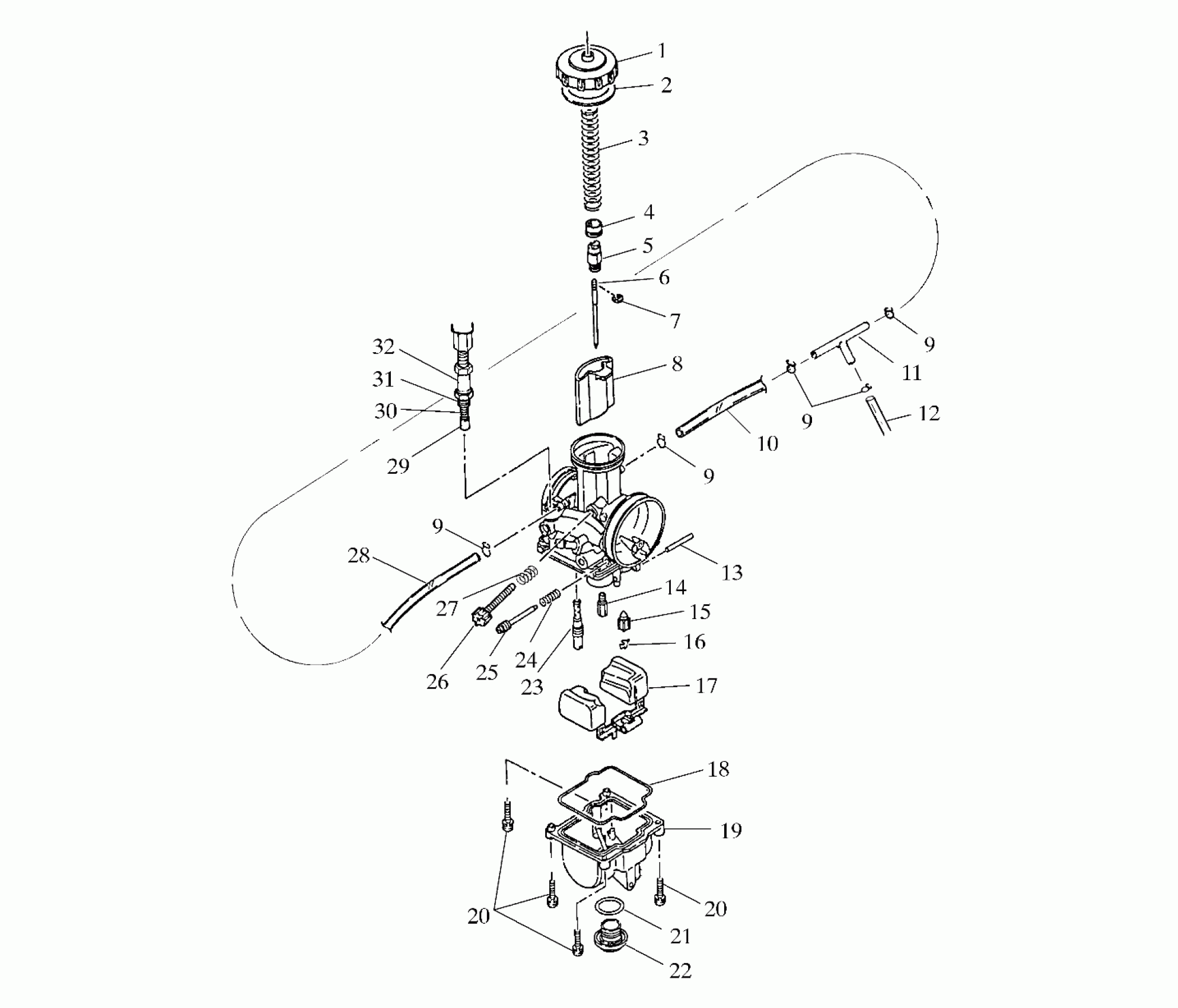

Polaris 600 XC (TWIN) - 0971758 CARBURETOR - 0971758 (4941984198c009) Diagram

#

Description
Price

-

CARB ASM,39MM,PWK,XC,195MJ [No Longer Available] (Incl. 1-32)

1253186

Unavailable

1

TOP ASM, CARB.

3050224

$26.98

2

GASKET

3050225

$2.15

3

SPRING,THROTTLE

3050228

Unavailable

4

COLLAR

3050238

Unavailable

5

HOLDER, CABLE

3050223

$27.94

6

JET NEEDLE (R-1370G)

3050220

Unavailable

7

CLIP,JET NEEDLE,(10)

3050222

Unavailable

8

VALVE,THROTTLE,KHN.

3050234-K02

Unavailable

9

CLIP

3050233

Unavailable

9

CLIP

3050233

Unavailable

9

CLIP

3050233

Unavailable

9

CLIP

3050233

Unavailable

10

PIPE,BOWL VENT

3050242

Unavailable

11

T-JOINT

3050243

$12.39

12

VENT,BOWL,(SHORT)

3050248

Unavailable

13

PIN,FLOAT

3050232

$8.89

14

MAIN JET,KHN.

3050235-182

$8.17

15

VALVE,FLOAT

3050218

$40.46

16

CLIP,FLOAT VALVE

3050229

$8.79

17

FLOAT,KHN.

3050213

Unavailable

18

GASKET,FLOAT BOWL

3050215

$20.22

19

BOWL,FLOAT,CARB.

3050214

Unavailable

20

SCREW,FLOAT BOWL,(10)

3050230

Unavailable

20

SCREW,FLOAT BOWL,(10)

3050230

Unavailable

21

O-RING,PLUG SCREW

3050217

$4.84

22

PLUG,SCREW

3050216

Unavailable

23

PILOT JET,KHN.

3050219-50

$9.91

24

SPRING

3050227

Unavailable

25

SCREW,AIR ADJUST

3050226

Unavailable

26

ADJUSTER,IDLE Substituted by 3050257

3050236

$32.37

27

SPRING

3050237

Unavailable

28

PIPE,BOWL VENT

3050231

Unavailable

29

VALVE,STARTER

3050212

Unavailable

30

SPRING

3050240

Unavailable

31

O-RING

3050241

Unavailable

32

CAP,STARTER

3050239

Unavailable
