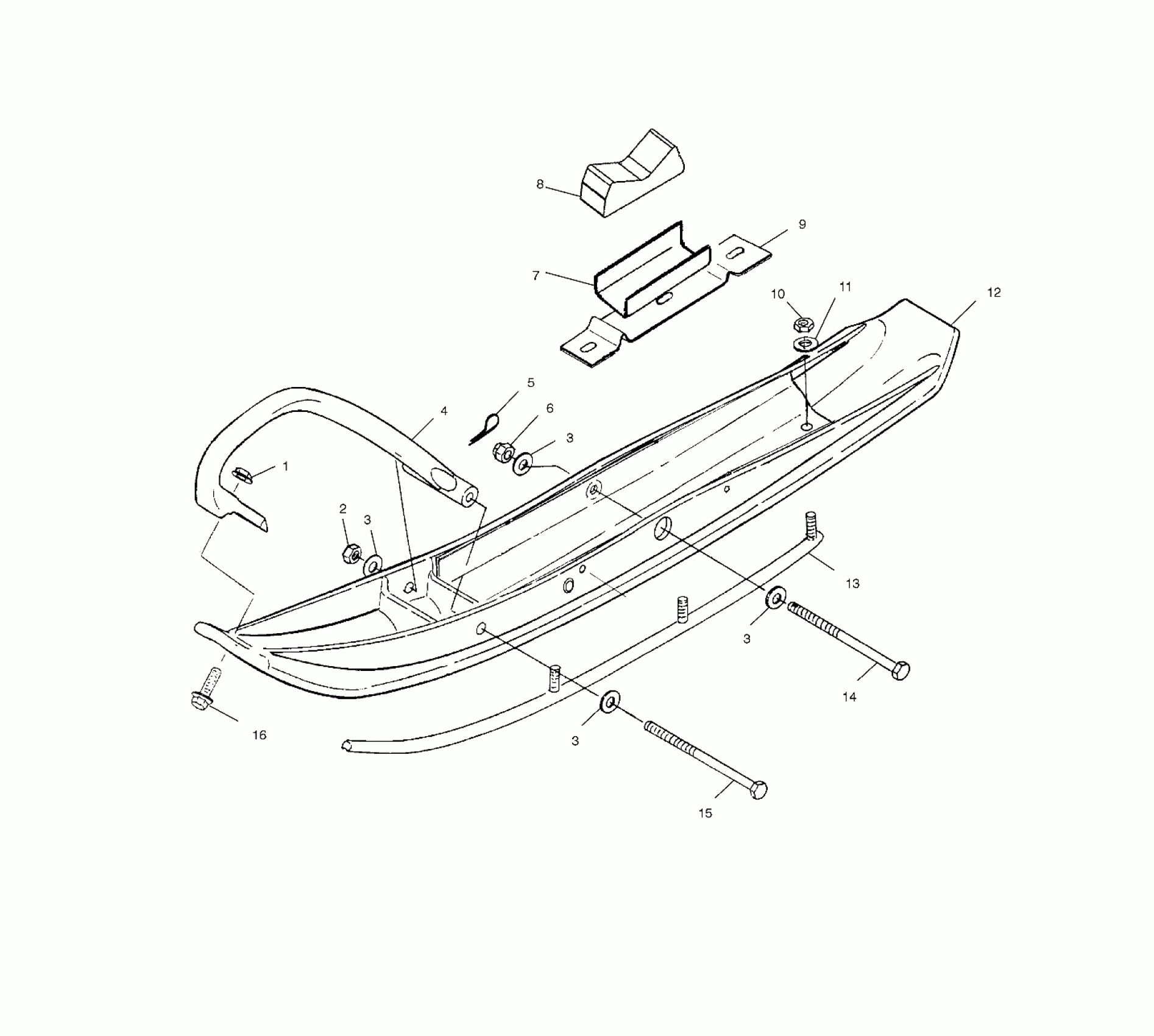

Polaris 600 XC SP - S02NP6ESA SKI - S02NP6ESA/SB (4967546754B01) Diagram

Description

Price

Nut, Flange

7542321

$1.49

Nut, Nylok

7542439

$1.49

WSHR-.813X.406X.105-Y

7555832

$2.39

WSHR-.813X.406X.105-Y

7555832

$2.39

WSHR-.813X.406X.105-Y

7555832

$2.39

WSHR-.813X.406X.105-Y

7555832

$2.39

Toe, Ski

5434165-070

$40.46

Pin, Cotter

7661209

Unavailable

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

Retainer, Ski, Rubber

5243824

$27.99

Stop, Rubber (If built before 9/28/01)

5411094

Unavailable

Stop, Rubber (If built after 9/28/01)

5412018

$24.27

Support, Ski, Rubber

5241912-067

Unavailable

NUT-5/16-18 NYLOK-Y

7542324

$1.49

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

Ski, Black

1820821-070

Unavailable

Kit, Skag, 3", 90 Degree (Pair)

2872566

$55.99

Screw

7512596

$19.99

Bolt

7515514

$7.19

Screw

7515307

$3.99
