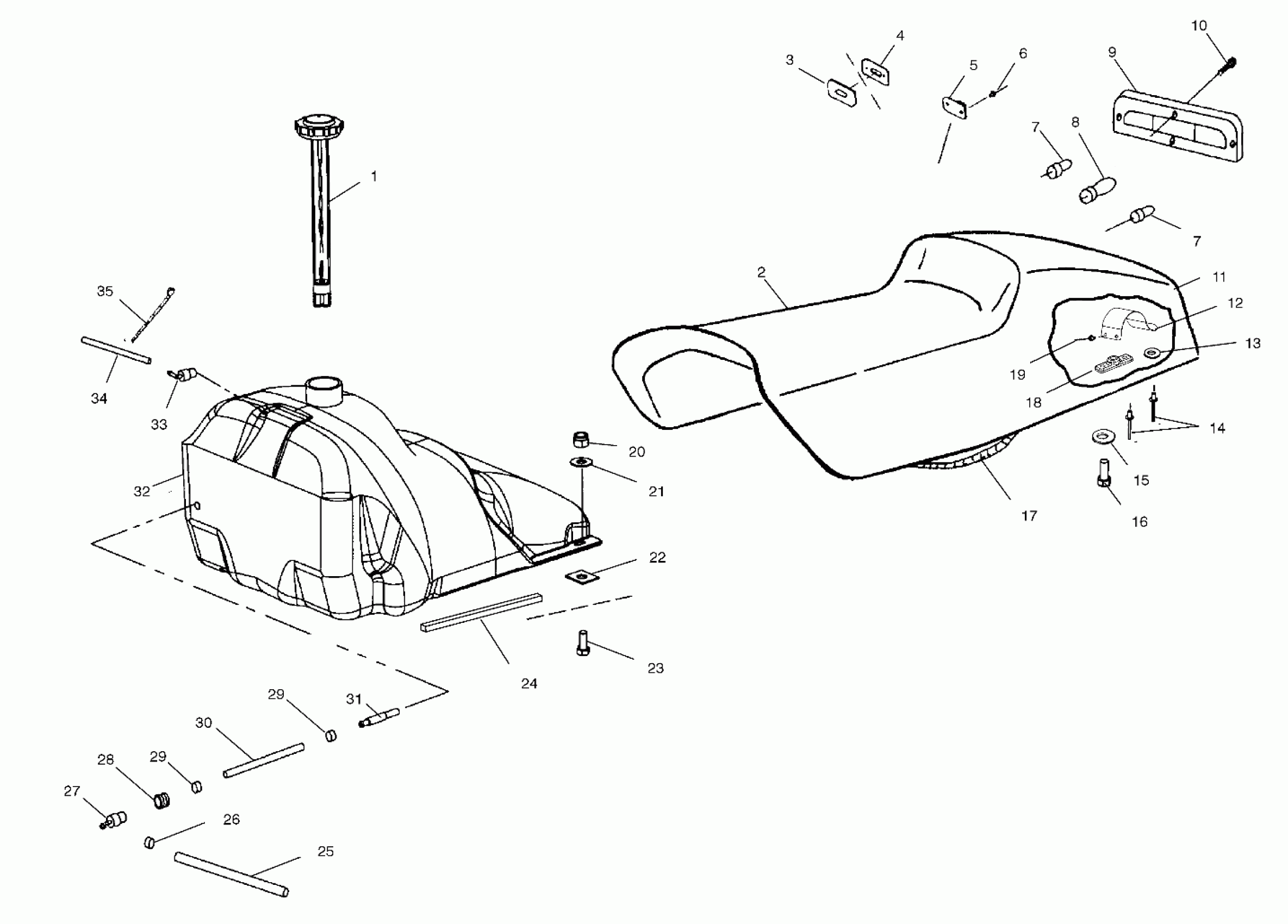

Polaris 600 XC SP - S02NP6ESA SEAT and GAS TANK - S02NP6ESA/SB (4967546754A04) Diagram

#

Description
Price

1

Cap w/Gauge, Fuel

1240066

Unavailable

2

Asm., Seat Cushion (A)

2682755

Unavailable

2

Cover, Seat (A)

2682756

Unavailable

2

Asm., Seat Cushion (B)

2682752

Unavailable

2

Cover, Seat (B)

2682753

Unavailable

3

Grommet, Relatch, Bottom

7080550

Unavailable

4

Grommet, Relatch, Top

7080549

Unavailable

5

Relatch w/Hole, Twist Lock

7080548

Unavailable

6

Rivet

7621337

$1.49

7

Bulb, Taillight

4030024

$4.84

7

Bulb, Taillight

4030024

$4.84

8

Bulb, Brakelight

4030045

Unavailable

9

Lens

5430423

Unavailable

10

Screw

7511840

Unavailable

11

Housing, Taillight

5433341

Unavailable

12

Retainer, Tool Pouch Clip

5243185

$10.63

13

WASHER

7555727

$1.49

14

RIVET

7621319

$1.49

15

Washer, Flat

7558301

$1.49

16

Screw

7515159

$4.79

17

Harness, Taillight

2460399

Unavailable

18

NUT, SEAT

5631194

$4.99

19

RIVET

7621472

$1.49

20

Nut, Nylok

7542122

$1.49

21

WASHER, FLAT

7555960

$3.99

22

Nut, Speed

7670021

$6.99

23

BOLT, CARRIAGE

7512193

$2.39

24

FOAM-SEAL,REAR COOLER

5810947

$4.03

25

Line, Fuel

8350018-600

Unavailable

26

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

27

Fitting, 90 Degree

7052259

Unavailable

28

GROMMET, FLANGED

7052028

$6.39

29

RING, COMPRESSION

7080402

$1.60

29

RING, COMPRESSION

7080402

$1.60

30

LINE, FUEL

8350019-600

Unavailable

31

Pickup, Fuel

7052301

$12.94

32

Asm., Fuel Tank (Incl. 31-33)

2520266

$267.99

33

Fitting, 90 Degree

7052095

$4.79

34

LINE, FUEL

8450061-600

Unavailable

35

CABLE TIE, RELEASABLE

7080804

$3.22
