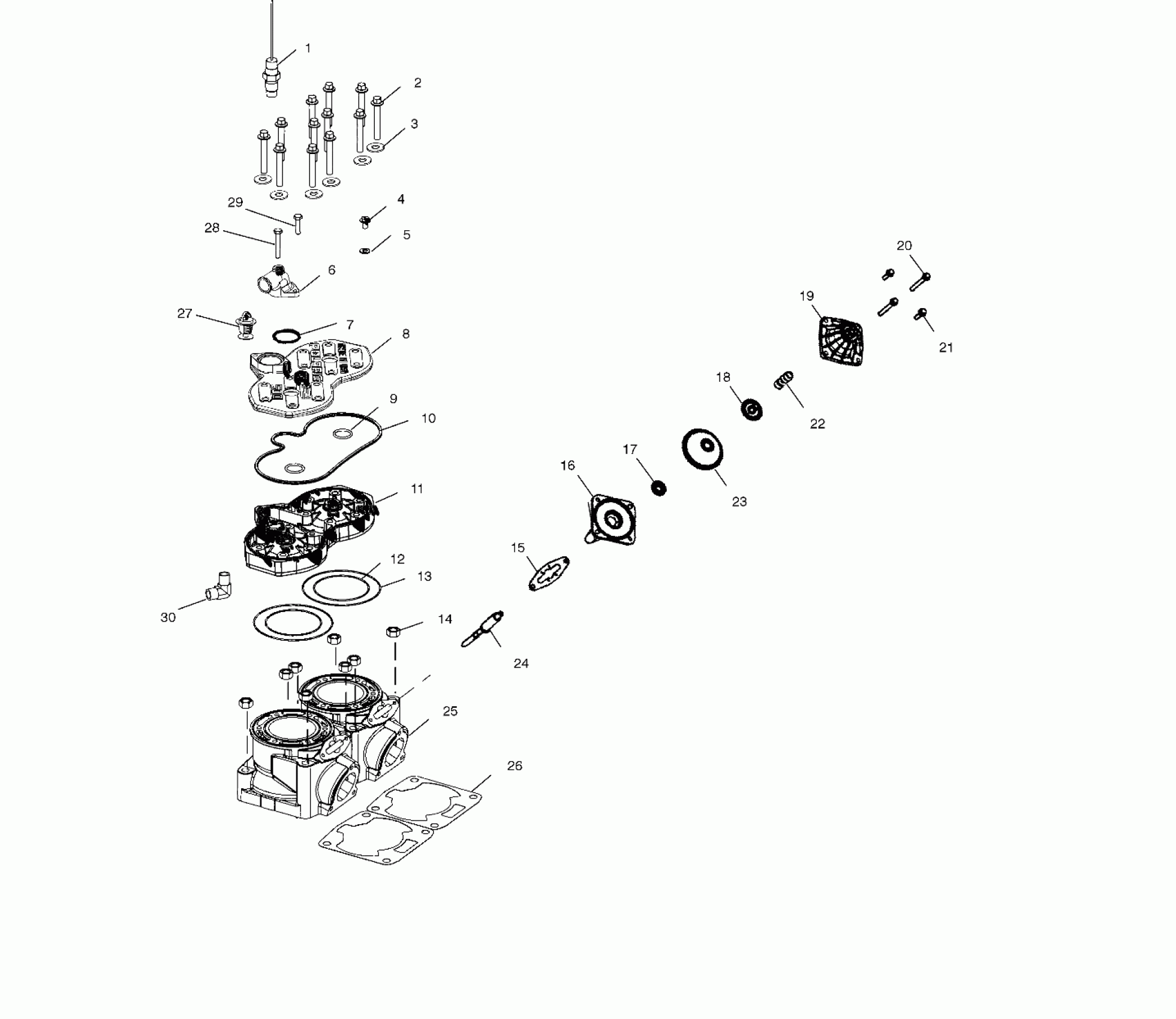

Polaris 600 XC SP - S02NP6ESA CYLINDER - S02NP6ESA/SB (4967546754C07) Diagram

#

Description
Price

1

Sensor, Thermistor

4010614

$36.41

2

SCREW

7517533

$4.79

3

Washer

7556082

$7.19

4

SCREW

7517679

$13.59

5

WASHER, FLAT

7555998

$1.49

6

Cover, Thermostat

5630992

Unavailable

7

O-Ring

5411521

$24.19

8

Cover, Head

5631199-366

Unavailable

9

O-RING

5411411

$1.49

10

Seal, Rubber Head Cover

5411465

$32.37

11

Head, Cylinder

3021278

Unavailable

12

O-RING

5410932

$20.22

13

O-RING

5411359

$15.99

14

NUT

7547013

$1.99

15

Gasket

5812350

$6.46

16

Base, Exhaust Valve

1202216

Unavailable

17

Washer

5132950

Unavailable

18

Cap

5631152

Unavailable

19

Housing

5434175

Unavailable

20

SCREW

7516820

$5.59

21

SCREW

7517932

$3.99

22

Spring

7041704-03

$28.32

23

Bellows

5412056

$44.51

24

Valve, Guillotine

1201958

Unavailable

25

Cylinder

3021257

$531.75

26

Gasket, Cylinder Base

5811916

$24.99

27

Thermostat

7052267

$40.46

28

SCREW

7516818

$5.59

29

SCREW

7516822

$2.39

30

Fitting

7052221

Unavailable
