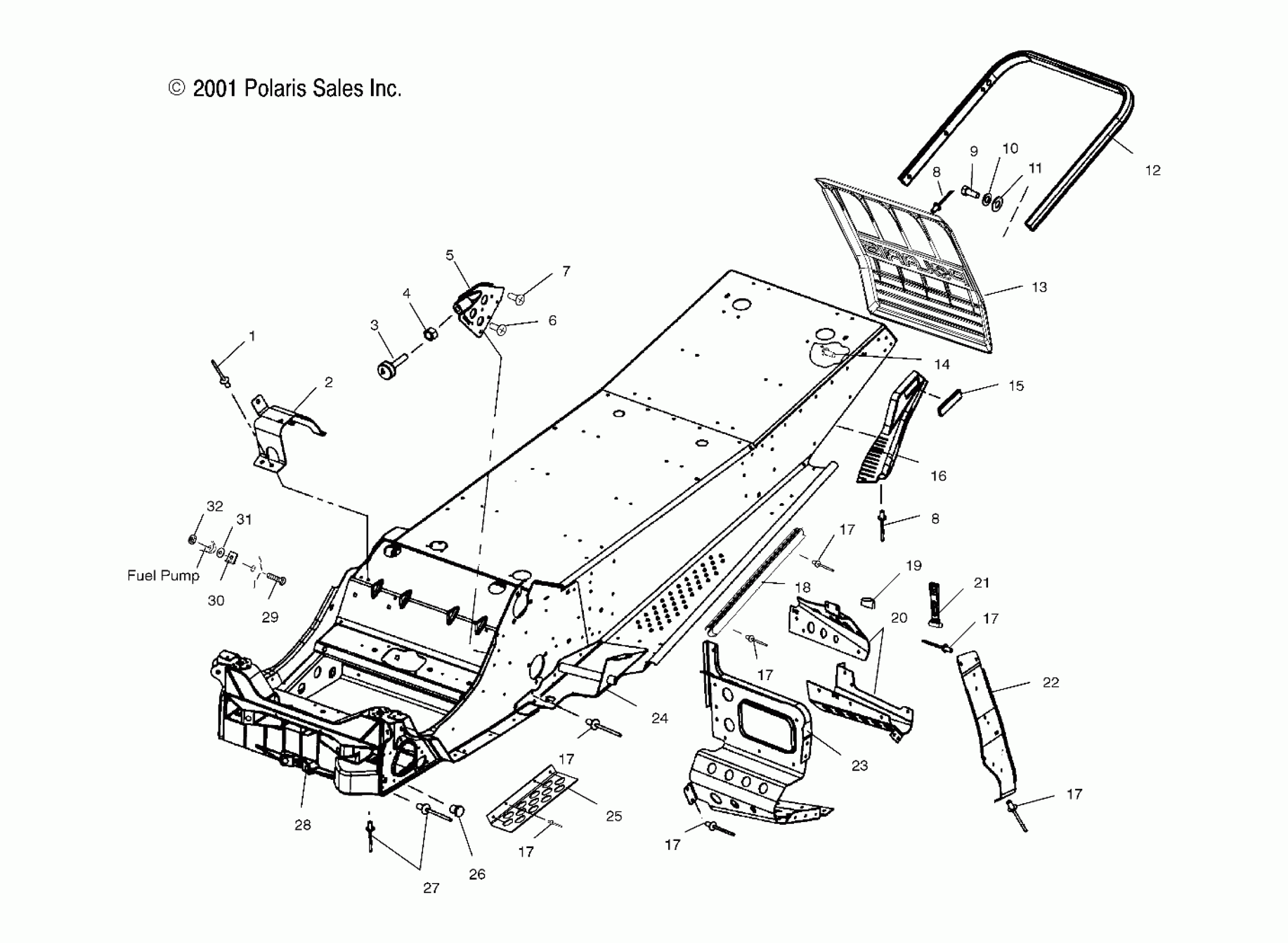

Polaris 600 XC SP - S02NP6ESA CHASSIS - S02NP6ESA/SB (4967546754A03) Diagram

#

Description
Price

-

Asm., Chassis

1013686-309

Unavailable

1

Rivet

7621432

$1.49

2

Bracket, Jackshaft Shield

5245003

$13.19

3

Stop, Torque

3021104

$20.22

4

NUT

7542404

$1.59

5

Stop, Torque

1013379

Unavailable

6

Screw

7517854

$5.59

7

SCREW

7517632

$5.59

8

RIVET

7621472

$1.49

8

RIVET

7621472

$1.49

9

BOLT

7512240

$3.99

10

WASHER, SPRING LOCK

7552801

$1.59

11

Washer, Flat

7558301

$1.49

12

Bumper, Rear

2632165-309

Unavailable

13

Flap, Snow

5433961-1106

Unavailable

14

Screw

7517441

$2.39

15

Reflector, Red

2670133

$5.75

16

Skirt, Snow, LH

2632443-070

$64.75

16

Skirt, Snow, RH

2632444-070

$55.99

17

RIVET-3/16-.090-.290

7661637

$1.49

17

RIVET-3/16-.090-.290

7661637

$1.49

17

RIVET-3/16-.090-.290

7661637

$1.49

17

RIVET-3/16-.090-.290

7661637

$1.49

17

RIVET-3/16-.090-.290

7661637

$1.49

17

RIVET-3/16-.090-.290

7661637

$1.49

17

RIVET-3/16-.090-.290

7661637

$1.49

18

Brace, Tunnel Roll

5245118

$23.81

19

EXTRUSION, CLUTCH GUARD

5521238

$6.46

20

Mount, Console, Toe Clip, LH

5245457

Unavailable

20

Mount, Console, Toe Clip, RH

5245458

Unavailable

21

STRAP-AIRBOX TOP

5433150

$24.27

22

Support, Footrest, LH

5242741

$19.68

22

Support, Footrest, RH

5242742

$32.37

23

Footrest, LH

5245288

Unavailable

23

Footrest, RH

5242740

Unavailable

24

Kit, Trailing Arm Mount, LH

2202059

$213.00

24

Kit, Trailing Arm Mount, RH

2202060

Unavailable

25

Guard, Belt

5245836

$30.99

26

PLUG, HOLE

7080416

$5.65

27

Rivet

7661639

Unavailable

28

Bulkhead, Front

5132292

$115.99

29

Bolt, Carriage

7512275

$3.99

30

Nut, Speed

7670021

$6.99

31

Washer, Nylon

7555932

$2.39

32

Nut, Nylok

7542122

$1.49
